Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Specifications
Brand Name :
CSYHT
Model Number :
OTB-036
Certification :
ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
50pcs
Price :
EXW Unit price: US$4.8/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
15days
Packaging Details :
carton
Material :
PP inpact resistant plastic
Application :
FTTH FTTB FTTX Network,Telecommunication,Telecom,WANS,CATV System
Product name :
Fiber Optic Terminal Box,8 core FTTH Outdoor Wall mounted Fibre Distribution Box
Color :
White or Black
Type :
Distribution Box,8 ports,FC/SC/LC,Wall mounted,Waterproof outdoor
Adapter :
FC/SC/LC
Working temperature :
-40℃~65℃
Name :
Splitter box for FTTH
Ip grade :
Outdoor IP65
Warranty :
1 year
Installation method :
wall-mounted or pole mount.
Dimension :
195.5x240x77.5mm
Description

Description:

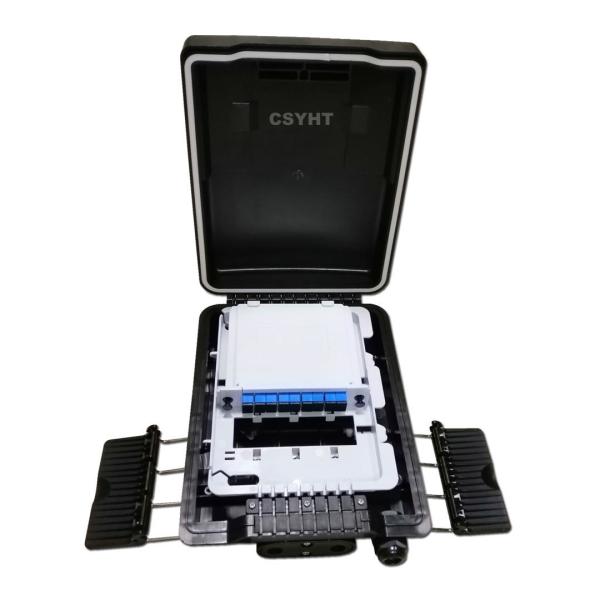

OTB-P036 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 1pc fiber adapter plate of 9 SC simplex adapter port or 1pc plastic splitter cassette 1x8. It support 8 drop cable output and cable entry without cutting.

Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

Specification:

Model Dimension(mm) Material Adapter port Splicing capacity Cable port Application
OTB-P036 195.5x240x77.5 PP 9 SC simplex 8 fibers 1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole Outdoor wall mounted or pole mounted

Accessories:

Item Product Specification Qty
1 Heat protection shrinkable sleeve 45mm*2.3*1.0 As per using capacity
2 Cable tie 3*120mm white 4 pcs
3 Countersunk Screws C type 4*30 metal 4 pcs
4 Plastic Expansion Pipe Φ6mm plastic white 4 pcs

Packing information:

Carton size Qty/Carton Weight
56.5x42.5x39cm 16PCS per carton 0.78kgs

Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

YHT--one stop solution for fiber optic distribution & termination products.

YHT--Your honest team!we are ready for you!
