Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Steel Sliding 1U 19 12cores ODF Fiber Optic Patch Panel
Specifications
Brand Name :
CSYHT
Model Number :
ODF-RS-S1U
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
300pcs/day
Delivery Time :
10days
Packaging Details :
Carton
Product Name :
Fiber Patch Panel
Fiber Cores :
12-48 Cores
Material :
Cold-rolled Steel
Adapter :
SC,FC,LC,ST...
Color :
Grey/Black/White
Dimension :
430*220*42.7mm
Description

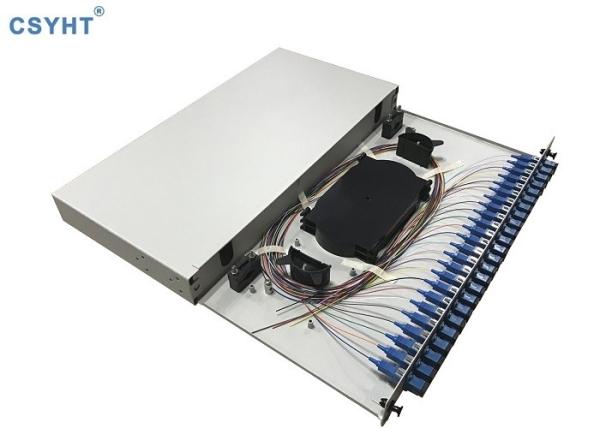

Mini Size Sliding 1U 19" 12-48 Cores Fiber Optic Patch Panel ODF

ODF-RS-SIU is Mini. size slidable fiber optic patch panel with 1U height, 19inch. It is used in fiber optic cabinet and provides an economical way for fiber splicing, cable connection and management.

Features:

  • Small size, light weight and reasonable structure
  • Rack mount 19”or 21” for Cabinet
  • Color: white/black/grey
  • Material: Cold-rolled steel, with excellent electrostatic painting.
  • Adapter plate: dismountable, easy to operate
  • Adapter: SC,FC,LC,ST...
  • Fiber core:12core/24core/Max:48core

Application:

  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV

Specification:

Model Splice tray Qty Capacity Dimension(mm) Packing
ODF-RS-S1U 1-2

12~24 fibers

If LC, max 48 fibers

 430*220*42.7 5sets/carton

Configuration Table:

Item Part Name Detail Quantity Remark
1 Patch Panel 430*220*42.7mm 1 mm
2 Splice Tray OST-005-A 1~2 White or Black
3 Cable Spool FDW-001 2 White or Black
4 Protect Sleeve L=60MM * As per using capacity
5 Pigtail (Optional) * (Optional)
6 Adapter (Optional) * (Optional)
7 Adapter Plate 427.8*39.8*12mm 1 Dismountable
