Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
Specifications
Brand Name :
CSYHT
Model Number :
OTB-S96
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
300pcs/day
Delivery Time :
10days
Packaging Details :
Carton
Product Name :
192 Fibers Optic Distribution Box
Material :
ABS Plastic
Dimension :
397 ×467×125
Adapter Port :
96 Ports
PG21 cable port :
8 pcs
Waterproof :
IP65
Description

Waterproof IP65 ABS Material 192 Fibers 8pcs PG21 cable port FTTH Fiber Terminal Box

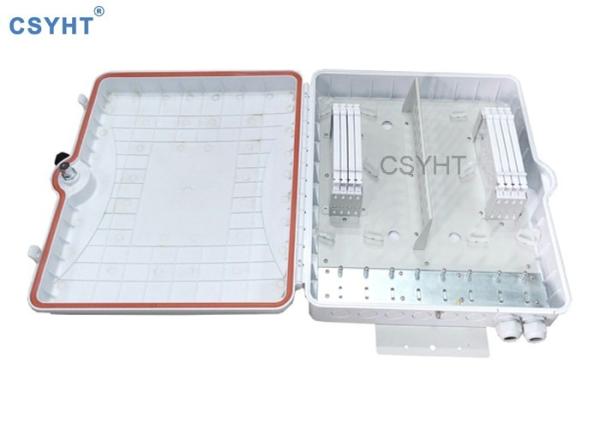

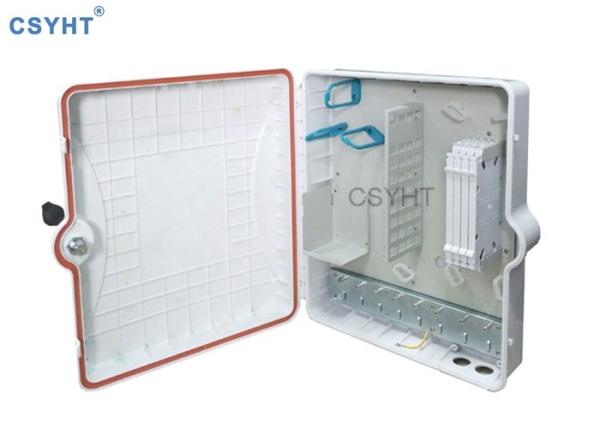

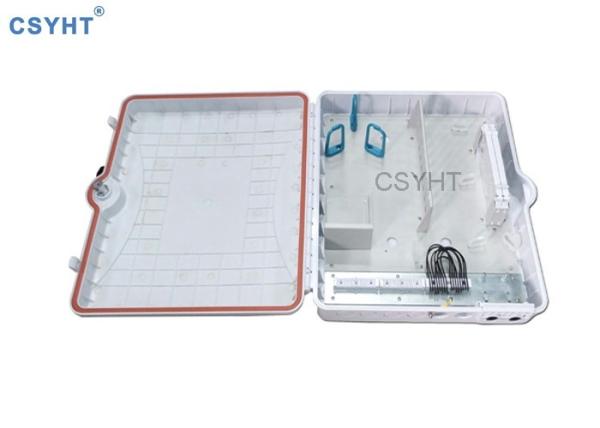

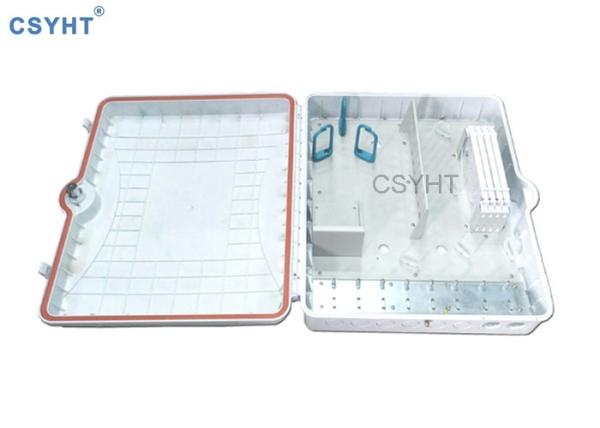

OTB-S96 is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.

OTB-S96

  • Different adapter panel, SC, LC, ST, FC ...
  • 96 adapter port
  • Max. 8pcs splice tray for 192 fiber splicing (splice tray in both side, each side 4pcs)
  • Max. 8pcs PG21 cable port
  • Waterproof IP65
  • Wall mounted or pole mounted application

OTB-S96-A

  • Different adapter panel, SC, LC, ST, FC ...
  • Support cable entry without cutting
  • Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
  • 72 adapter port
  • Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)
  • Max. 6pcs PG21 cable port + 2 rubber cable port
  • Waterproof IP65
  • Wall mounted or pole mounted application

OTB-S96-B

  • Different adapter panel, SC, LC, ST, FC ...
  • Support cable entry without cutting
  • Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
  • Support FTTH drop cable entry/exist
  • 72 adapter port
  • 2pcs splice tray for 48 fiber splicing (splice tray in one side)
  • Max. 6pcs PG21 cable port + 2 rubber cable port
  • Waterproof IP65
  • Wall mounted or pole mounted application

Specification:

Model Adapter port

Dimension(mm)

W*H*D

 Splitter space
OTB-S96 96 397 ×467×125 No
OTB-S96-A 72 Max. 8pcs 1:8 or 1pc 1:64 box type splitter
OTB-S96-B 72

Drawings:(mm)

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box

Waterproof IP65 ABS 192 Fibers PG21 Cable FTTH Terminal Box
