12 Port Fiber Optic Distribution Unit Load PLC Splitter In FTTH / GPON Project
12 Port Fiber Optic Distribution Unit Load PLC Splitter In FTTH / GPON Project
12 Port Fiber Optic Distribution Unit Load PLC Splitter In FTTH / GPON Project
12 Port Fiber Optic Distribution Unit Load PLC Splitter In FTTH / GPON Project
Specifications
Brand Name :
CSYHT
Model Number :
OTB-0212-A
Certification :
ROHS
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300pcs per day
Delivery Time :
about 6 days
Packaging Details :
carton
Size :
209.5x260.5x95mm
Material :
PP plastic
Adapter :
12 SC simplex
Capacity :
12 fibers
Cable port :
2 cable entry, 12 drop cable output
Application :
pole mounted, wall mounted outdoor
Price :
Negotiable
Description

Outdoor 12 port plastic fiber optic terminal box load PLC splitter in FTTH , GPON project

Description:

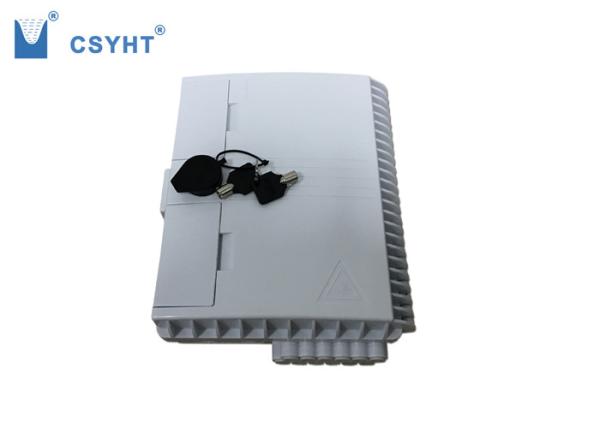

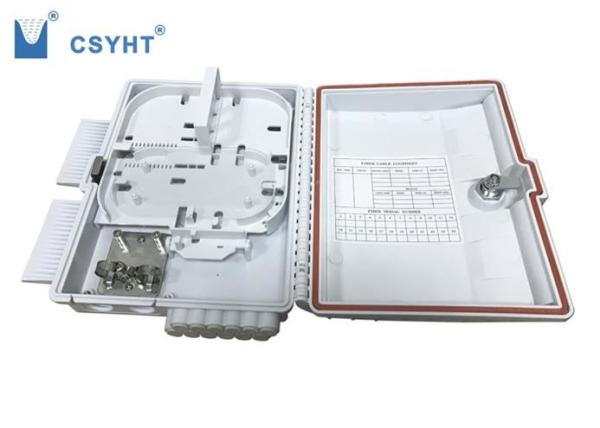

Fiber optic terminal box OTB-0212-A is FTTH box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution.

Features:

Material: PP plastic.

Can accommodate 1x4,1x8 PLC splitter.

Rainfall resistant, IP65 outdoor using.

Can load 12pcs LC, FC, ST, SC … adapters.

Wall mounting and pole mounting application.

The cover with 2 reinforcing closing pieces, easy to open and close.

2pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;

or 2pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);

12pcs exit ports for FTTH drop cable.

Specification:

Model Capacity Dimension Remark
OTB-0212-A 12 ports 209.5x260.5x95mm 1 rotary splice tray

Application

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Accessory:

12 Port Fiber Optic Distribution Unit Load PLC Splitter In FTTH / GPON Project
