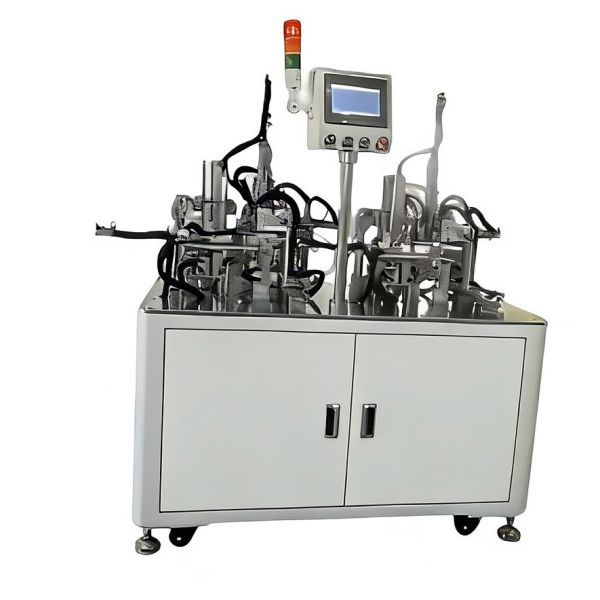

Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications
Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications
Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications
Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications
Specifications
Brand Name :
FINTEECH
Certification :
CE
Place of Origin :
CHINA
Function :
Tag threading and attaching
Application Industry :
Garment, textile, packaging
Operation Mode :
Semi-automatic / Fully automatic options
Machine Type :
Automatic
Control System :
PLC control with touch screen
Maintenance :
Easy to maintain with modular parts
Material Compatibility :
Fabric, paper, plastic tags
Threading Method :
Needle threading
Safety Features :
Emergency stop button, safety guards
Description

This machine is suitable for the automatic punching, stringing, looping and counting of various paper hangtags, all completed in one process.

Application industries: clothing, gifts, food, wine, card labels, etc. It features simple operation, safety and high production efficiency, and is compatible with threads such as cotton thread, gold thread, silver thread, nylon thread and elastic cord.

  1. Higher technical coverage and optimization rate compared to similar machines on the market.
  2. The main body adopts a steel frame structure with heat treatment and quenching-tempering process, which is sturdy and complete, ensuring stable operation of the equipment.
  3. The machine's motor, touch screen, slide rail, PLC, air cylinder, etc. are all genuine brands from well-established companies.
Main Parameters
No. Main Parameter Unit Specification
1 Speed H 1500pcs/h
2 Max. Hangtag Size mm 90*150mm
3 Min. Hangtag Size mm 40*50mm
4 Applicable String Diameter mm Normal string: 0.3-2.1mm; Ribbon: ≤4mm (customizable)
5 Applicable String Length mm 100-200mm after knotting (customizable)
6 Applicable Hangtag Thickness g 200 to 2000
7 Applicable Hangtag Hole Size mm 4mm or above
8 Machine Dimensions m 1.5m*0.9m*1.5m
9 Machine Weight Kg 420kg
10 Machine Power & Voltage W 0.5kW, 220V

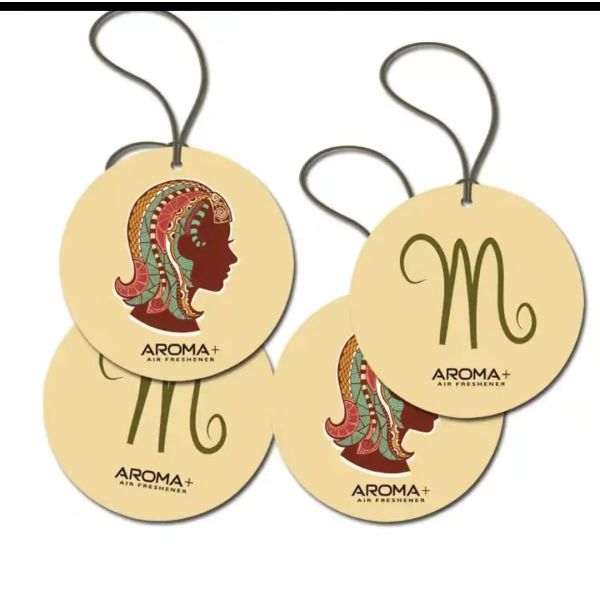

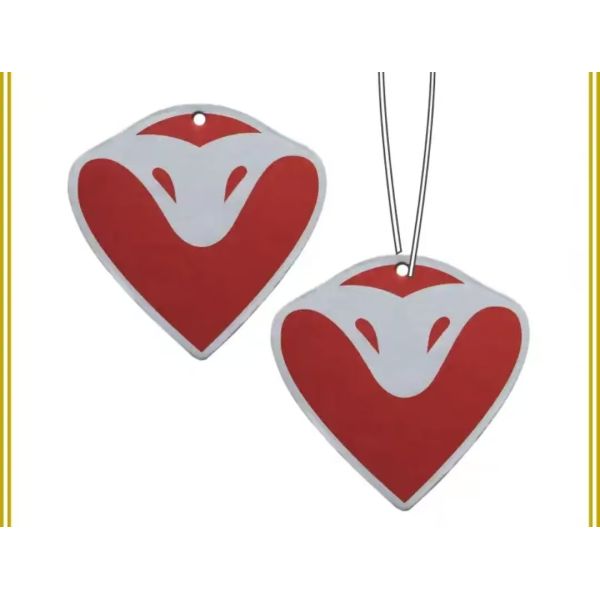

Sample display

Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications Automatic Hangtag Stringing & Looping Machine / Automatic Tag Threading Machine Capable of Handling Multiple Thread Sizes and Types for Versatile Tagging Applications
