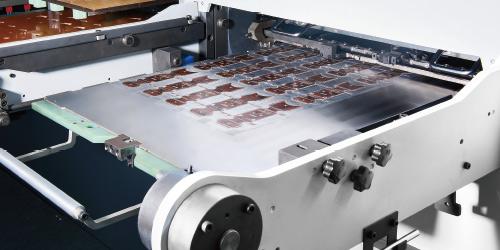

Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Automatic Die Cutting and Creasing Machine
Specifications
Brand Name :
FINTEECH
Model Number :
FB-HT1060CE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Type :
Packaging Machine
Condition :
New
Power Source :
Electric
Exporting Countries :
UK, Italy, Mexico, Turkey, etc.
Other Name :
paper die cutter
Color :
Silvery
Packaging Type :
Case
Description
Technical Parameter
Model FB-HT1060CE
Maximum Sheet Size 1060*760mm
Minimum Sheet Size 400*350mm
Maximum Cutting Size 1060*745mm
Minimum Width of Double Cuts 5mm
Minimum Gripper Margin 9~17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080*770mm
Stock Range Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm
Die Cutting Accuracy ≤±0.075mm
Max.die Cutting Force 300T
Max.working Speed 9000s/h
Max. feeder pile height 1630mm(With wooden pallet)
Max. delivery pile height 1480mm(With wooden pallet)
Machine Dimensions 8017*4518*2502mm (L*W*H) (L: paper prepared track included, W: platform included)
Net Weight of Machine 18000kg
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min
Partial Introduction
Automatic Die Cutting and Creasing Machine
Feeder

Feeder based on advanced technical platform feeding precisely and consistently of wide range stock from 90g/m2 thin paper to 1000g/m2 cardboard as well as micro flute corrugated board.

Automatic Die Cutting and Creasing Machine
Double sheet detector

Ultrasonic double sheet detector without touching the paper, hence scratch free, reliable and quick set up.

Automatic Die Cutting and Creasing Machine
Mould quick locking device

Adopt center-line system and quick locking device to save make ready time.

Automatic Die Cutting and Creasing Machine
Plate setting

5mm hardened cutting plate or 4+1mm sandwich plate on top 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment for quick set up and easy make ready.

Automatic Die Cutting and Creasing Machine
Gripper bar

Gripper bars made of cutting edge latest technology running extremely smoothly, thanks to the unique design of large motion angle eccentric worm gear drive system.

Automatic Die Cutting and Creasing Machine
Gripper edge waste removal device

Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.

Automatic Die Cutting and Creasing Machine
Germany vaccum pump

Germany Becker oil free blower and vacuum pump.

Automatic Die Cutting and Creasing Machine
Auto lubrication system

Adopt concentrated auto lubrication system to make sure the driven parts working better.

Automatic Die Cutting and Creasing Machine
Auto non-stop collecting device

Main collecting device and Auto non-stop collecting device switch automatically without any operation, which make the machine more efficient.

Automatic Die Cutting and Creasing Machine
Advanced tooling lockup

Advanced quick tooling set up system ensures fast job change over and hence high productivity at both stripping stations.

Automatic Die Cutting and Creasing Machine
Variable speed worm gear drive device

Worm gear and toggle mechanism allows large motion angle hence minimum number and size of nicks at reasonable max. production speed.

Process Flow
Automatic Die Cutting and Creasing Machine Automatic Die Cutting and Creasing Machine
