Fully Automatic Cardboard Box Making Machine
Fully Automatic Cardboard Box Making Machine
Specifications
Condition :
New
Type :
Packaging Machine
Color :
Silvery
Packaging Type :
Case
Brand Name :
FINTEECH
Model Number :
FB-HT1060CE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Packaging Material :
Wood
Power Source :
Electric
Other Name :
paper die cutter
Description
Fully Automatic Corrugated Box Making Machine
Product Overview

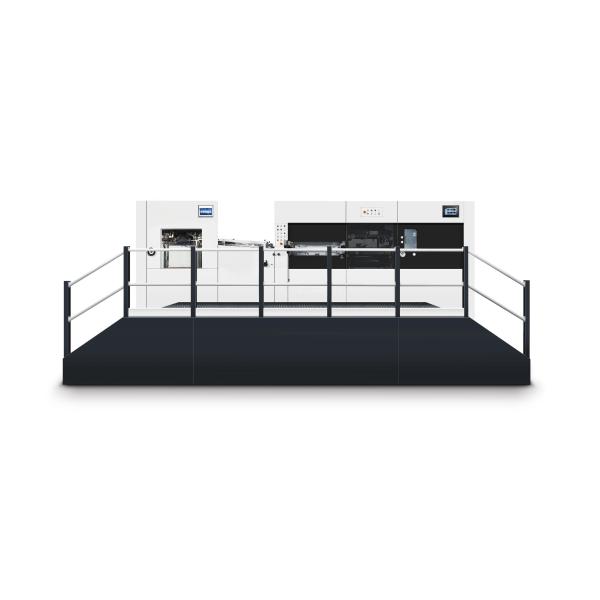

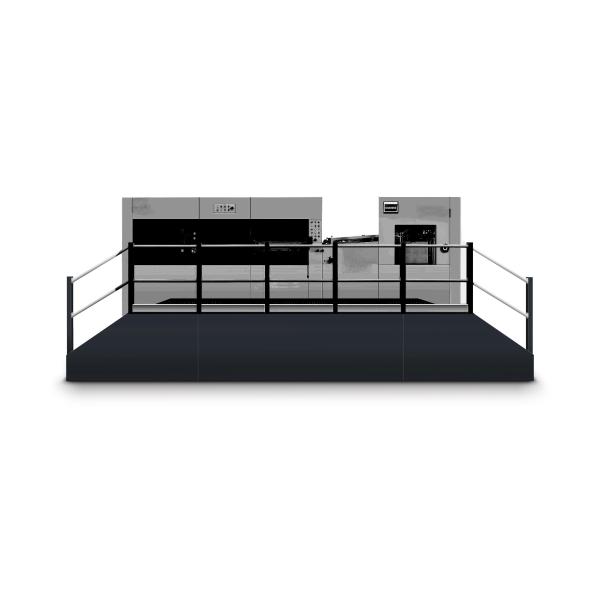

The FB-HT1060CE Die Cutting Machine is a high-precision packaging solution designed for efficient corrugated box production. This electric-powered machine delivers exceptional accuracy and performance for various packaging applications.

Key Specifications
Model FB-HT1060CE
Maximum Sheet Size 1060×760mm
Minimum Sheet Size 400×350mm
Die Cutting Accuracy ≤±0.075mm
Max. Working Speed 9000 sheets/hour
Max. Die Cutting Force 300T
Technical Details
Stock Range Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm
Main Motor Power 15KW
Total Power Required 23KW
Machine Dimensions 8017×4518×2502mm (L×W×H)
Net Weight 18000kg
Air Requirement Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min
Key Features
  • High-precision cutting with accuracy ≤±0.075mm
  • Versatile material handling from thin paper to thick corrugated board
  • High-speed operation up to 9000 sheets per hour
  • Robust construction with 300T cutting force capacity
  • Electric-powered for consistent, reliable performance
  • Compact footprint relative to cutting capacity
General Attributes
Type Packaging Machine
Condition New
Power Source Electric
Color Silvery
Packaging Wooden case
Export Countries UK, Italy, Mexico, Turkey, etc.
