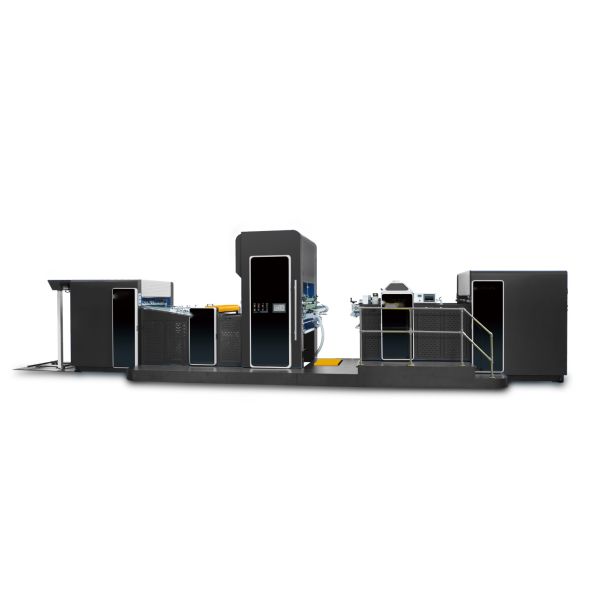

Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
Specifications
Brand Name :
FINTEECH
Model Number :
GS-110
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Automatic Grade :
Automatic
Total Weight :
11000kgs
Power :
60kw
Other Name :
paper die cutter
Machine Size :
11750*2600*3000mm/12000*2600*3000mm
Cutting Speed :
1000 sheets/hour
Description
Instruction machine:

This machine is professional film lamination machine with intelligent function, it is high speed, high quality, high stability. Which can used for different printed paper material with high quality surface after printing processing, it can choose with according to the user's requirement with different configuration. Round knife slitting with standard, Hot knife slitting for optional, chain knife slitting for optional , it can slit different material, such as OPP,PET,PVC.

Technical Parameters:
Model GS-110 series High Speed Intelligent Film Lamination Machine
Size GS-110-S | GS-110-M | GS-110-L
Max sheet size 1080*1000mm | 1080*1200mm | 1080*1450mm
Min sheet size 300*350mm | 300*350mm | 300*350mm
Paper thickness 80-500 g/㎡ | 80-500 g/㎡ | 80-500 g/㎡
Speed 20-120m/min | 20-120m/min | 20-120m/min
Machine total Power 60 KW | 60 KW | 60 KW
Machine size 11750*2600*3000mm | 11750*2600*3000mm | 12000*2600*3000mm
Weight 11000 KGS | 11000 KGS | 11000 KGS
Standard configuration main function
  • Round Knife cutter
  • Hole drilling by sandpaper
  • Single power Removing roller
  • Automatic paper correction
  • Non-stop feeding system
  • Automatic collecting final product
  • Feeding with stacking automatically
Optional Chain knife cutting | Chain knife cutting | Chain knife cutting
Optional Hot knife cutting | Hot knife cutting | Hot knife cutting
Optional Double power removing roller | Double power removing roller | Double power removing roller
Optional Brush power removing | Brush power removing | Bush power removing
Machine More details:
Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter MachineCustomizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
Application:
Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
Workshop:
Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
