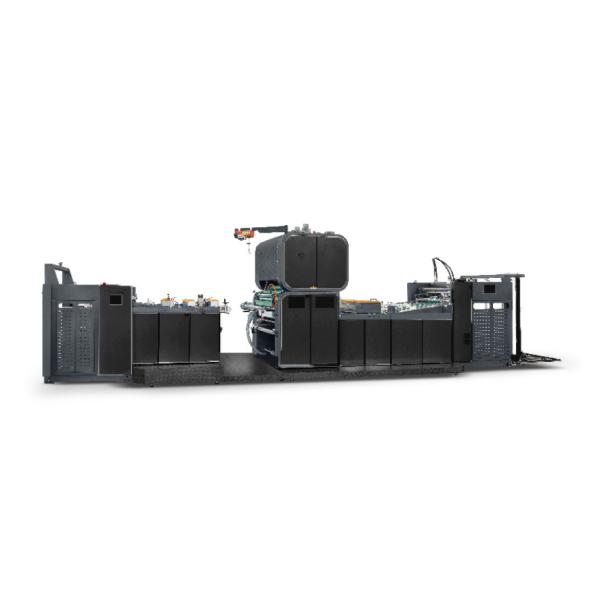

High Speed Auto Lamination Machine With Cutting System
High Speed Auto Lamination Machine With Cutting System
Specifications
Brand Name :
FINTEECH
Model Number :
YS -S108
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Pre Stacker :
Yes
Two Times Lamination :
Yes
Auto Feeding :
Yes
Engraving Roller :
Yes
Loading :
in factory
Name Card :
Application
Description
High Speed Film Lamination Machine (YS-SR108 Series with Hot-Knife Cutter)
Key Features
Attribute Value
Pre Stacker Yes
Two Times Lamination Yes
Auto Feeding Yes
Engraving Roller Yes
Loading In Factory
Name Card Application Yes
Product Description

This professional high-speed film lamination machine delivers exceptional quality and stability for various printed paper materials. It provides superior surface finishing after printing processes and offers multiple configuration options to meet specific user requirements.

Technical Specifications
Model YS-S108-S YS-S108-M YS-S108-L
Max Sheet Size 1080×1000mm 1080×1200mm 1080×1450mm
Min Sheet Size 300×350mm 300×350mm 300×350mm
Paper Thickness 80-500 g/㎡ 80-500 g/㎡ 80-500 g/㎡
Speed 20-100m/min 20-100m/min 20-100m/min
Total Power 60 KW 60 KW 60 KW
Machine Dimensions 11800×2370×3000mm 11800×2370×3000mm 12300×2370×3000mm
Weight 10000 KG 10000 KG 10500 KG
Standard Configuration
  • Round Knife cutting system
  • Double power removing roller
  • Non-stop feeding system
  • Automatic final product collection
  • Automatic stacking feeding system
  • Automatic paper correction (M & L models)
Optional Features
  • Chain knife cutting system (YS-SL108 series)
  • Hot knife cutting system (YS-SR108 series)
  • Full-page direct push type configuration
  • Brush powder removing system
Machine Details
High Speed Auto Lamination Machine With Cutting System

1. Automatic collecting final product: Do not need to change the collecting holder and Automatically collecting the final product.

Applications
High Speed Auto Lamination Machine With Cutting System
Workshop Environment
High Speed Auto Lamination Machine With Cutting System
High Speed Auto Lamination Machine With Cutting System
