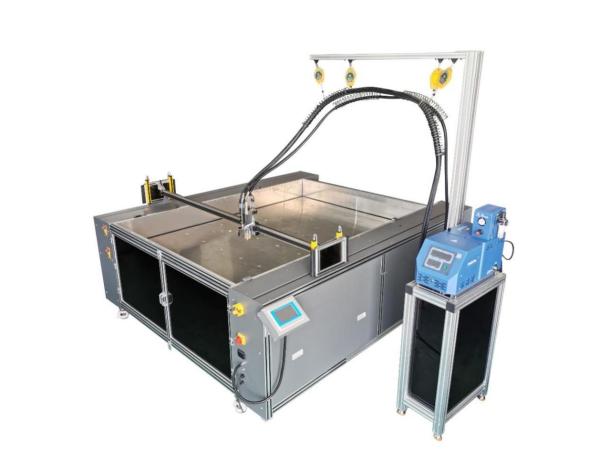

Compact CNC Glue Dispenser Machine Energy Efficient Low Maintenance Safety
Compact CNC Glue Dispenser Machine Energy Efficient Low Maintenance Safety
Specifications
Place of Origin :
CHINA
Brand Name :
FINTEECH
Certification :
CE
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Type :
Automatic
Glue Width :
50-300mm
Dimensions :
L2000*W1000*H1500mm
Power Consumption :
3.5KW
Gluing Speed :
100-200m/min
Application :
Carton Box Gluing
Features :
Automatic Feeding, Gluing, Folding and Counting
Weight :
800kg
Material :
Cardboard, Corrugated Board
Description

Apply hot melt and cold (pva) glues with speed and precision to your POP display and packaging materials. This machine is a high quality (made in China) XY glue plotter table with application speeds up to 1.3m/s.

Desired glue patterns are programmed into the machine through a combination of a touch screen and sports-controlled system and using a DXF/PLT/AI transfer system, our Glue Plotter is a simple machine to set up and operate meaning unskilled personnel that are used to using hand guns can be used.

- Servo-controlled automatic XY gluing plotter

- Automatic raising bed

- Application of hot melt adhesives and cold PVA glue

- many different types of glue head can be fitted. Both hot melt and cold (pva) can be applied in spray(optional)/bead/microdot application modes.

- standard located the original point is laser light, and projector system as a optional which is easy to move the file to the correct place.


Details:

1. working size:2500*1600mm

2.
With 2 workstations

3. Four doors can be opened, easier to stack the materials.

4. Max Stack height: 840mm

5.Safety devices

6. Glue head (standard:hot melt and cold)

Optional equipment:

1. Paper Press device (Optional)

2. Projector (Optional)
