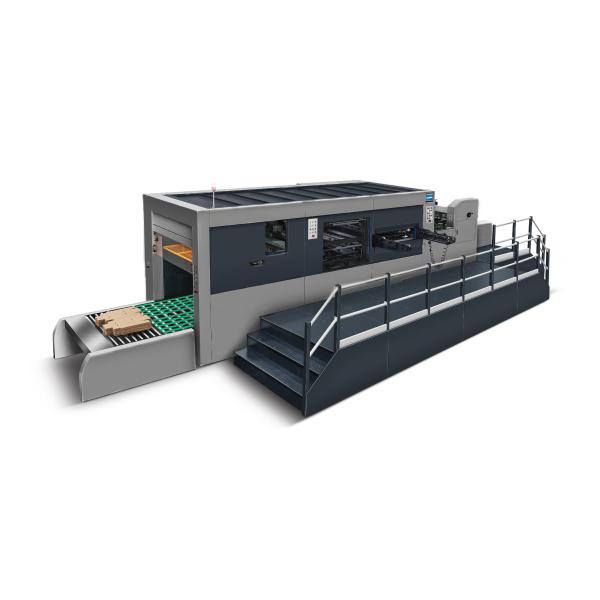

Fully automatic die-cutting machine for the heat transfer industry
Fully automatic die-cutting machine for the heat transfer industry
Specifications
Automatic grade :
Automatic,Semi-Automatic
Brand Name :
FINTEECH
Model Number :
FB-HT 1650FC/1900FC/2100FC
Certification :
CE
Place of Origin :
CHINA
Color :
Requirement,Optional Color
Condition :
New
Computerized :
Yes,Semi-Automatic,No
Product name :
Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic paper die cutting punching machine price,BASCOCUT multi sheet cutter,Automatic rotary die cutting machine for corrugated carton box,small size die cutting machine
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Type :
Die-cutting Machine,Paper Cutting Machine,Label cutter,Other,Packing Machine
Usage :
sticker,trademark,Food Forming Machine,label,heat transfer industry
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support
Description
Automatic Paper Die Cutting Machine
Product Overview

The Auto-Eject Precision Die Cutting Creasing Machine delivers high-performance cutting for various materials including paper, film, and foil. Designed for industrial applications, it offers precision, efficiency, and reliability in die cutting operations.

Key Features
  • Lead Edge Feeder: Top gear and precise feeder design ensures consistent feeding with various corrugated board qualities. Features polyurethane wheel surface with grid lifter and air cushion for smooth feeding and accurate alignment.
  • Sheet Transmission and Alignment: Selectable left/right side push lays for accurate alignment. Advanced non-stop adjustment of feeding timing reduces downtime.
  • Variable Speed Worm Gear Drive: Worm gear and toggle mechanism allows large motion angle with minimum nicks at optimal production speed.
  • Three Layer Stripping Section: Stationary middle stripping board with smooth upper frame motion for cleaner waste removal. Features gripper bar register block for accuracy.
  • Paper Counting & Collecting (Optional): Escalator delivery fork with air cylinder for neat conveying. Includes electrical batch counter and spring-loaded chain tensioner.
  • Auto Non-Stop Collecting (Optional): Automatic switching between main and non-stop collecting devices for increased efficiency.
Technical Specifications
Model FB-HT1650FC FB-HT1900FC FB-HT2100FC
Max. Sheet Size 1650×1200mm 1900×1400mm 2100×1600mm
Min. Sheet Size 650×500mm 650×500mm 750×650mm
Max. Die Cutting Size 1630×1180mm 1880×1380mm 2080×1580mm
Minimum Width of Double Cuts 10-18mm 10-18mm 10-18mm
Gripper Margin 6-12mm 6-12mm 6-12mm
Cutting Rule Height 23.8mm 23.8mm 23.8mm
Max. Die Cutting Speed 6000s/h 5000s/h 4000s/h
Max. Die Cutting Force 400T 450T 450T
Additional Specifications
Stock Range: ≤9mm corrugated paper, F, E, B, C, A and AB corrugated paper
Air Requirement: Air pressure: 0.6~0.7Mpa, Flow rate: ≥1m³/min
Product Attributes
Color: Requirement, Optional Color
Automatic Grade: Automatic, Semi-Automatic
Usage: Sticker, Trademark, Food Forming Machine, Label, Heat Transfer Industry
After-sales Service: Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Online support
Condition: New
Type: Die-cutting Machine, Paper Cutting Machine, Label cutter, Other, Packing Machine
Computerized: Yes, Semi-Automatic, No
