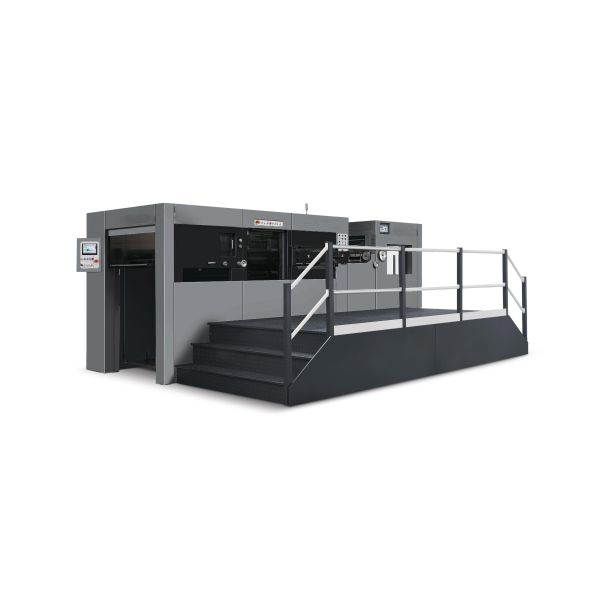

Automatic Flatbed Die Cutting Machine Easy Operation Customization
Automatic Flatbed Die Cutting Machine Easy Operation Customization
Specifications
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Power Source :
Electric
Brand Name :
FINTEECH
Model Number :
FM-HK1050CE
Certification :
CE
Place of Origin :
CHINA
Type :
Semi-automatic
Condition :
New
Material :
Steel
Port :
TIANJIN,CHINA
Keyword :
printer slitter die cutter machine
Description
High-Precision Automatic Die Cutting Machine
Product Specifications
Attribute Value
Port TIANJIN, CHINA
Power Source Electric
Material Steel
Type Semi-automatic
Condition New
Advanced Features
  • Feeder Unit: Four pick up and four forward suck heads with angle adjustment for handling various materials
  • Feeding Table: Synchronizing device for sheet positioning with sheet hold-down device
  • Torque Limiter: Taiwan high precision intermittent segmentation for long-term positional accuracy
  • Main Motor Lubrication: Automatic oil pump cooling circulation system with oil pressure monitoring
  • Stripping Unit: Center line system with pull-out tool mounting frames for easy setup
  • Electrical Components: World-renowned brands (MOELLER/OMRON) for reliable performance
  • Waste Removal: Gripper edge stripping system with conveyor belt for efficient waste removal
  • Delivery System: Automatic non-stop curtain with dual blowers for neat paper collection
  • Vacuum System: Germany Becker oil-free blower and vacuum pump
  • Lubrication: Concentrated auto lubrication system for optimal driven parts operation
Technical Parameters
Model FM-HK1050CE
Maximum Sheet Size 1050×750mm
Minimum Sheet Size 400×360mm
Maximum Cutting Size 1040×720mm
Stock Range Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm
Die Cutting Accuracy ≤±0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 7500 sheets/hour
Power Requirements Main motor: 11kW, Full load: 16.9kW
Air Requirements Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min
Machine Dimensions 7070×4257×2349mm (L×W×H)
Net Weight 17 Tons
