Digital Printing Book Binding Equipment Industrial With Advanced Servo System
Digital Printing Book Binding Equipment Industrial With Advanced Servo System
Specifications
Brand Name :
FINTEECH
Model Number :
FS-1000VB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Tape :
Double-seat Die Cutting Machine
Driven Type :
Electric
Safety System :
Emergency Stop
Color :
Requirement
Function :
mounting machine
Cutting Precision :
Paper Box Die Cutting Machine
Computerized :
Yes
Description

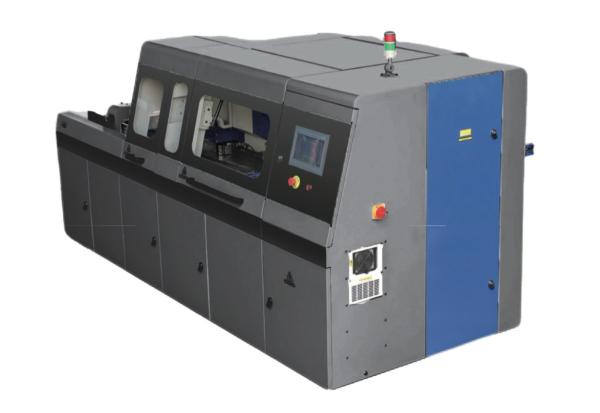

Machine Introduction:

This fully automatic Three Knife Trimmer is the latest intelligent fully automatic trimmer model designed and developed by our company, which is particularly suitable for use in the digital industry. This machine can be connected to various types of glue binding machines, and the transmission action of the machine is completed by a servo system. It also realizes intelligent adjustment and plate replacement, greatly reducing the technical requirements for operators during use. The machine has high precision, stability, and reliability Flexible plate changing, intelligent adjustment, and convenience can be achieved when cutting small batches of books and periodicals.

Technical Parameters:
Model FS-1000VB
Max. Cutting Size 340*300mm
Min. Cutting Size 145*100mm
Max. Cutting Height 60mm
Min. Cutting Book Height 10mm
Min. Single Cutting Height 5mm
Cutting Speed 1300cut/hour
Power 7KW
The Pressure 6Pu
Overall Dimension L3020mm *W2196mm *H1710mm
Machine Weight 2400KG
Digital Printing Book Binding Equipment Industrial With Advanced Servo System

Set the required length, width, and height dimensions for cutting books and magazines on the touch screen, and the machine will automatically adjust the size. And the data can be saved with a name annotation.

The machine shutdown protection and prompt function when the cutting size is inconsistent with the mosaic. The function of the presser foot can be adjusted on the touch screen.

Digital Printing Book Binding Equipment Industrial With Advanced Servo System

The book delivery pusher adopts a brand new design, which can adjust the thickness of books without manual intervention.

Digital Printing Book Binding Equipment Industrial With Advanced Servo System

The automatic gear gauge can set the size of the required trimming edge on the touch screen, and the machine gear gauge will automatically adjust without manual intervention. And equipped with automatic alignment function.

Digital Printing Book Binding Equipment Industrial With Advanced Servo System

The horizontal feeding device can be automatically adjusted according to the touch screen settings, and the adjustment of the book delivery channel is convenient and fast.
