Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Flat Type Window Patching Machine For Diverse Packaging
Specifications
MOQ :
1 set
Payment Terms :
L/C,T/T
Supply Ability :
10 sets per day
Delivery Time :
20-30 days
Packaging Details :
wooden case
Brand Name :
FINTEECH
Model Number :
T-650A
Certification :
CE
Place of Origin :
CHINA
Odm :
Yes
Productname :
Window Patching Machine
Control System :
Automatic
Automaticity :
Automatic
Description
Instruction of machine:

Suitable for automatic window filming of window cartons such as tissue boxes, cosmetic boxes, gift boxes, clothing boxes, toy boxes, etc. Corrugated paper is also suitable, and special-shaped cartons are also easy to operate.

Sample:

Flat Type Window Patching Machine For Diverse Packaging

Machine more details:

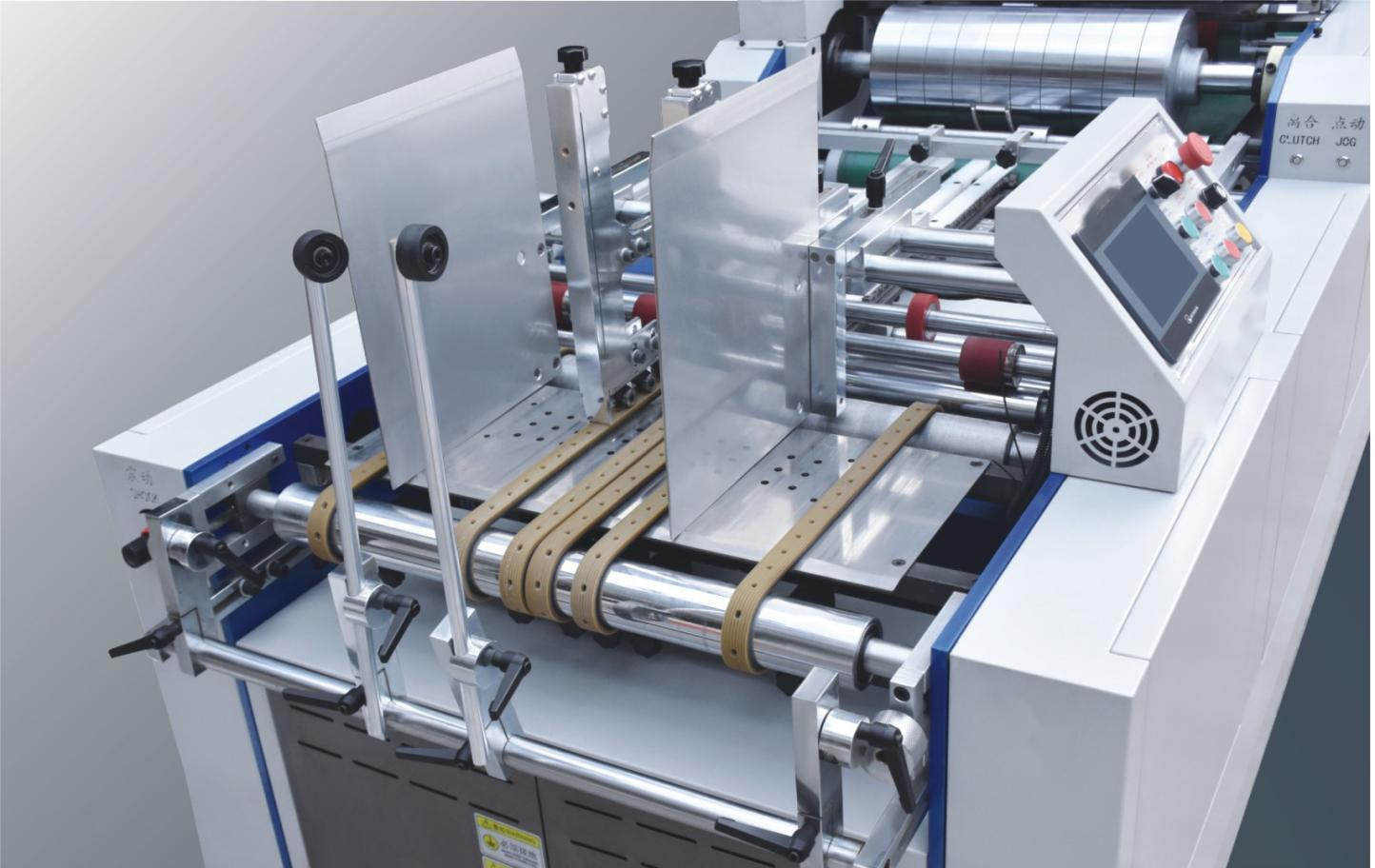

1. Paper feeding section:

High quality feeding belt to feed the material with high stability and more easy adjustment.

 Flat Type Window Patching Machine For Diverse Packaging

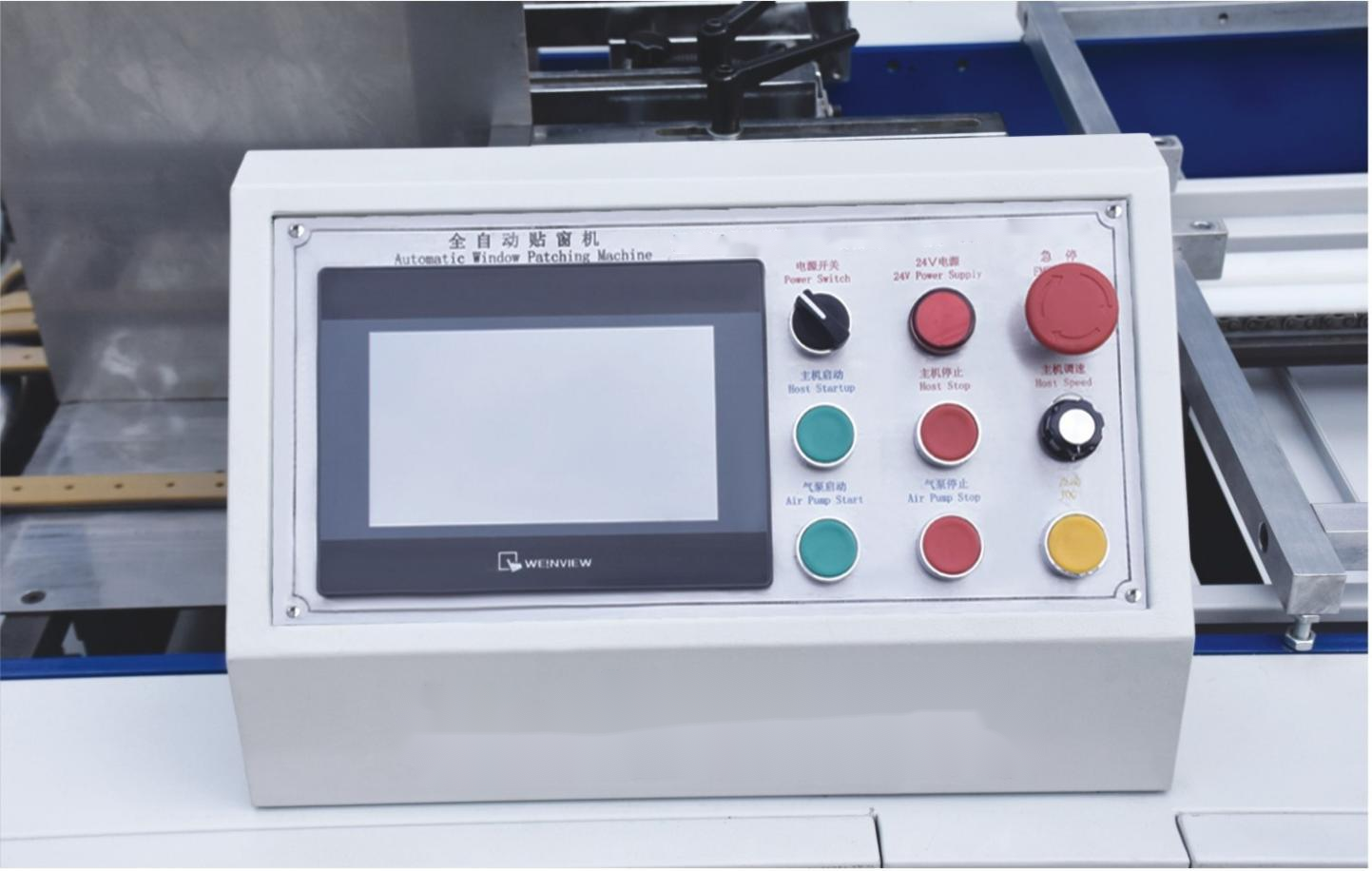

2.Operating interface:

All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button.

 Flat Type Window Patching Machine For Diverse Packaging

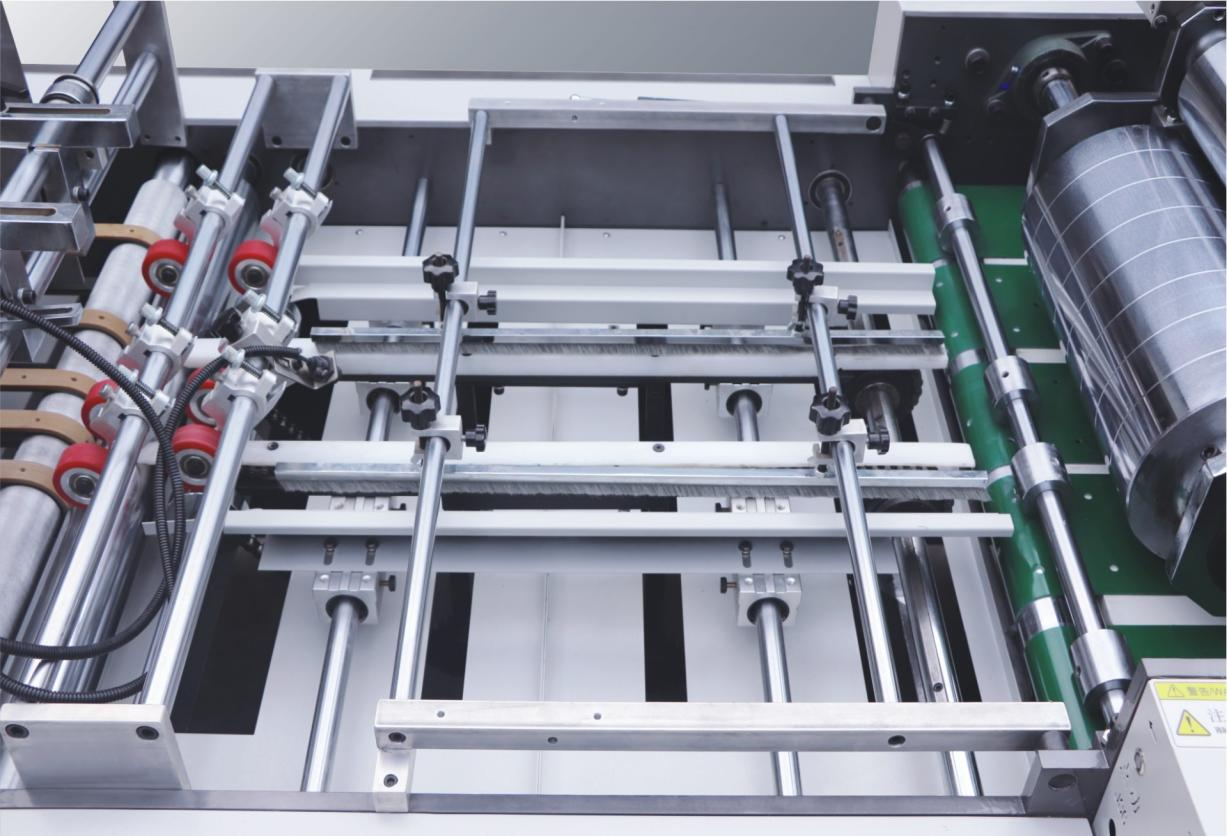

3.Positioning Department:

Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation

 Flat Type Window Patching Machine For Diverse Packaging

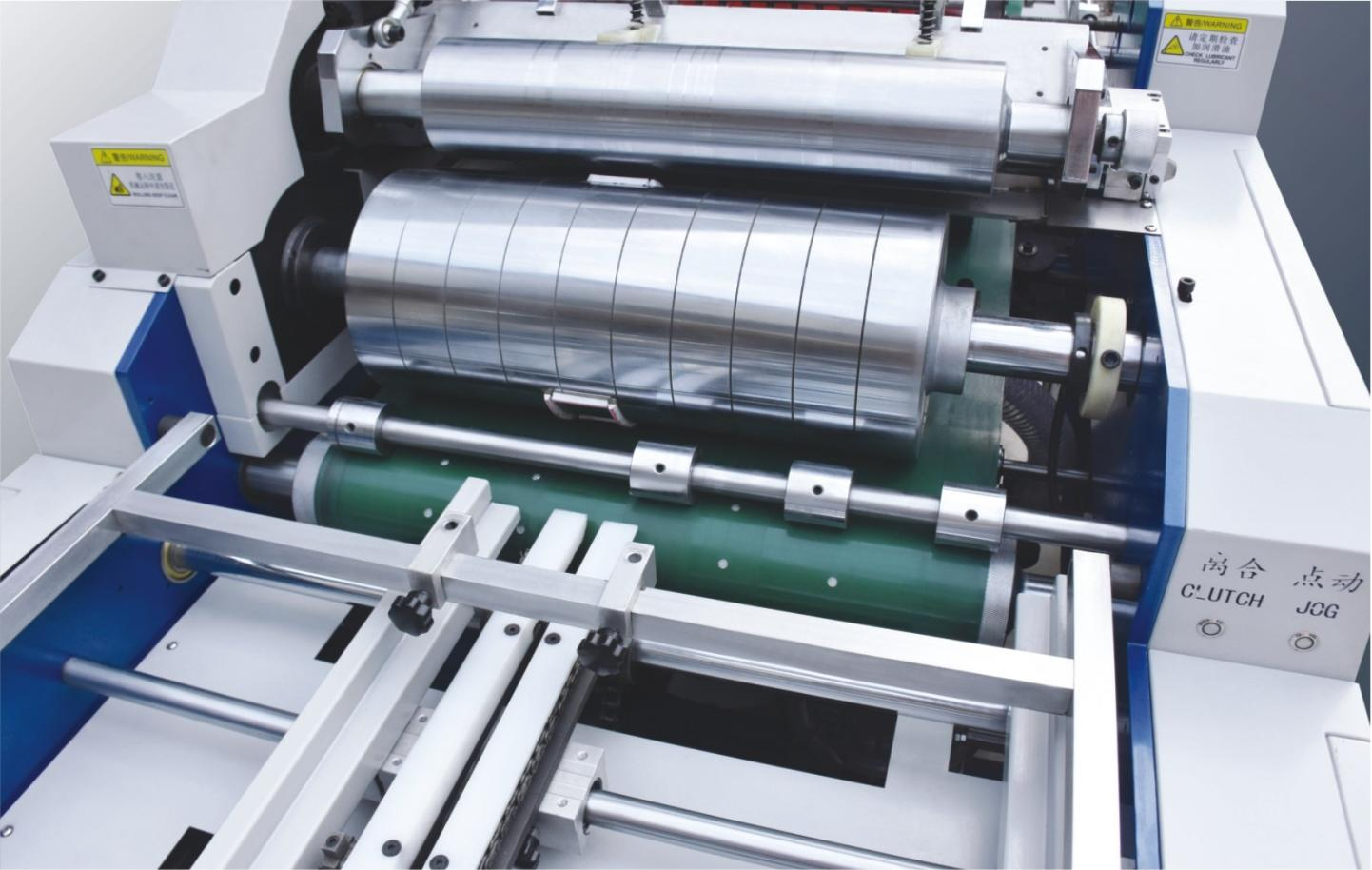

4.Glue department:

The special mechanical structure design applies the glue to the product surface quickly and evenly through the sponge gluing method, with good scraping effect.

 Flat Type Window Patching Machine For Diverse Packaging

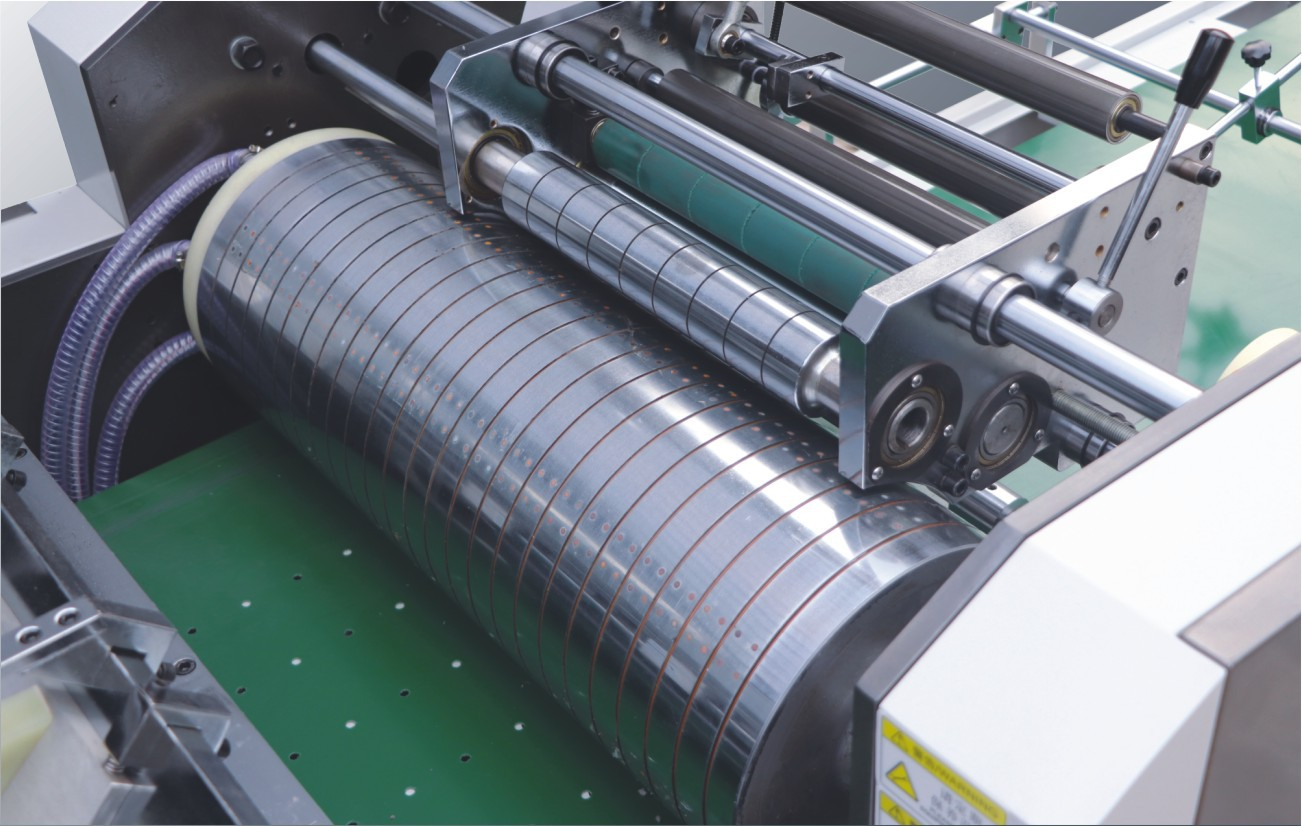

5.Film section:

The film feeding adopts servo motor transmission and roller adsorption for continuous pasting. Compared with the traditional intermittent pasting, it has the advantages of fast bonding speed, high precision, and low requirements on the film.

 Flat Type Window Patching Machine For Diverse Packaging

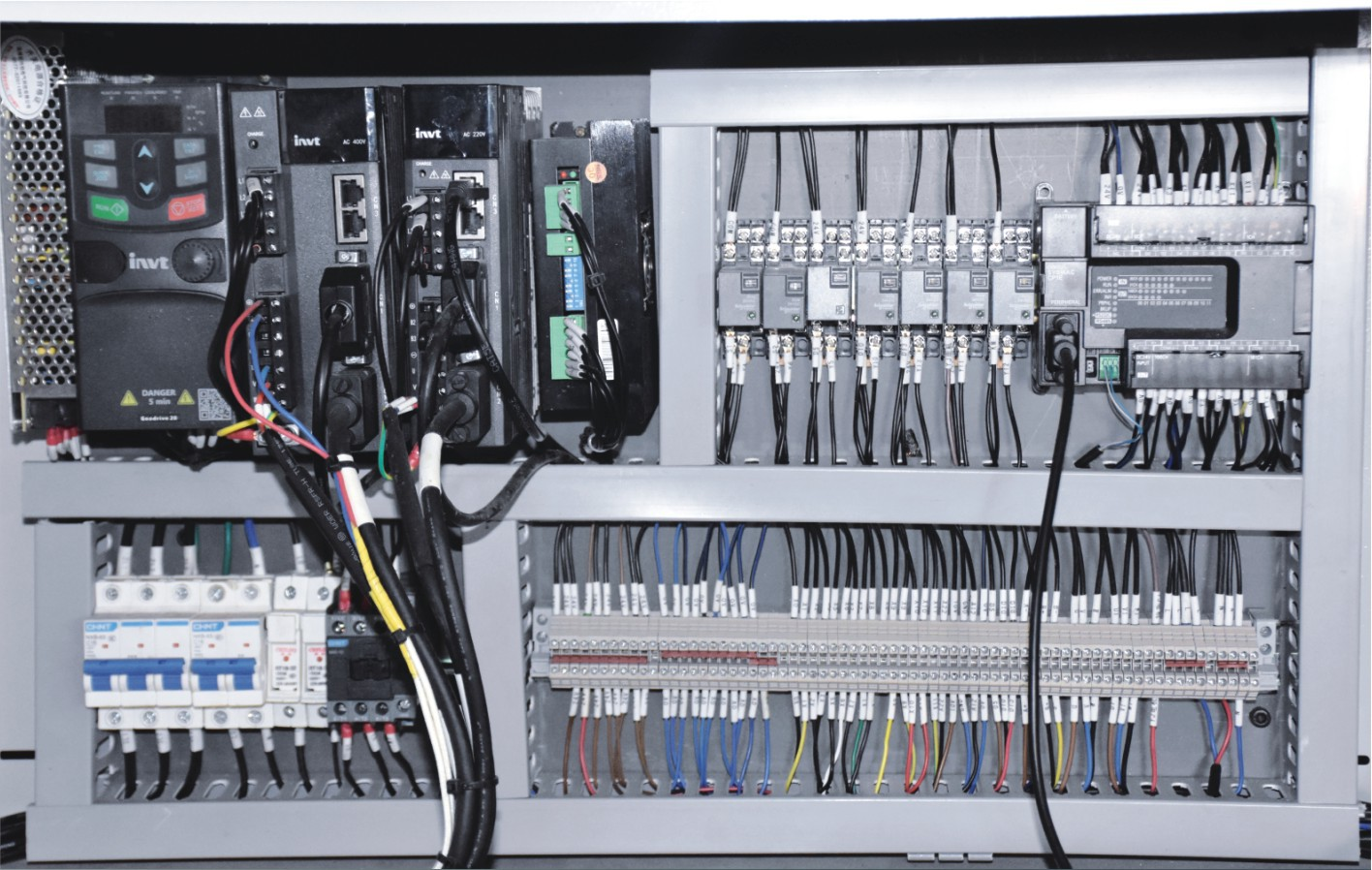

6.Electrical System:

The whole machine adopts full servo motion control, and various electrical components and detection switches are produced by companies in Japan, Taiwan, France, and Germany.

 Flat Type Window Patching Machine For Diverse Packaging
Machine Technical Parameters:

Model

T-650A

Name

Automatic Window Patching Machine

Max Paper size

580*650mm

Min Paper size

100*100mm

Paper thickness

Kraft paper: 150-1200g/m2

White Cardboard: 230-1200g/m2

Corrugated Board:≦3mm

Max film size

L 320* W 350mm

Min film size

L 50* W 20mm

Film Thickness

PVC/PET: 0.038mm-0.25mm, PE:0.1-0.25mm

Max film unwinding diameter

400mm

Pasting error

+-1.5mm

Speed

8000-10000 pcs/hour

Servo motor qty

2 sets

Stepping motor qty

2 sets

Machine size

4600*1300*1600mm

Power

380V/3P/50HZ(can customized for specially)

Weight

1500 tons
