Specifications
Machine Dimensions (L x W x H) :
8017 x 4518 x 2502mm
Place of Origin :
China
Maximum Sheet Size :
1060 x 760mm
Air Requirement :
0.6-0.7Mpa, 0.37m3/min
Packaging Details :
Export wooden case packing with anti-rust treatment and waterproof film, loaded in 40ft container
Cutting Rule Height :
23.8mm
Maximum Cutting Pressure :
600T
Total Power Required :
23KW
Stock Range :
Paper 80-2000g/m2 (0.1-2mm), corrugated board up to 4mm
Max. Delivery Pile Height :
1480mm (with wooden pallet)
Main Motor Power :
15KW
Supply Ability :
10 Sets per Month
Inner Chase Size :
1080 x 770mm
Electric-Heated System :
20 heating zones, 40-180 deg C adjustable
Die Cutting Precision :
+/-0.075mm
Max. Feeder Pile Height :
1630mm (with wooden pallet)
Model Number :
FB-HT1060ACER
Minimum Sheet Size :
350mm
Certification :
CE
MOQ :
1 Set
Brand Name :
FINTEECH
Maximum Working Speed :
8000 sheets/hour
Model :
FB-HT1060ACER
Payment Terms :
T/T,L/C
Delivery Time :
20-30 working days
Maximum Cutting Size :
1060 x 745mm
Description

FB-HT1060ACER automatic die cutting machine with stripping is a heavy-duty platen die cutter rated at 600 tons of cutting pressure, integrating gripper edge waste stripping and an electric heating system. It is the ideal solution for high-volume die cutting and stripping of paper and corrugated board in packaging production.

Key Features

  • Precise feeder system: Advanced feeding platform feeds a wide stock range precisely and consistently, from 90g/m2 thin paper to 1000g/m2 cardboard and micro flute corrugated board.
  • Ultrasonic double sheet detector: Non-contact ultrasonic detection avoids scratching the paper, with reliable performance and quick set-up.
  • Quick mould locking device: Center-line system with quick locking device saves make-ready time.
  • Plate setting: 5mm hardened cutting plate or 4+1mm sandwich plate on a 15mm precision synthetic supporting plate with ±0.9mm micro adjustment for easy make-ready.

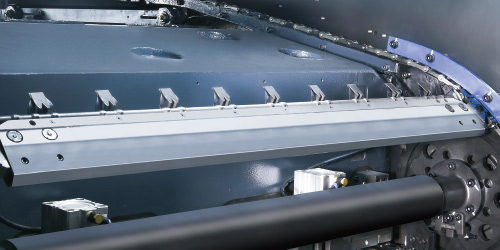

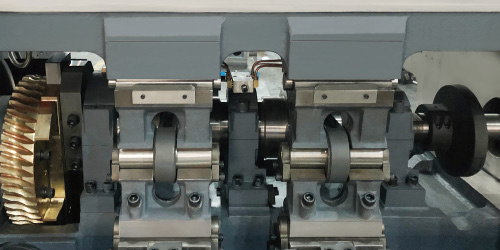

  • Gripper bar: Large motion angle eccentric worm gear drive system keeps gripper bars running extremely smoothly.
  • Gripper edge waste removal device: Gripper edge stripping and removing system with conveyor belt removes the gripper edge waste sideways to the drive side.
  • Electric heating system: 20 heating zones with adjustable temperature range of 40~180°C, suitable for hot die cutting processes.
  • Germany Becker vacuum pump: Oil-free blower and vacuum pump ensure clean and stable sheet transport.

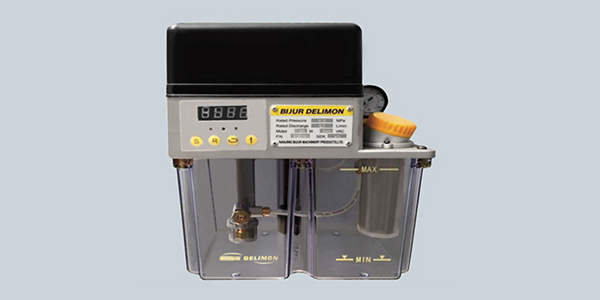

  • Auto lubrication system: Concentrated auto lubrication keeps all driven parts working reliably.
  • Auto non-stop collecting device: Main delivery and auto non-stop delivery switch automatically without any operation, improving overall efficiency.
  • Advanced tooling lockup: Quick tooling set-up system ensures fast job change-over and high productivity at both stripping stations.

Technical Parameters

Model FB-HT1060ACER
Maximum Sheet Size 1060 x 760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060 x 745mm
Gripper Margin 9-17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080 x 770mm
Stock Range Paper 80~2000g/m2, 0.1~2mm; corrugated board up to 4mm
Die Cutting Precision ±0.075mm
Maximum Cutting Pressure 600T
Maximum Working Speed 8000 sheets/hour
Max. Feeder Pile Height 1630mm (with wooden pallet)
Max. Delivery Pile Height 1480mm (with wooden pallet)
Electric-Heated System 20 heating zones, 40~180°C adjustable
Machine Dimensions (L x W x H) 8017 x 4518 x 2502mm
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement 0.6~0.7Mpa, 0.37m3/min

Contact us for more details about the FB-HT1060ACER automatic die cutting machine with stripping and its factory price.
