Specifications
Maximum Sheet Size :
1060 x 760mm
Air Requirement :
0.6-0.7Mpa, 0.37m3/min
Model Number :
FB-HT1060
Cutting Rule Height :
23.8mm
Max. Die Cutting Force :
300T
Total Power Required :
23KW
Stock Range :
Paper 80-2000g/m2 (0.1-2mm), corrugated board up to 4mm
Max. Delivery Pile Height :
1480mm (with wooden pallet)
Main Motor Power :
15KW
MOQ :
1 Set
Payment Terms :
T/T,L/C
Inner Chase Size :
1080 x 770mm
Machine Dimensions (L x W x H) :
6703 x 4518 x 2302mm
Die Cutting Accuracy :
+/-0.075mm
Max. Feeder Pile Height :
1630mm (with wooden pallet)
Delivery Time :
45 days after receiving deposit
Minimum Sheet Size :
350mm
Place of Origin :
China
Certification :
CE
Net Weight :
17000kg
Brand Name :
FINTEECH
Supply Ability :
10 Sets per Month
Packaging Details :
Export wooden case packing with anti-rust treatment and waterproof film, loaded in 40ft container
Model :
FB-HT1060
Max. Working Speed :
9000 sheets/hour
Maximum Cutting Size :
1060 x 745mm
Description

FB-HT1060 automatic die cutting machine is a heavy-duty platen die cutter developed for high-precision cutting, creasing and embossing of paper and corrugated board. With 300 tons of cutting force and a maximum working speed of 9000 sheets per hour, it delivers outstanding productivity for printing and packaging plants.

Key Features

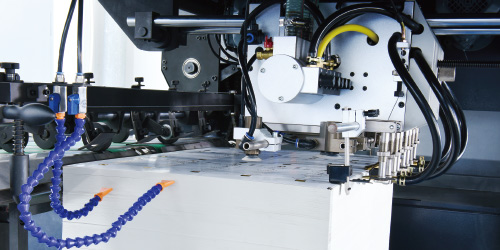

  • Precise feeder system: Advanced feeding platform feeds a wide stock range precisely and consistently, from 90g/m2 thin paper to 1000g/m2 cardboard and micro flute corrugated board.

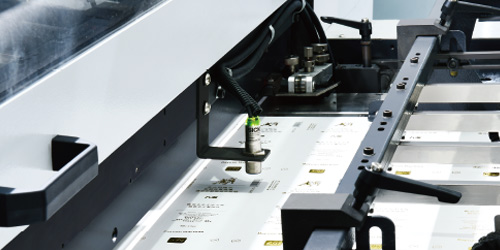

  • Ultrasonic double sheet detector: Non-contact ultrasonic detection avoids scratching the paper, with reliable performance and quick set-up.
  • Quick mould locking device: Center-line system with quick locking device saves make-ready time.
  • Plate setting: 5mm hardened cutting plate or 4+1mm sandwich plate on a 15mm precision synthetic supporting plate with ±0.9mm micro adjustment for easy make-ready.
  • Gripper bar: Large motion angle eccentric worm gear drive system keeps gripper bars running extremely smoothly.
  • Variable speed worm gear drive: Worm gear and toggle mechanism allows a large motion angle, minimizing the number and size of nicks at maximum production speed.
  • Germany Becker vacuum pump: Oil-free blower and vacuum pump ensure clean and stable sheet transport.
  • Auto lubrication system: Concentrated auto lubrication keeps all driven parts working reliably.
  • Auto non-stop collecting device: Main delivery and auto non-stop delivery switch automatically without any operation, improving overall efficiency.
Technical Parameters
Model FB-HT1060
Maximum Sheet Size 1060 x 760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060 x 745mm
Minimum Gripper Margin 9~17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080 x 770mm
Stock Range Paper 80~2000g/m2, 0.1~2mm; corrugated board up to 4mm
Die Cutting Accuracy ±0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 9000 sheets/hour
Max. Feeder Pile Height 1630mm (with wooden pallet)
Max. Delivery Pile Height 1480mm (with wooden pallet)
Machine Dimensions (L x W x H) 6703 x 4518 x 2302mm
Net Weight 17000kg
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement 0.6~0.7Mpa, 0.37m3/min

Contact us for more details about the FB-HT1060 automatic die cutting machine and its factory price.
