IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current
Specifications
Model Number :
Solar Connector
IP Level :
IP65
Supply Ability :
800–1500 kilometers per month
Certification :
CE，VDE,SO 9001
Housing Material :
PPE
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Ambient temperature :
-40℃~+85℃
Price :
usd 0.45 ～ 1.10/ meter
Wire specifications :
2.5mm²,4mm²,6mm²
MOQ :
1000
Delivery Time :
7-15 Working Days
Product name :
solar pv connector
Place of Origin :
china
Gender :
Female Male
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Rated Voltage :
1500 V
Description
IP67 Waterproof 4-in-1 Type Solar Panel T5 Connector Male Female 30A Current for Solar Power System
This 4-in-1 T5 solar connector is a professional photovoltaic wiring accessory engineered for residential, commercial, and industrial solar power systems. Adopting a practical one-to-four branch design, it efficiently connects four solar panels to a single circuit, greatly simplifying PV array wiring layout and reducing on-site installation costs. Rated at 30A high current and compliant with IP67 full waterproof and dustproof standards, this male and female matched connector delivers stable, safe, and durable electrical connection performance in complex outdoor environments. Manufactured with high-grade flame-retardant insulating materials and tin-plated copper conductive cores, it features low resistance, high conductivity, oxidation resistance, and aging resistance, fully meeting long-term continuous operation requirements of solar power generation systems in high-temperature, rainy, dusty, and extreme weather conditions.
Parameter Item
Technical Specification
Product Model
T5 4-in-1 Solar Connector (Male & Female)
Rated Current
30A
Rated DC Voltage
1000V
Protection Grade
IP67 (Dust-tight & Waterproof)
Flame Retardant Grade
UL94-V0
Conductor Material
High-purity Tin-plated Copper
Housing Material
High-performance PPO/Nylon Insulation Material
Contact Resistance
≤0.5mΩ (Low power loss)
Insulation Resistance
≥1000MΩ
Working Temperature Range
-40℃ ~ +90℃
Storage Temperature
-40℃ ~ +135℃
Certification Standard
TUV Certified, Compliant with PV Industry International Standards
Connection Mode
4-in-1 Parallel Branch Connection, Male & Female Plug-in

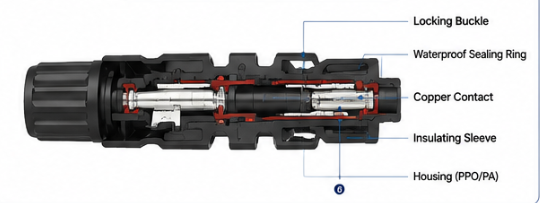

Anti-loosening Design
Built-in Locking Buckle, Vibration-resistant & Anti-loose

IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current

Product Application Fields

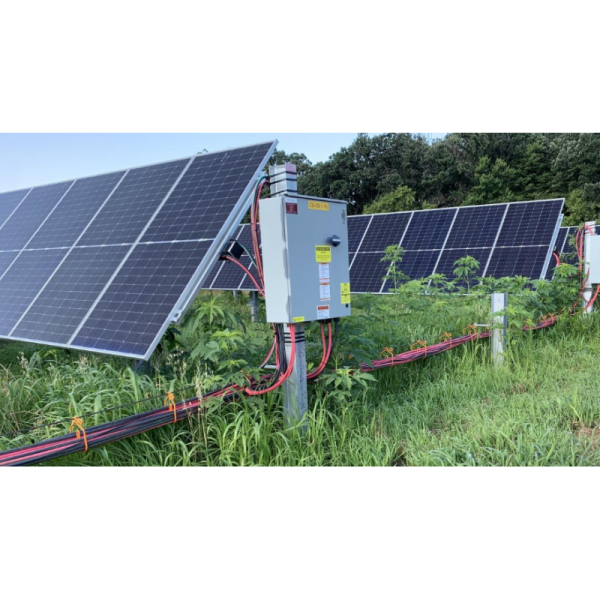

This IP67 30A T5 4-in-1 solar connector is widely applicable to all types of photovoltaic power generation systems that require parallel connection of multiple solar panels, covering residential, commercial, industrial, and outdoor mobile power scenarios. In household rooftop solar power generation systems, it can quickly realize the parallel wiring of multiple household solar panels, optimize the rooftop wiring layout, make the circuit arrangement more standardized and beautiful, and effectively improve the power generation efficiency of household solar systems while reducing later maintenance difficulties. For commercial photovoltaic projects such as factory building rooftop power stations, shopping mall distributed power stations, and office building solar systems, the 4-in-1 integrated design greatly reduces the number of connectors and cables, lowers project construction costs, and improves the overall stability and safety of large-area PV arrays.
In industrial solar power systems including ground centralized photovoltaic power stations, agricultural greenhouse solar power systems, and industrial energy storage and power generation integrated systems, the product’s high current resistance, high voltage resistance, and extreme weather resistance can adapt to long-term high-load continuous operation, ensuring stable power transmission of large-scale solar arrays. It is also perfectly suitable for off-grid solar systems such as solar street lights, solar monitoring power supply systems, outdoor solar charging piles, RV solar power supply, and ship photovoltaic power supply equipment. In addition, it can be used in solar energy storage matching circuits, photovoltaic power generation matching inverter connection lines, and other supporting scenarios, providing safe, efficient, and durable connection solutions for all kinds of solar power system wiring and parallel combination needs.
IP67 Waterproof 4 In 1 Type T5 Solar Panel Connector Male Female 30A Current

FAQ

Q1: What does the IP67 waterproof grade of this solar connector mean, and is it suitable for long-term outdoor use?
A1: IP67 protection grade means the connector is completely dust-tight with no dust infiltration, and can withstand immersion in 1-meter deep static water for 30 minutes without water ingress. It can fully resist daily rain, snow, dew, and dust erosion, and adapt to long-term outdoor open-air installation and use. It is not affected by rainy days, snowy days, and dusty environments, and can maintain stable working performance in all outdoor solar installation scenarios.
Q2: What is the maximum load capacity of this 4-in-1 T5 solar connector? Can it meet large solar array connection needs?
A2: This connector is rated for 30A current and 1000V DC voltage, with ultra-low contact resistance and stable high-load bearing capacity. It is designed for parallel connection of four solar panels, which can effectively converge the current of multiple modules, fully meeting the wiring needs of household distributed solar systems, small and medium-sized commercial photovoltaic power stations, and supporting conventional large-area solar array parallel combination use. It will not generate excessive heat or cause power attenuation during long-term high-load operation.
Q3: Is the installation of this solar connector complicated? Does it need professional tools and operation?
A3: The product adopts male and female plug-and-play integrated design with a built-in locking buckle structure. The installation process is simple and efficient, no complex professional tools are needed, and manual plugging and locking can complete the connection quickly. The disassembly operation is also convenient, which greatly saves on-site installation and later maintenance time and labor costs, and can be operated by ordinary construction personnel after simple understanding.
Q4: What are the advantages of the 4-in-1 structure compared with ordinary single solar connectors?
A4: Traditional single solar connectors can only realize one-to-one connection, which requires a large number of connectors and cables for multi-panel parallel wiring, resulting in messy circuits, high loss and high cost. The 4-in-1 integrated branch design of this product can converge four solar panel circuits at one time, effectively reducing the use of cables and connectors, simplifying the wiring structure, reducing circuit power loss, making the system circuit more neat and standardized, and improving the overall stability and maintainability of the solar power system.
