Heat Shrink Cable Termination Kit 11kV 15kV 24kV 35kV Medium Voltage Power Cable Termination Accessories

Product Overview

Heat Shrink Termination is a professional cable accessory designed for connecting and sealing medium voltage and high voltage power cables. It uses cross-linked polyolefin heat shrink materials combined with stress control tubes, insulating layers and sealing components to provide reliable electrical insulation, environmental protection and long-term operating stability.

The heat shrink cable termination kit is widely used for indoor and outdoor cable termination applications, especially in power distribution systems, industrial facilities, renewable energy projects and infrastructure networks. With excellent resistance to moisture, UV radiation and mechanical stress, it ensures safe operation of cable connections under different environmental conditions.

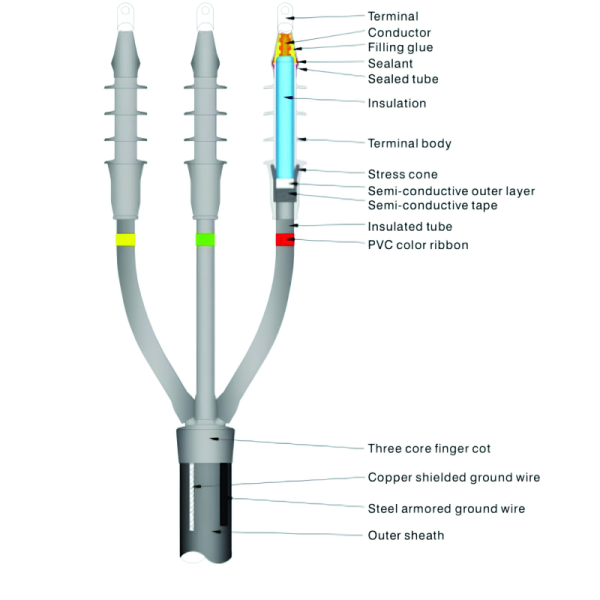

Product Structure

A standard heat shrink termination kit generally includes:

• Stress Control Tube
  Controls electric field distribution and reduces electrical stress concentration.
• Insulation Heat Shrink Tube
  Provides primary electrical insulation protection.
• Outer Protection Tube
  Protects against moisture, dust and mechanical damage.
• Sealing Tube and Waterproof Mastic
  Improves sealing performance and prevents water penetration.
• Grounding Components
  Provides safe grounding connection for armored cables.

Product Parameters

Product Advantages

Reliable Cable Sealing

The heat shrinkable outer layer tightly covers the cable surface after heating, preventing water ingress and improving protection performance.

Stable Stress Control

The integrated stress control layer provides uniform electric field distribution and improves cable termination safety.

Flexible Customization

Different sizes and configurations can be supplied according to cable voltage level, cable structure and installation environment.

Suitable for Various Projects

The product can meet the requirements of utility power networks, industrial power systems and renewable energy installations.

Product Application Fields

1. Power Distribution Networks

Heat shrink termination kits are commonly installed in medium voltage distribution systems for connecting underground cables, switchgear and transformers.

2. Renewable Energy Projects

Used in solar power plants, wind farms and energy storage systems to provide safe and reliable cable connections.

3. Industrial Electrical Systems

Suitable for factories, mining facilities, chemical plants and large industrial equipment requiring stable power transmission.

4. Infrastructure Projects

Applied in airports, railways, commercial buildings and public facilities where reliable electrical connections are required.

5. Underground Cable Systems

Provides effective sealing and insulation protection for underground cable joints and cable entry points.

FAQ

Q1: What is a heat shrink cable termination?

A heat shrink cable termination is an electrical accessory used to terminate medium voltage cables. It provides insulation, stress control and environmental sealing at the cable end.

Q2: What voltage levels are available for heat shrink termination kits?

Heat shrink termination kits are available for various voltage levels including 6kV, 10kV, 11kV, 15kV, 24kV and 35kV. Customized solutions are available according to cable specifications.

Q3: What cables can use heat shrink termination?

It can be used with XLPE insulated power cables, PVC insulated cables, armored cables and unarmored cables with copper or aluminum conductors.

Q4: Is heat shrink termination suitable for outdoor installation?

Yes. Outdoor heat shrink termination kits include weather-resistant materials that provide protection against UV radiation, moisture and temperature changes.

Q5: How is a heat shrink termination installed?

The installation process usually includes cable preparation, stress control component installation, heat shrinking and sealing. Heating equipment is required to shrink the tubes evenly around the cable.
