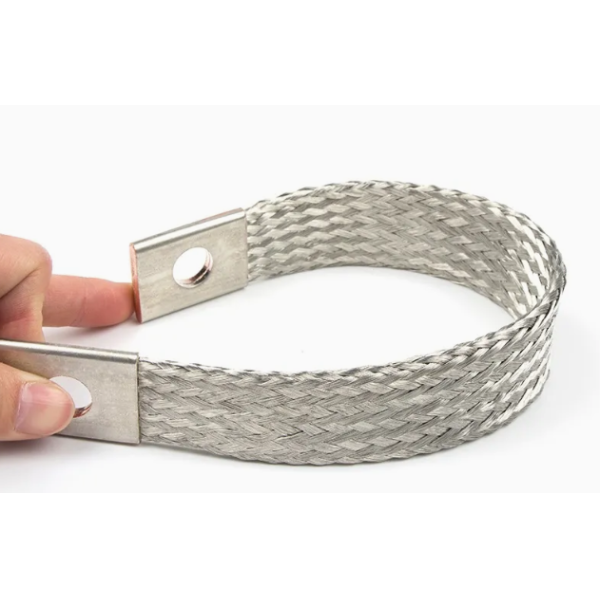

Flexible Aluminium Braid Strap Lightweight Aluminum Grounding Connector Braided Wire

Product Description

Aluminium Braid is a flexible electrical conductor manufactured by weaving numerous aluminum strands into a flat or tubular braided structure. The unique construction combines lightweight characteristics with mechanical flexibility, providing a practical solution for electrical connections where space limitations, vibration or movement may affect conventional conductors.

Unlike solid aluminum bars or rigid connection parts, braided aluminum straps can move slightly during operation and compensate for mechanical stress caused by vibration, thermal expansion and installation deviation.

This type of flexible aluminum connector is commonly used for grounding, electrical bonding, equipment connection and current transmission applications in power distribution systems, industrial machinery and renewable energy equipment.

Different braid widths, thicknesses, lengths and terminal designs can be customized according to project requirements.

Product Construction

Aluminum Strand Layer

Multiple fine aluminum wires are precisely woven together to create a flexible conductive path.

Braided Flexible Section

The woven body provides mechanical flexibility while maintaining structural stability during operation.

Terminal Connection Area

Different terminal solutions can be added, including aluminum lugs, copper-aluminum transition terminals and customized mounting ends.

Surface Treatment Options

Available finishes:

• Natural Aluminum Surface
• Customized Protective Treatment
• Special Coating According to Application

Product Technical Parameters

Product Advantages

Flexible Compared with Rigid Conductors

Aluminum braid can absorb mechanical movement and installation stress, reducing the possibility of connection damage caused by vibration.

Lightweight for Large Equipment

The aluminum construction helps lower installation weight, especially in large electrical systems requiring multiple flexible links.

Suitable for Complex Installation Conditions

The flexible structure makes it easier to install around obstacles, uneven surfaces or limited spaces.

Reliable Long-Term Connection

Properly selected aluminum braid provides stable electrical performance for industrial and power applications.

Product Application Areas

1. Electrical Distribution Systems

Aluminum braid is used in switch cabinets, distribution panels and electrical control equipment for grounding and flexible connection purposes.

2. Transformer and Substation Equipment

Applied as a flexible connection between conductive components where vibration absorption and installation flexibility are required.

3. Solar and Renewable Energy Equipment

Used in photovoltaic systems, wind power installations and energy storage equipment for grounding and electrical bonding.

4. Industrial Automation Machinery

Suitable for production equipment, motors and automation systems where electrical connections need mechanical flexibility.

5. Transportation Electrical Systems

Applied in railway equipment, electric vehicles and mobile electrical devices requiring lightweight connection components.

6. Battery and Energy Storage Applications

Used for internal electrical connections in energy storage cabinets and battery-related equipment.

FAQ

Q1: What is aluminium braid used for?

Aluminium braid is mainly used for flexible electrical connections, grounding links, bonding connections and current transmission between electrical components.

Q2: Why use aluminum braid instead of rigid aluminum conductors?

The braided structure provides better flexibility and vibration resistance, making it more suitable for applications where equipment movement or installation adjustment exists.

Q3: What is the difference between aluminum braid and copper braid?

Aluminum braid offers advantages in lightweight design and cost efficiency, while copper braid generally provides higher electrical conductivity.

Q4: Can aluminum braid be supplied with terminals?

Yes. Aluminum braid can be assembled with customized terminals, mounting holes and connection parts according to customer requirements.

Q5: Is aluminum braid suitable for grounding applications?

Yes. Aluminum braid is commonly used for grounding and bonding in electrical equipment because of its flexibility and conductive properties.

Q6: How is the correct aluminum braid size selected?

The selection depends on current requirements, installation environment, connection distance, mechanical movement and required flexibility.
