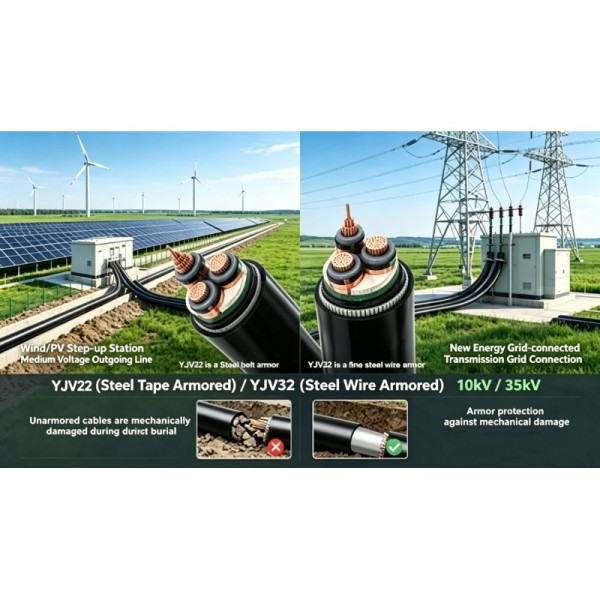

YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable
Specifications
Delivery Time :
7-15 Working Days
Conductor Material :
Copper
Brand Name :
F.T
Armor :
Galvanized Steel Wire
Model Number :
yjv32
Price :
usd 0.9～ 60/ meter
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Application :
Power Distribution, Construction, Industrial, Power Station, Building
Standard :
IEC 60502-1
Jacket :
PVC
Operating temperature :
Up to 90°C continuous, 250°C short-circuit
Working Temperature :
90°C
MOQ :
1000
Certification :
CE，VDE,SO 9001
Rated Voltage :
600V, 0.6/1kV
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
800–1500 kilometers per month
Place of Origin :
china
Insulation Material :
XLPE
Description

YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable

Cable Features

Conductor: Copper/Tinned Copper/Aluminium

Insulation/Jacket: XLPE/PVCArmor: SWA(Steel Wire Armored) / STA(Steel Tape Armored) or Non-ArmoredCores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2Section Area: 1.5mm2-1000mm2Standard: IEC 60502, BS 7870, GB/T12706 or other.Packaging: Iron Or Wooden DrumApplication: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.

We can customize the size according to your requirement.

Specifications Table

Cross Section

Stranding

Approx Weight

Approx Overall Diameter

Current Rating Laid Direct

mm²

mm

Kg/Km

mm

Amp

4 x 2.5

7/0.53

351

12.88

32

4 x 2.5

7/0.67

429

14.43

42

4 x 6.0

7/1.04

670

17.87

69

4 x 10

7/1.35

998

20.1

92

4 x 16

7/1.70

1,272

22.4

119

4 x 25

7/2.14

1,940

27

152

4 x 35

7/2.52

2,390

30.1

182

4 x 50

19/1.78

2,925

31.5

217

4 x 70

19/2.14

4,200

37.4

266

4 x 95

19/2.52

5,335

40.9

319

4 x 120

37/2.03

6,925

46.6

363

4 x 150

37/2.25

8,200

50.2

406

4 x 185

37/2.52

9,975

55.8

458

4 x 240

61/2.52

12,700

62.5

529

4 x 300

61/2.85

15,275

67.4

592

4 x 400

61/3.20

19,875

77

667

Application

  • Urban municipal power grid, residential and commercial complex direct buried power lines
  • Industrial park, factory workshop and heavy industry plant power distribution
  • Highway, railway, tunnel and bridge engineering underground power laying
  • Mining, oil field and chemical plant with strong corrosion and mechanical stress
  • High-rise building, hospital, school underground main power supply circuit
  • Solar power station and wind farm underground grid connection transmission
  • Port, wharf and logistics park outdoor underground fixed power wiring
  • Water supply and sewage treatment plant buried power cable

YJV32 Power Cable 0.6/1kV 3 Core Steel Tape Armored Underground Electrical Cable

FAQ

Q: What is YJV32 cable?
A: XLPE insulated steel wire armored power cable for underground direct burial.
Q: What is its voltage rating?
A: Standard 0.6/1kV, high voltage 8.7/15kV optional.
Q: What are its key advantages?
A: Pressure resistant, corrosion proof, flame retardant, with strong mechanical protection.
Q: What conductor material does it use?
A: High purity copper core, stable transmission and long service life.
Q: Where is YJV32 cable mainly used?
A: Municipal engineering, industrial parks, tunnels, power stations and chemical plants.
Q: What specifications are available?
A: 2/3/4/5 cores, cross section from 1.5mm² to 400mm².
Q: Can YJV32 be buried directly underground?
A: Yes, steel wire armor is specially designed for direct burial laying.
Q: Do you support customized service?
A: Custom length, cable logo printing and packaging are all available.
Q: What certificates can you provide?
A: CE, RoHS, ISO9001 and factory inspection test reports.
Q: What is your MOQ and delivery time?
A: Small orders are acceptable, bulk order lead time 7–15 working days.
