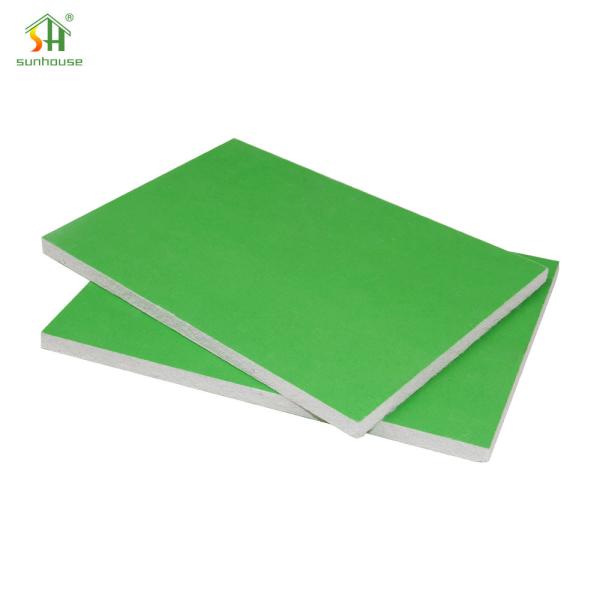

Customized Green Fireproof Gypsum Boards With Fiberglass Reinforcement
Customized Green Fireproof Gypsum Boards With Fiberglass Reinforcement
Specifications
Brand Name :
SUNHOUSE
Model Number :
gfrg-10
Certification :
CE, CARB Phase 2, ISO 9001.
Place of Origin :
Foshan,Guangdong，China
MOQ :
3000pcs
Payment Terms :
T/T
Delivery Time :
15days
Packaging Details :
1220*2440mm
Name :
Fireproof Gypsum Boards
Thermal Insulation :
R-Value of 1.7
Weight :
Less than 2 pounds per square foot
Surface Finish :
Smooth
Color :
Green
Impact Resistance :
5 times stronger than drywall
Installation Method :
Screwed or nailed to studs
Material :
Glass Fiber Reinforced Gypsum
Fire Resistance :
Class A
Moisture Resistance :
Non-absorbent
Size :
4 feet x 8 feet
Thickness :
1/2 inch
Edge Profile :
Tapered
Certifications :
ASTM, CE
Description

GFRG Wall Panels Customizable Fireproof Gypsum Panels with Fiberglass Reinforcement

Product Introduction Of Gfrg Wall Panels

GFRG Wall Panels are high-performance gypsum-based building materials reinforced with layered fiberglass mesh, designed to deliver superior fire resistance and structural durability. These panels combine a dense gypsum core with embedded alkali-resistant fiberglass strands, ensuring dimensional stability and impact resistance. Ideal for commercial and residential projects, GFRG Wall Panels meet ASTM E84 Class A fire ratings.

Key Features & Benefits Of Gfrg Wall Panels

  • Key characteristics of GFRG Wall Panels include their lightweight yet robust construction, weighing 30% less than traditional cement boards while maintaining comparable strength. The fiberglass reinforcement eliminates the risk of cracking during installation or long-term use, even in high-moisture areas like bathrooms and kitchens. Unlike standard drywall, these panels feature a hydrophobic treatment that repels water absorption, reducing mold growth risks by 80%. Their pre-finished surface allows direct painting or laminating without additional priming, saving labor costs.

Application Scenarios Of Gfrg Wall Panels

  • Commercial Spaces: Fire-rated partitions in offices, shopping malls, and hotels.
  • Healthcare Facilities: Hygienic wall systems in operating rooms and laboratories.
  • Educational Institutions: Durable classroom partitions and corridor ceilings.
  • Industrial Buildings: Non-load-bearing walls in warehouses with humidity fluctuations.
  • Residential Projects: Moisture-resistant bathroom false ceilings (non-shower areas).

Parameter

Value

Test Standard

Thickness

3.2–8.8 mm (customizable up to 50mm)

JC/T 799-2007

Density

4.9–9.8 kg/m² (6–9 kg/m² for 6–8 mm)

-

Flexural Strength

20–25 MPa

ASTM D790-2002

Tensile Strength

8–15 MPa

ASTM D256-2002

Breaking Load

>1200 N (10x higher than JC/T 799)

JC/T 799-2007

Impact Strength

30–35 KJ/m²

ASTM D790-2002

Thermal Expansion Coefficient

≤0.01% (dry-wet shrinkage)

GB/T 17669.3-1999

Radioactive Nuclide Limit

A Grade(≤1.0 Bq/kg)

GB 6566-2010

VOC Emissions

≤0.1 mg/m³

GB 18580-2017

Radioactive Nuclide Limit

A Grade(≤1.0 Bq/kg)

GB 6566-2010

VOC Emissions

≤0.1 mg/m³

GB 18580-2017
