Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Specifications
Brand Name :
Gofun
Model Number :
GFM-MPL
Certification :
CE/ ISO9001
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
100 sets per year
Delivery Time :
45~90 days
Packaging Details :
International standard package for shipping
Warranty :
12 months
Voltage :
220/380/440V, according to customers
Power(w) :
7.5kw
Type :
Turnkey processing line from A to Z
Material :
SUS304/ SUS316
Capacity :
1 t/h-20 t/h
Product name :
Mango Dried Processing Machine
After-sales service :
Oversea technical support
Application :
Mango
Condition :
New
Weight :
customized
Description

Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System

Shanghai Gofun Machinery Co., Ltd. brings over 20 years of expertise to the design and manufacture of versatile fruit processing lines. Whether you are a food manufacturer looking to produce mango puree for beverage and baby food applications, mango juice for retail markets, or dried mango for snack products, our processing lines deliver the flexibility and reliability you need to maximize your return on investment.

One Line, Multiple Products

Mango is one of the world’s most popular tropical fruits, with diverse applications across the food and beverage industry. Our multi-functional mango processing lines are engineered to handle the complete range of value-added products from a single integrated system. This versatility allows you to adapt to changing market demands and seasonal availability, ensuring that your processing plant operates at optimal capacity throughout the year.

For mango puree production, the line begins with a dedicated peeling and destoning system that efficiently separates the flesh from the skin and pit while minimizing waste. The pure flesh then passes through a double-stage refining system that removes fibers and achieves the smooth consistency required for baby food, beverages, and industrial ingredients. Concentration is achieved through gentle vacuum evaporation that preserves the vibrant color and tropical flavor that consumers expect.

For mango juice applications, the line can be configured to include enzymatic treatment and clarification stages, producing either clear juice for premium beverage markets or cloudy juice for a more natural appearance. For dried mango products, the line incorporates precision slicing, osmotic treatment, and controlled drying stations that transform fresh mango into high-quality dried fruit snacks with excellent texture and extended shelf life.

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System

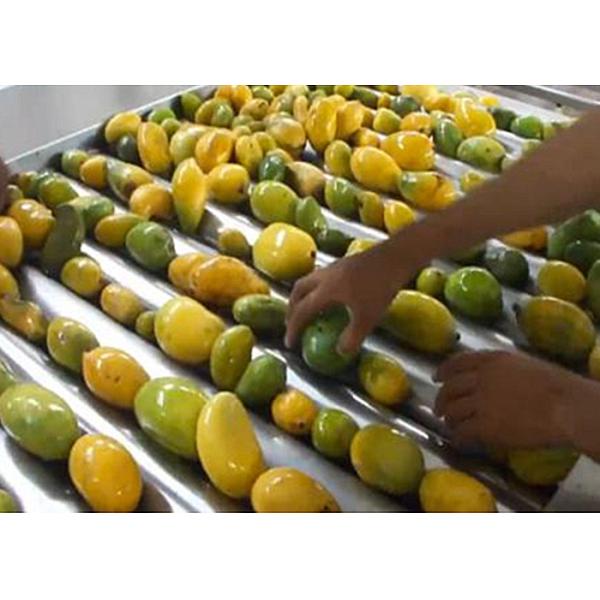

4. Sorting
Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System

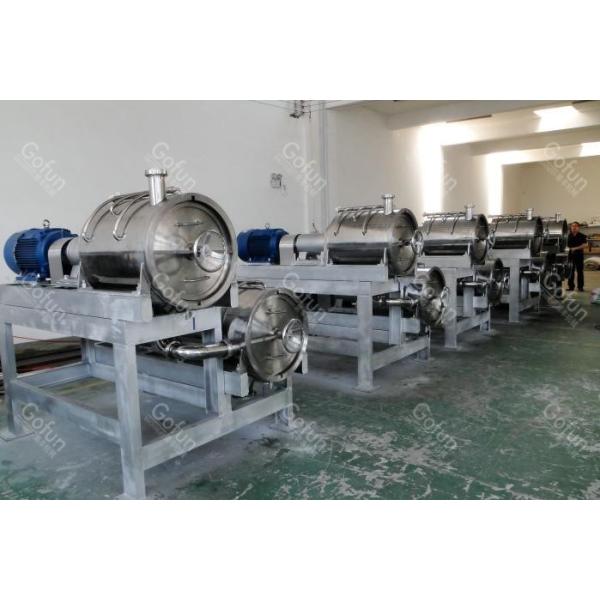

7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System

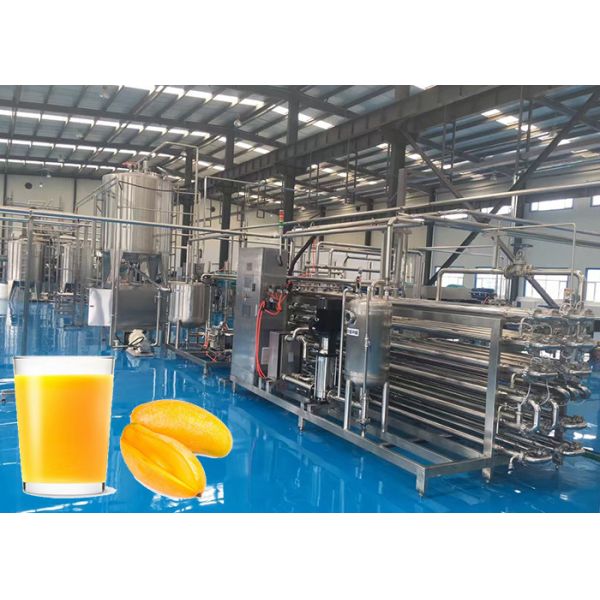

9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System

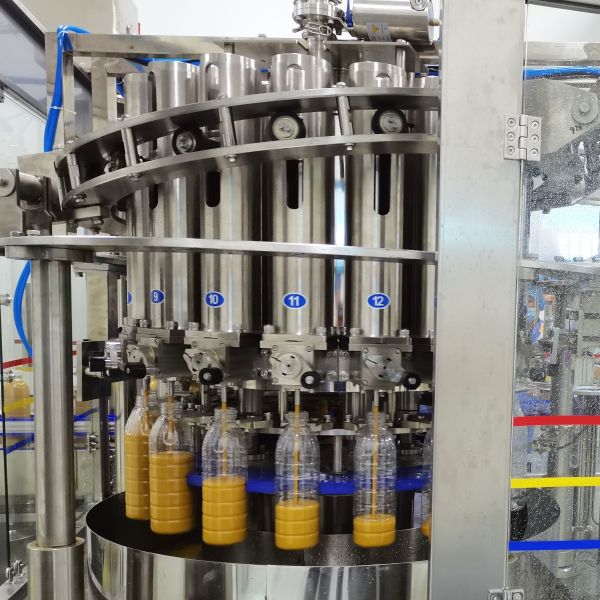

10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
Multi-Product Mango Processing Line – Puree, Juice, and Dried Fruit from One Integrated System
