Specifications
MOQ :
1 set
Delivery Time :
45~90 days
Material :
Food standard SUS 304, 316, accourding to customer
Packaging Details :
International standard package for shipping
Special process :
HPP (high pressure processing), UHP (ultra-high pressure processing)
Model Number :
GFM-APL, GFM-PPL
Capacity :
20T/day ~ 1500T/day, according to customers
Price :
Negotiable
Voltage :
220/380/440V, according to customers
Brand Name :
Gofun
Application :
Apple, pear
Payment Terms :
T/T,Western Union,L/C
After-sales service provided :
Engineers available to service machinery overseas
Type :
Turnkey processing line
Supply Ability :
20 sets per year
Warranty :
1 Year
Certification :
CE, ISO
Place of Origin :
Shanghai, China
End products :
NFC juice, cloudy juice, clear juice, concentrate juice, beverage
Product name :
Apple/pear juice processing line
Description

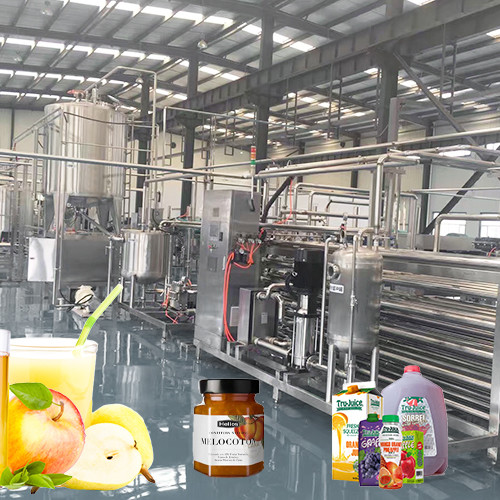

Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider

Our Turnkey Apple Processing Plant offers the flexibility to produce a full spectrum of apple-based products – including clear and cloudy juice, puree, concentrate, and hard cider – all from a single, integrated production platform. This plant is designed as a complete factory solution, encompassing everything from fruit reception and raw material handling to finished product packaging.

The plant incorporates specialized processing routes depending on the end product. For cloudy juice and puree, apples are crushed and refined through a paddle finisher to achieve the desired pulp texture, then homogenized to create a stable suspension of fruit solids. For clear juice, the line includes enzyme treatment tanks, ultrafiltration membranes, and resin columns for deacidification and color adjustment. A separate fermentation module can be integrated for cider production, consisting of jacketed fermentation tanks with precise temperature control and maturation vessels. All liquid products undergo UHT sterilization before being sent to our versatile filling section, which handles glass bottles, PET bottles, cans, and aseptic bags.

The plant is built with modular architecture that allows processors in emerging markets to start with a core juice line and add modules for puree, concentrate, or cider production as their business expands. All equipment is fabricated from food-grade 304 stainless steel, meeting international hygiene standards. With full automation through PLC controls and a centralized HMI, operators can manage multiple production recipes and monitor plant performance in real time. We provide complete turnkey services, including plant layout design, equipment installation, line commissioning, and comprehensive training for your production team.

Technical Specifications
Product Name One-stop solution for apple processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh apple
End Products Apple pulp, apple puree, apple juice, apple jam, dry apple and more
Final Product Brix 10%~12%
Final Packaging Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operators Required About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Key Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Production Process Overview
1Discharge Platform
Fresh apples are unloaded from trucks using a dedicated platform with water guns and transported to the production line via water flow. This area also serves as a pre-washing station before processing begins.
2Elevator
Transports fresh apples from external receiving areas into the processing facility.
3Washing
Fresh apples undergo thorough cleaning before skin and seed removal. Additional cleaning stages, including ultrasonic and ozone cleaning, can be integrated for enhanced sanitation.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
4Sorting
After washing, apples are visually inspected by operators to identify and remove any defective fruit, ensuring only quality produce proceeds to processing.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
5Crushing

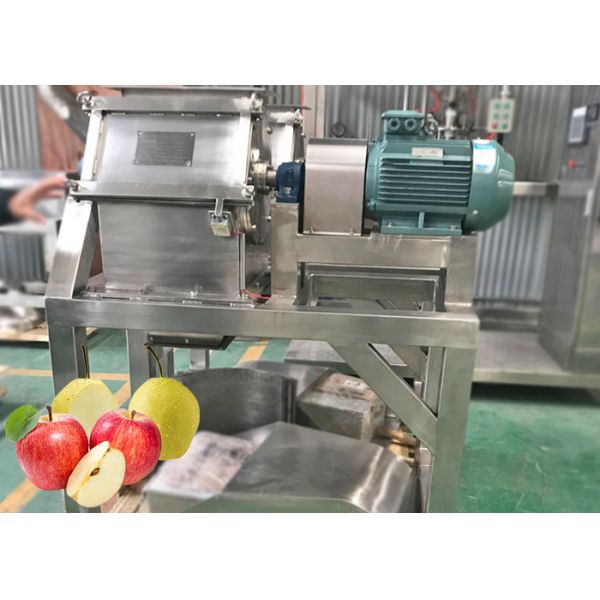

GFM-FC series crushers utilize advanced technology for high-precision crushing of apples and other fruits. This fine grinding process enhances the efficiency of subsequent processing stages.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
6Preheating
Crushed material is heated to temperatures between 45°C and 85°C. This step improves juice yield in subsequent extraction while preserving color and flavor characteristics.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
7Belt Type Juice Extractor
Advanced belt press technology delivers high-efficiency juice extraction with over 70% yield. Features energy-saving design and automated control for optimal performance.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
8Sterilizing
Tube sterilizers process apple puree and applesauce at ultra-high temperatures (approximately 115°C for 30 seconds) followed by immediate cooling. This preserves taste and nutritional content while ensuring product safety.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
9Aseptic Filling
Closed-loop aseptic filling systems work in conjunction with sterilizers. The filling chamber maintains vapor protection and sterile conditions, with mirror welding technology ensuring clean, smooth surfaces. Includes CIP and Auto SIP capabilities for various packaging formats.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
10Storage or Blending
Finished products can be stored directly or used as raw materials for further processing into apple sauce, ketchup, or other value-added products.
Turnkey Apple Processing Plant – Machinery for Juice, Puree, Concentrate & Cider
