Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Specifications
Model Number :
GFM-MPL
Capacity :
1 t/h-20 t/h
Payment Terms :
T/T,Western Union,L/C
Certification :
CE, ISO certificate
Type :
Turnkey processing line from A to Z
Price :
Negotiable
Voltage :
220/380/440V, according to customers
Supply Ability :
100 sets per year
Warranty :
12 months
Power(w) :
7.5kw
MOQ :
1 set
Delivery Time :
45~90 days
Material :
SUS304/ SUS316
Condition :
New
Place of Origin :
Shanghai
Application :
Mango
Packaging Details :
International standard package for shipping
After-sales service :
Oversea technical support
Brand Name :
Gofun
Product name :
Mango Dried Processing Machine
Weight :
customized
Description

Full Automatic Mango Processing Line 1-5T/H

This 1-5T/H full automatic mango processing line is custom-built for small and medium food factories in Southeast Asia and Africa, covering every core step from fresh mango sorting, washing, pulping, refining to final product forming. Made of food-grade 304 stainless steel, it cuts manual operation by 70% while keeping the whole process pollution-free. The line supports flexible adjustment of production capacity, which can match the mango output of local farms perfectly, avoiding raw material waste during peak harvest seasons. It comes with a 12-month warranty and on-site installation guidance, and we have already delivered over 30 similar projects in Thailand, Vietnam, Indonesia and Ghana. It can help you quickly start a mango processing business with low cost and stable operation.

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Full Automatic Mango Processing Line 1-5T/H
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Full Automatic Mango Processing Line 1-5T/H
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Full Automatic Mango Processing Line 1-5T/H
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Full Automatic Mango Processing Line 1-5T/H
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Full Automatic Mango Processing Line 1-5T/H
4. Sorting
Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Full Automatic Mango Processing Line 1-5T/H
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Full Automatic Mango Processing Line 1-5T/H
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Full Automatic Mango Processing Line 1-5T/H
7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Full Automatic Mango Processing Line 1-5T/H
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Full Automatic Mango Processing Line 1-5T/H
9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Full Automatic Mango Processing Line 1-5T/H

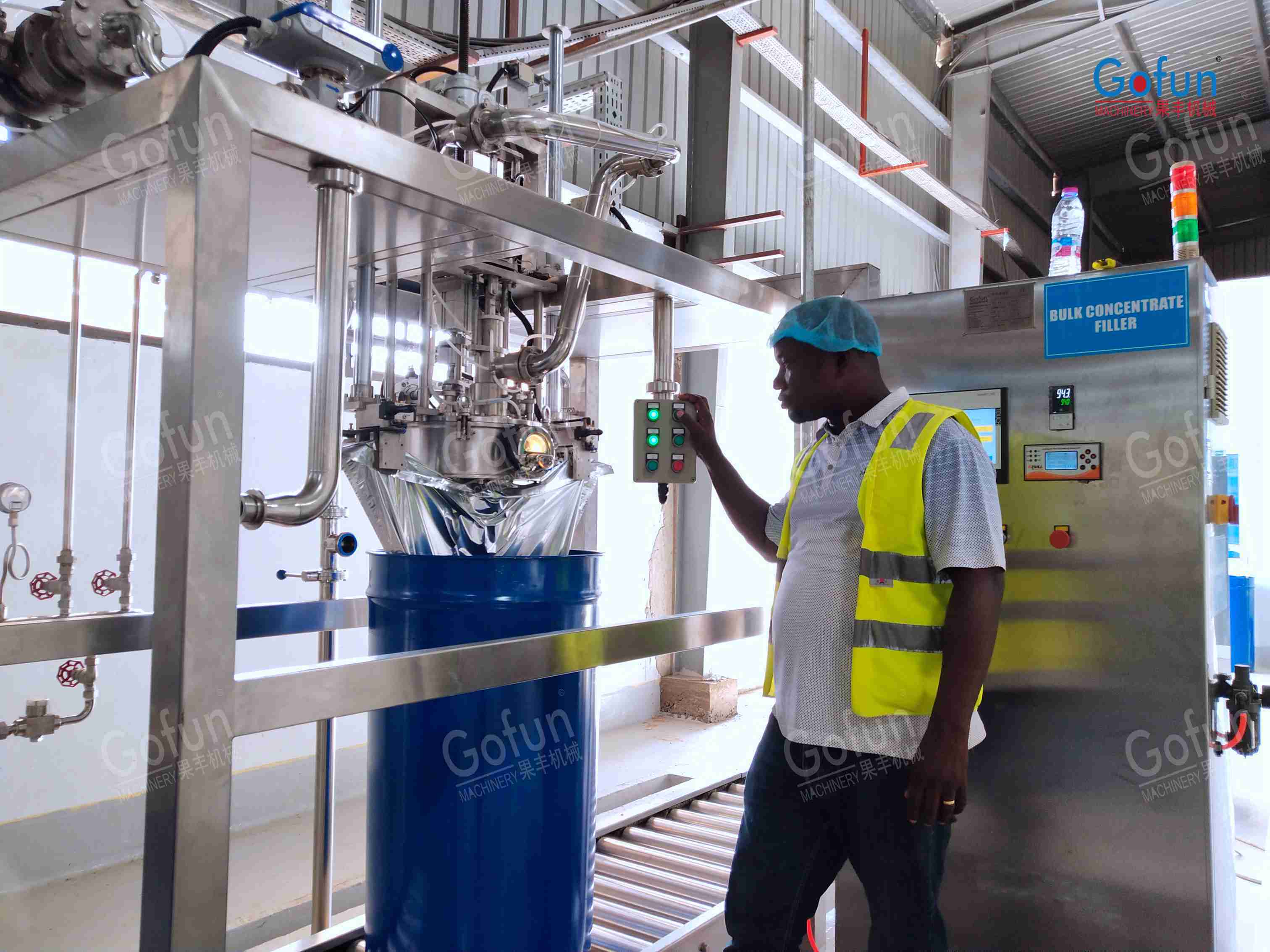

10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Full Automatic Mango Processing Line 1-5T/H
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
Full Automatic Mango Processing Line 1-5T/H
