Specifications
MOQ :
1 set
Material :
food standard SS304/ 316
Payment Terms :
T/T,Western Union,L/C
Capacity :
1 T/h ~ 20 T/h, or 20 T/day ~ 1500 T/day, according to customers
Application :
Citrus, orange, lemon, grapefruit, mandarin, tangerine, etc.
Certification :
CE, ISO certificate
Brand Name :
Gofun
Price :
Negotiable
Supply Ability :
20 sets per year
Product name :
Citrus processing / making machine / production line
Place of Origin :
Shanghai
Warranty :
1 Year
Type :
Turnkey processing line from A to Z
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/ 415V/ 440V, according to customers
Model Number :
GFM-CPL
Description
Automatic Citrus Juice Making Machine Processing Line for Orange and Lemon Juice Products

Our complete citrus processing plant provides everything you need to transform fresh oranges, lemons, grapefruits, and other citrus fruits into high-quality juice, puree, and lemonade. The fully integrated line covers washing, juicing, sterilization, and filling in one seamless turnkey solution.

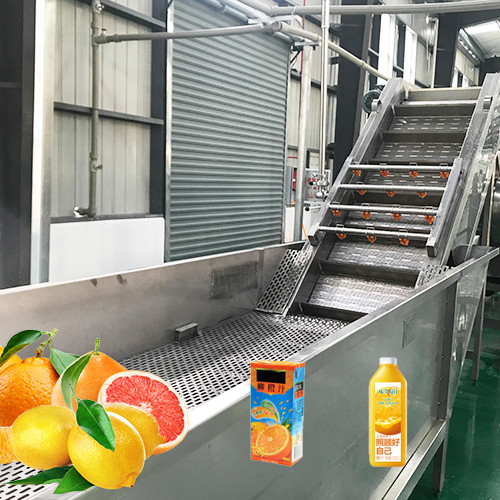

The process begins with our brush roller washing system that removes dirt, wax, and surface residues while preserving the fruit's essential oils. For citrus, we offer specialized extractors that separate juice, oil, and peel in a single pass, maximizing yield and capturing valuable by-products.

The extracted juice passes through a finisher to remove seeds and excess pulp. For puree production, we retain more pulp fiber. For clear lemonade or orange juice, a centrifuge or membrane filtration system produces crystal clear results.

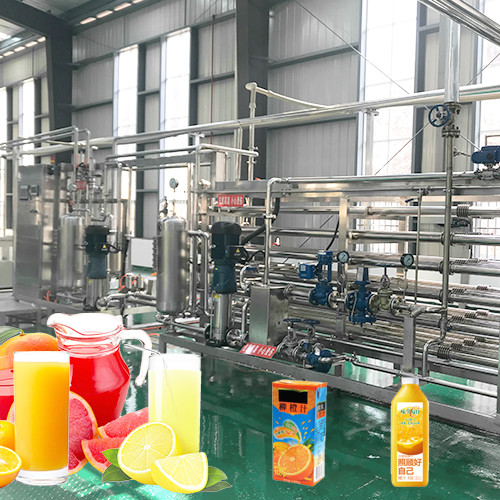

Our tubular UHT sterilization system heats the juice to 121 degrees Celsius for 5 to 15 seconds, eliminating all harmful microorganisms while preserving natural flavor, vitamin C, and color. The vacuum deaeration tank removes dissolved oxygen to prevent oxidation and browning during storage.

The aseptic filling line supports PET bottles, glass bottles, cans, and bag-in-drum packaging. The complete system includes CIP automatic cleaning and is constructed from food-grade 304 stainless steel with CE certification.

Send us your target capacity and product range. Our engineers will provide a complete layout and quotation within five business days.


Production Capabilities
Our citrus processing line efficiently transforms fresh citrus fruits into multiple product formats, accommodating popular varieties including oranges, mandarins, lemons, and grapefruits to match regional availability and market demands.
Product Range
  • Clear and cloudy citrus juices
  • Juice beverages and concentrates
  • Citrus oils and derivatives
  • Versatile options for consumer and industrial applications
Packaging Solutions
  • Aseptic bags for bulk storage and transportation
  • Single-serve sachets and stand-up pouches
  • Metal cans, PP containers, and PET bottles
  • Glass bottles and gable top containers
Production Flowchart
Complete Citrus Processing Plant | Turnkey Machinery for Orange Juice, Puree & Lemonade
Application Scope
Our comprehensive citrus processing systems handle complete fruit utilization, including oil extraction from peels, juice extraction from pulp, essence recovery from evaporators, and multiple derivative products. Our expertise enables production of diverse citrus-based commodities.
Citrus Family Processing
Complete Citrus Processing Plant | Turnkey Machinery for Orange Juice, Puree & Lemonade
Company Profile
Business Type Manufacturer
Country China
Main Products Turn Key Solution for Fruit & Vegetable Processing and Packaging Complete Line
Production Capacity 30 sets per year (whole line)
Established Year 2009
Main Markets Africa, South America, Asia, Europe
Our Services
Turnkey Solution Complete one-stop service including warehouse design (water, electricity, steam), worker training, machine installation and commissioning, and lifetime after-sales support.
Consulting & Conception Professional consulting services with thorough analysis of your requirements to develop customized solutions. Transparent planning from conception to implementation.
Project Planning Professional project management with defined timeframes, resources, milestones, and objectives to ensure successful investment realization.
Design & Engineering Collaborative development by specialists in mechatronics, control engineering, programming, and software development using professional tools.
Production & Assembly Experienced engineering implementation with close coordination between project managers and assembly teams for efficient, high-quality production results.
Integration & Commissioning Smooth installation and setup by assigned engineers and technicians who accompanied project development, ensuring all interfaces function properly.
