Complete Tomato Processing Plant Layout Design

This complete tomato processing plant layout design solution is a full B2B service for new project builders that want to build a standardized, high-efficiency tomato processing factory from scratch. We provide one-stop service covering plant layout planning, equipment selection matching, workflow optimization, international hygiene standard compliance guidance and final turnkey project delivery.
Different from buying scattered separate machines from different suppliers, this full plant solution arranges every processing unit and equipment position scientifically according to your target daily processing capacity, local workshop space and local food safety regulation requirements. The whole workflow follows raw material entering one side and finished product outputting the other side, avoiding cross flow of raw material and finished product in workshop, which greatly reduces hygiene risk.
We will provide full 3D plant layout drawing, equipment foundation construction drawing, utility consumption calculation of water, electricity and steam, and worker post operation guide. The solution can match different capacity levels from small 50 ton per day mini factory to large 1500 ton per day industrial scale plant, fully adapting to different investment budget of B2B clients.
Many tomato processing factory projects built with this full plant solution have been running stably in Africa and Southeast Asia. Clients feedback that this systematic layout design avoids many unnecessary design mistakes in early stage, helping them save extra project modification cost and shorten total project construction period significantly..

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Complete Tomato Processing Plant Layout Design
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Complete Tomato Processing Plant Layout Design
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Complete Tomato Processing Plant Layout Design
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Complete Tomato Processing Plant Layout Design
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Complete Tomato Processing Plant Layout Design
4. Sorting
Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Complete Tomato Processing Plant Layout Design
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Complete Tomato Processing Plant Layout Design
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Complete Tomato Processing Plant Layout Design
7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Complete Tomato Processing Plant Layout Design
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Complete Tomato Processing Plant Layout Design
9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Complete Tomato Processing Plant Layout Design

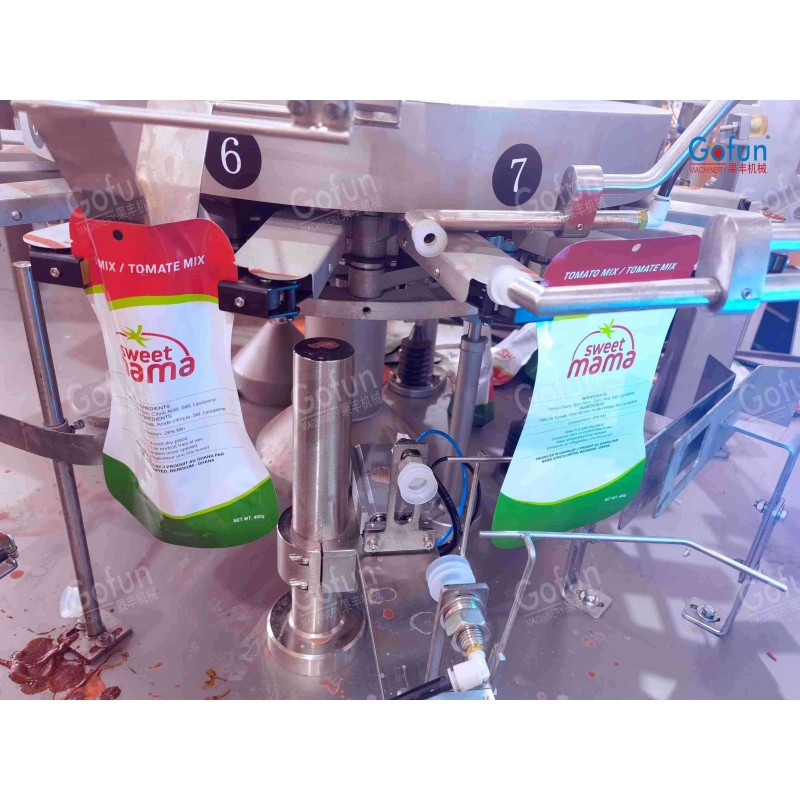

10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Complete Tomato Processing Plant Layout Design
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Complete Tomato Processing Plant Layout Design
Complete Tomato Processing Plant Layout Design
Complete Tomato Processing Plant Layout Design
