Complete Tomato Processing Plant Machinery | Turnkey Solution

Specifications

Model Number :

GFM-MPL

Capacity :

1 t/h-20 t/h

MOQ :

1 set

Delivery Time :

45~90 days

Material :

SUS304/ SUS316

Brand Name :

Gofun

Product name :

Mango Dried Processing Machine

Packaging Details :

International standard package for shipping

Payment Terms :

T/T,Western Union,L/C

Certification :

CE, ISO certificate

Type :

Turnkey processing line from A to Z

Price :

Negotiable

Voltage :

220/380/440V, according to customers

Supply Ability :

100 sets per year

Warranty :

12 months

After-sales service :

Oversea technical support

Power(w) :

7.5kw

Place of Origin :

Shanghai

Application :

Mango

Condition :

New

Weight :

customized

Description

Complete Tomato Processing Plant Machinery | Turnkey Solution

This complete tomato processing plant machinery is an all-in-one turnkey solution for new startup tomato processing factories, which integrates every core unit you need to turn fresh tomatoes into commercial tomato products. It avoids the trouble of scattered equipment selection and mismatching, helping you launch production quickly and shorten the return on investment cycle.

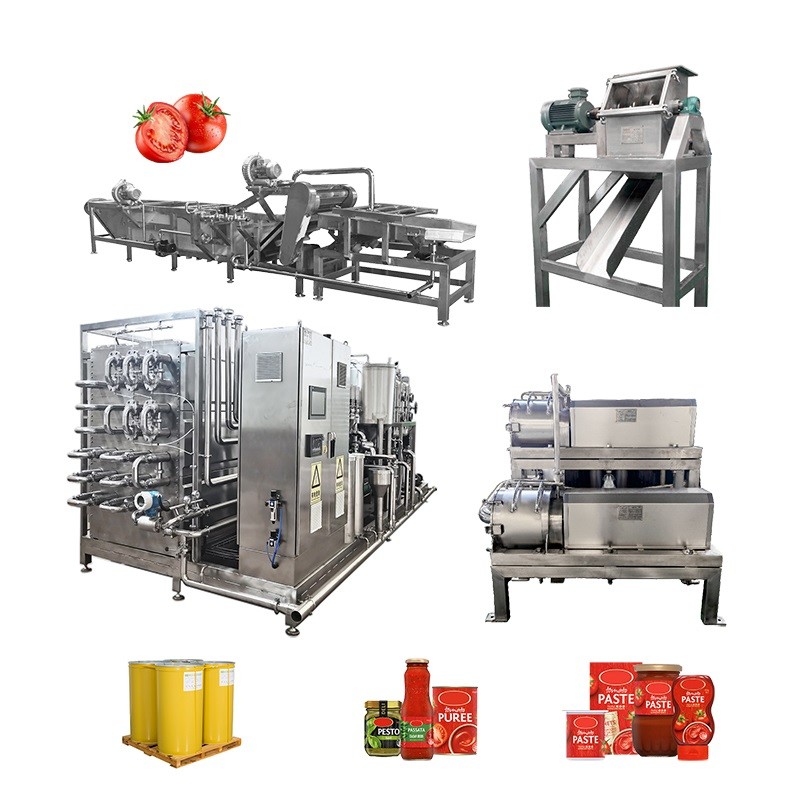

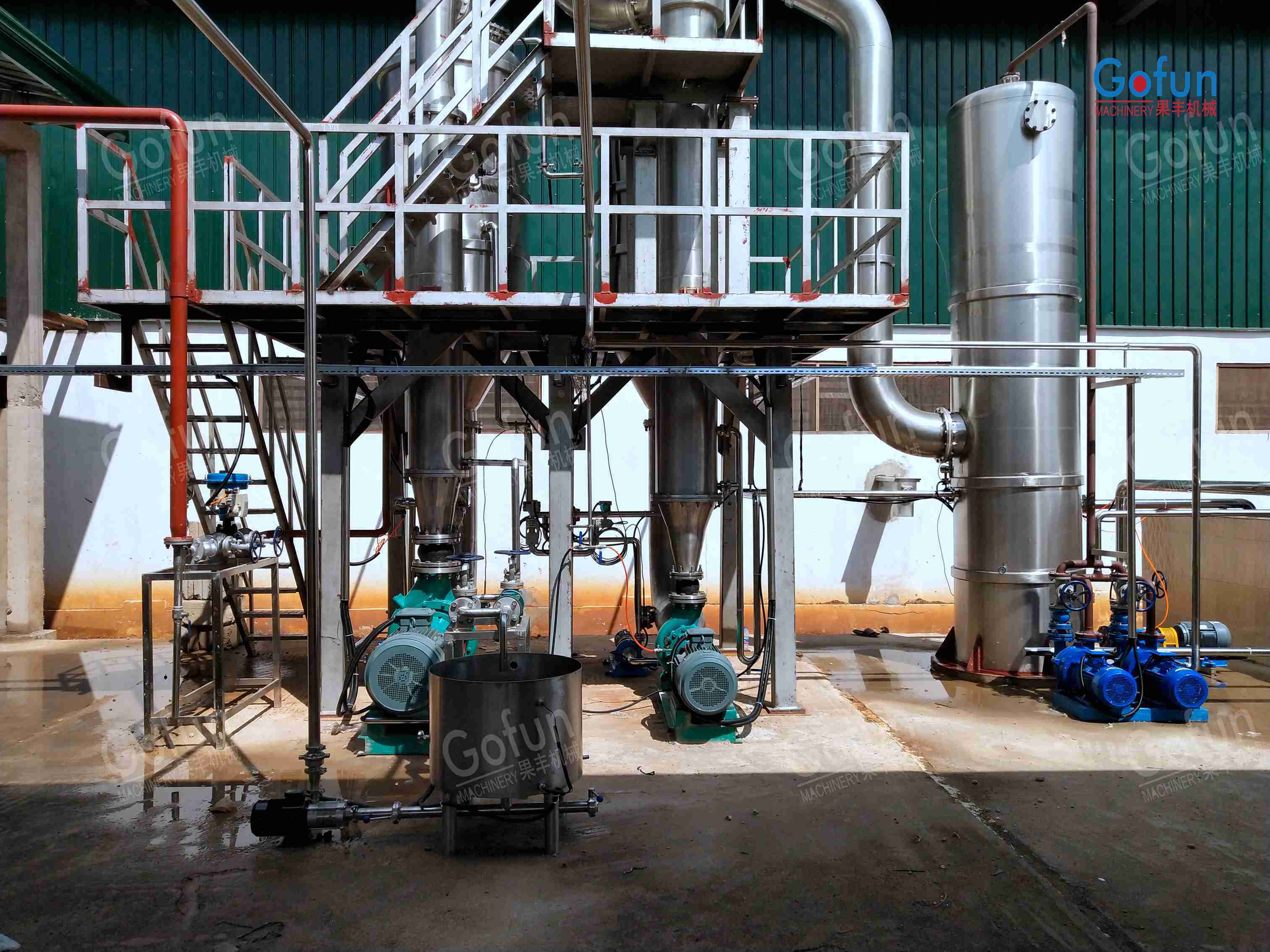

The full set equipment covers fresh tomato receiving, bubble washing, color sorting, crushing, preheating, multi-stage refining, vacuum concentration, sterilization and different packaging sections. It supports adjustable capacity from 500kg/h to 5000kg/h, perfectly matching the production rhythm of small to medium tomato processing plants in harvest season.
All product contact parts are made of food grade 304 stainless steel, fully meeting international food hygiene requirements. The whole line adopts closed pipeline design, which effectively reduces manual contact and cross contamination risk. Equipped with semi-automatic CIP cleaning function, it greatly lowers the daily operation difficulty for factory technicians.
We provide full one-stop service including factory layout consulting, equipment installation guidance, local operator training and long-term after-sales technical support. This solution has been widely adopted by tomato processing clients in Southeast Asia, Africa and South America, helping them build stable and profitable tomato processing business.

Technical Specifications

Product Name	One-stop solution for mango processing line
Fresh Fruit Inlet Capacity	500kg per hour ~ 25 tons per hour, customized
Raw Material	Fresh mango
End Products	Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix	14%~20%

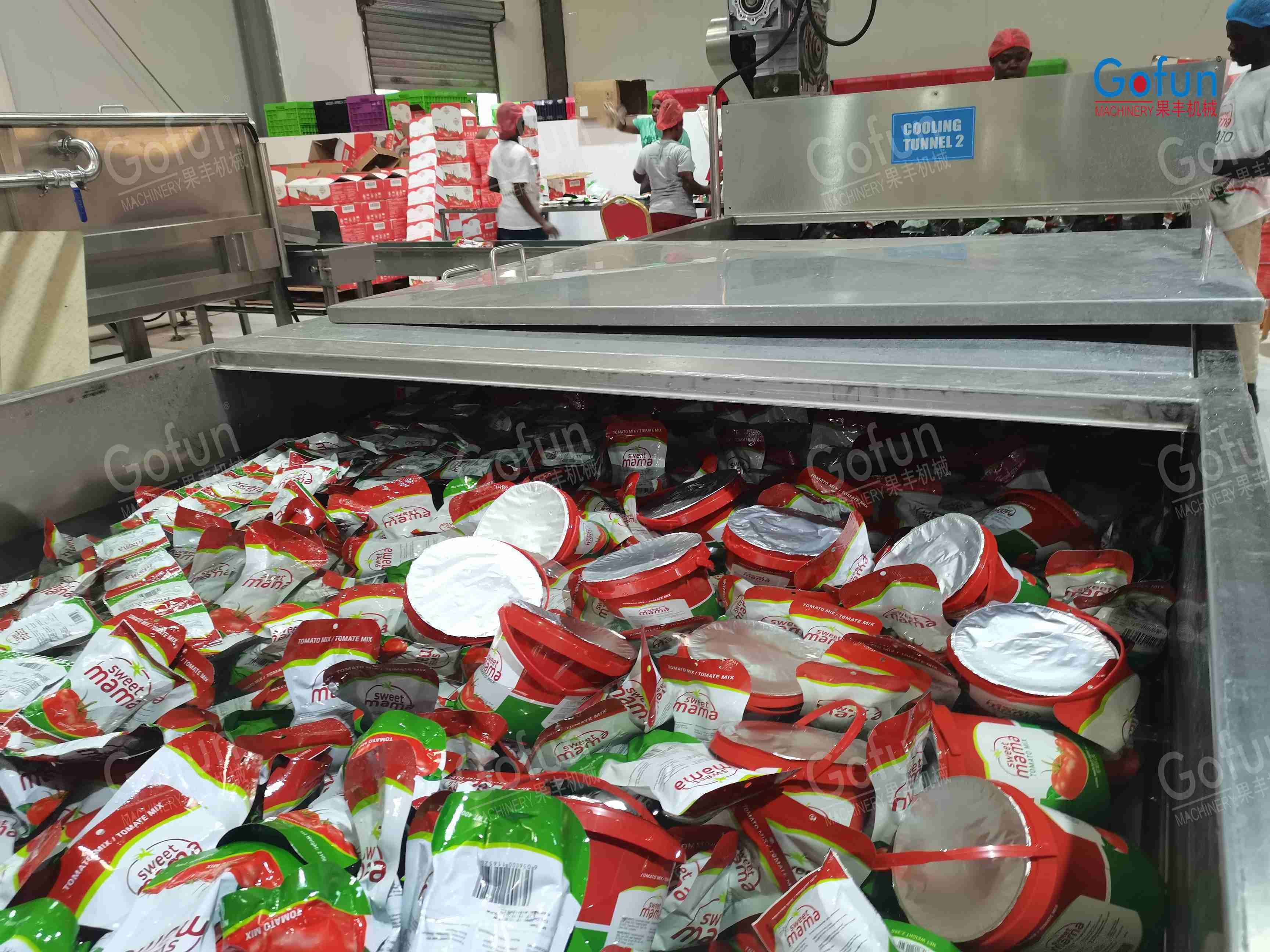

Final Package Options	Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material	Food grade SUS304 or SUS316
Warranty	12 months after commissioning
Operator Requirement	About 10~12 persons
Voltage	380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages	Energy-saving, High efficiency, Water-saving, Stable performance

Processing Flowchart

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Final Products & Packaging Options

Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.

Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.

Key Features

Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services

Detailed Process Steps

1. Discharge Platform

Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.

2. Elevator

This machine transports fresh mango from outside the building to inside the processing facility.

3. Washing

Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.

4. Sorting

Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.

5. Destoning

Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.

6. Preheating

Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.

7. Pulper and Refiner

Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.

8. Horizontal Spiral Centrifugal

Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.

9. Sterilizing

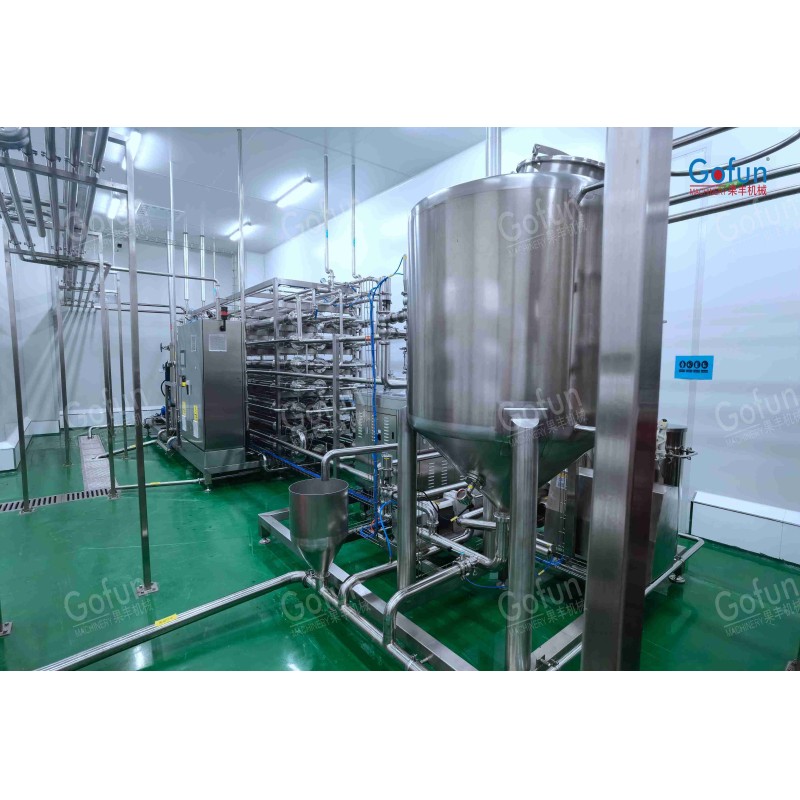

Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.

10. Aseptic Filling

Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.

11. Storage or Blending

Final product can be stored as-is or used as raw material for producing mango sauce or other products.
