High Tensile FRP Strength Member 3mm Rods No Cracks
High Tensile FRP Strength Member 3mm Rods No Cracks
High Tensile FRP Strength Member 3mm Rods No Cracks
High Tensile FRP Strength Member 3mm Rods No Cracks
Specifications
Brand Name :
Dingrong
Model Number :
Φ0.4-Φ5.0
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000Km/Month
Delivery Time :
30days

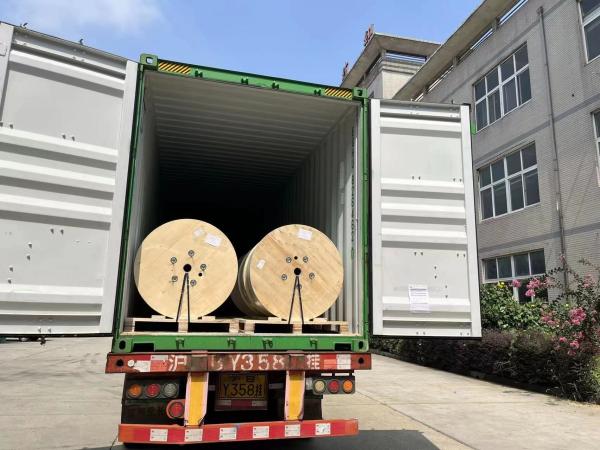

Packaging Details :
Plywood reel or plastic reel
Spool length :
50.4km/reel, 25.2km/reel or customized
Function :
FRP Strength Member
Product Name :
FRP Reinforcement
Material :
FRP
Packing :
Plywood reel or plastic reel
High temperature Bending test (100℃, 24h, 30D) :
no cracks, no uneven spots, surface smooth
Number of conductors :
≥ 10,2,4,8,12
Color :
Customized
Oem :
available
Description

3mm Frp Rods High Tensile FRP Strength Member

Non-metallic FRP Strength Member, a di-electric composite cable strength member widely known as FRP/ GRP rod, is to use vinyl ester resin as foundation combined with the strength of glass fiber through pultrusion technology to produce a new type of high performance non-metallic composite material. Without drawbacks of traditional metallic strength member, FRP strength member features excellent anti-corrosion, electromagnetic interference free, high tensile strength, low weight, saving energy and environmentally friendly, which are now widely used in various optical fiber cables.

Specification Of FRP


• Light Weight & Excellent Tensile Strength
• Prevent Cable Buckling
• Most Suited for Multi-Loose Tube, Uni Tube, Slotted Core & Ribbon Cable Designs
• Used as Central or Peripheral Reinforcement in Fibre Optic Cables
• Dual Advantage : Reinforcement during Installation as well as Reduce Stress on Signal Carrying Optic Fibre /Conductor
• Prevent Sagging in Aerial Installation
• Cost Effective Solution as a Strength Member

Property Value
Appearance No deffets harmful use such as cracks, uneven spots, and contamination
Tensile strength ≥1100 Mpa
Tensile modulus ≥50 Gpa
Flexural strength ≥1100 Mpa
Flexural modulus ≥50 Gpa
Elongation at break ≤4 %
Diameter tolerance ±2% mm
Minimum bending radius 40*D mm
Density (g/cm3) 2.05-2.15
High temperature bending test (50D,100℃,120h) No bur, crack and break
Low temperature bending test (50D,-40℃,120h) No bur, crack and break
