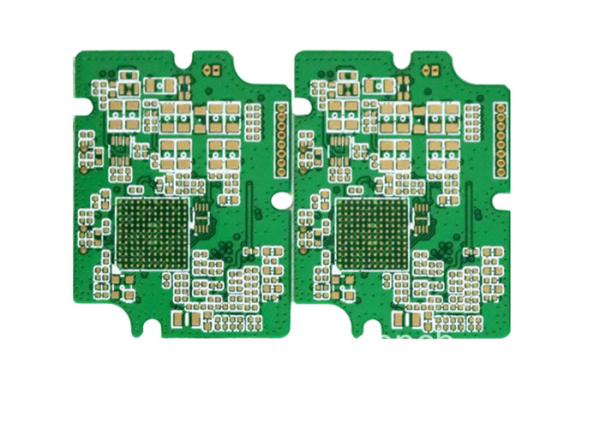

High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Rapid Prototyping Circuit Boards
High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Rapid Prototyping Circuit Boards
High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Rapid Prototyping Circuit Boards
High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Rapid Prototyping Circuit Boards
Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union, L/C, MoneyGram
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Layer of number :
10 layer
Solder mask :
green
Copper thk :
1OZ
Color :
green
Special :
high temperature resistance
Material :
Kingboard FR4
Description

High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Line Space And Width


Specification:

Model:XCEF Board size:5*6cm
Board Thickness:1.2MM Profile:V-Cut
Layer:10 Test:flying probe for sample. test jig for mass

Parameter:

Annular Ring

5 mil/side or Greater (Min. Design)

Finish Plating

Immersion Gold

Copper THK

1oz

Trace/Space Width

8 Mils or Greater

Drill Clearance

0.1mm(laser drilling)

Plated Slots

0.036 or Greater

Smallest Hole

0.1mm or Greater
Test Jig

One-off cost

Tooling

Yes

Soldermask Type

LPI Glossy, LPI-Matte, SR1000

Soldermask Color

Green, Red, Blue, Black, White, Yellow,

Legend Color

White, Yellow, Black, Red, Blue

CNC Route Point

Any

Minimum Route Width

0.031”

Scoring

Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*

Body Gold

HARD*, IMMERSION* (up to 50 MICRON GOLD)

Data File Format

Gerber 274x with embedder aperture

Fab. Drawing Format

DXF, HPGL, DWG, PDF, Gerber

E.T Testing

Flying Probe, Single Sided, 1up Plate, Clampshell, Net List

Counter Sink / Counter Bore

Availiable up to 0.250 Diameter

High Thermal Conductivity FR4 PCB 10 Layer 3 Mil Rapid Prototyping Circuit Boards
Advantage:

1.Sufficient materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16)
2.24 hours quick sample service
3.Top technology and newest machine
4.Within 2 hours quote service
5. have schematic without gerber, pleasure to design it for you


Description:

Xinchenger Electronics have 12 years PCB production experience.

We have 6 Years high frequency pcb production experience
We are certified by ISO13485, TS16949, ULE332411, ISO14001, ISO9001
70% of our customers are from Europe and North America
We use very good material, such as KB, Shengyi, etc
100% of our prodcuts are tested and 100% pass before delivery
Fast samples for your test
