Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union, L/C, MoneyGram
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Description

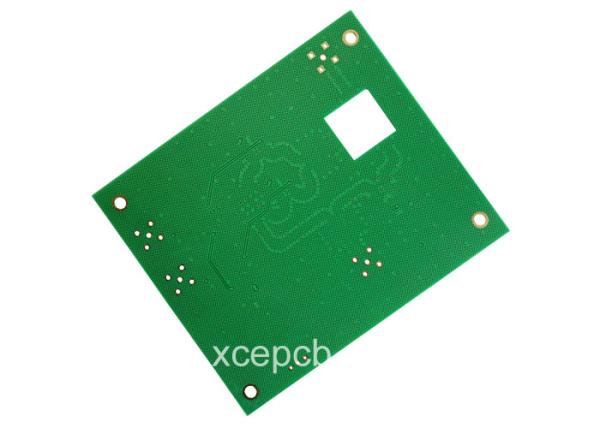

Multilayer Hi Frequency PCB FR4 Impedance Printed Circuit Board

Specification:

Impedance means at a certain frequency, electronic devices transmission signal line, relative to a reference layer, high-frequency signals or electromagnetic wave by resistance during propagation is called the characteristic impedance, it is actually the electrical impedance, inductance resistance, capacitance resistance etc.

Model:XCEF Board size:8*9cm
Origin:China Material:FR4
Layer:2 Rigid printed circuit board

Parameter:

Finish Plating

Hasl lead free

Copper THK

1oz

Trace/Space Width

8 Mils or Greater

Drill Clearance

0.1mm(laser drilling)

Plated Slots

0.036 or Greater

Smallest Hole

0.1mm or Greater

Test Jig

One-off cost

Tooling

Yes

Soldermask Type

LPI Glossy, LPI-Matte, SR1000

Soldermask Color

Green, Red, Blue, Black, White, Yellow,

Legend Color

White, Yellow, Black, Red, Blue

CNC Route Point

Any

Minimum Route Width

0.031”

Scoring

Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*

Body Gold

HARD*, IMMERSION* (up to 50 MICRON GOLD)

Data File Format

Gerber 274x with embedder aperture

Fab. Drawing Format

DXF, HPGL, DWG, PDF, Gerber

E.T Testing

Flying Probe, Single Sided, 1up Plate, Clampshell, Net List

Counter Sink / Counter Bore

Availiable up to 0.250 Diameter

Service:

Customer question:

1) What is the single line impedance & impedance differential & differential impedance. Impedance more smaller more better?
2) impedance 80 +/- 10% ,what's mean of "+/- 10%" ,is tolerance? This range is the bigger the better, or the smaller the better?

Our answer:

1) The single line is a line impedance ,differential = differential refers to the impedance of two parallel lines. Impedance values depend on the performance of electronic components.
2) +/- 10% means tolerance. The smaller tolerance on behalf of the higher requirements, making tecnology more harder

Advantage:

sufficient stocks of hi-frequency pcb materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies.
special and high precision printed circuit boards with the strong production capability of 2 to 28 layers of highly precise impedence,multi-layer blind buried,multi-layer mix-compression,highTG, copper substrate,Ceramic substrate PCB.
