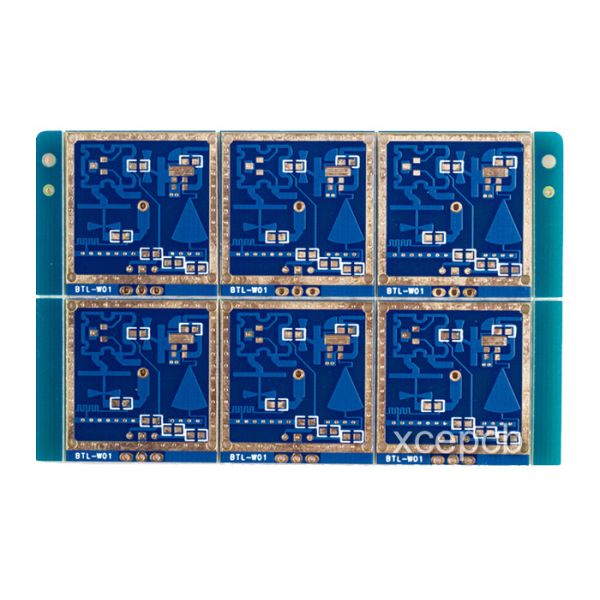

High Frequency FR4 Sensor PCB Boards 5.8GHZ For Induction Lamp , Blue or Custom
High Frequency FR4 Sensor PCB Boards 5.8GHZ For Induction Lamp , Blue or Custom
Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Color :
blue
Min line space :
5mil
Min line width :
5mil
Copper thickness :
2OZ
Size :
3*3cm
Board THK :
1.0MM
Panel :
2*3
Surface finish :
ENIG
Description

High Frequency FR4 Sensor PCB Boards 5.8GHZ For Induction Lamp

Quick Detail:

Model: XCEF

Brand: XCE

Name: Sensor PCB

Origin: China

Material: FR4

Number of layer: 2

Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
Special technology Inpedance,blind buried via,thick gold,aluminumPCB
Surface finish HASL,lead free,Immersion gold,immersion tin,immersion silver,ENIG,Blue glue,gold plating

PCB CAPABILITIES LIST

Product Features

Standard

Advanced

Micro Electronics

PC Board Attributes

Min Layer count

1

1

1

Max Layer Count

24

26+

26+

Min Board Thickness

.010"

.004"

.004"

Max Board Thickness

.200"

.200" +

.200" +

Min Core Thickness

.002"

.002"

.002"

Min Dielectric

.002"

.001"

.001"

Min. Starting Copper Foil Weight

9 micron

3 micron

3 micron

Max. Finished Copper Thickness (O/L)

6 oz

> 6 oz

.0015"

Max. Finished Copper Thickness (I/L)

4 oz

> 4 oz

.001"

Maximum Panel Size

21" x 29"

21" x 29"

12" x 18"

Minimum Panel Size

12" x 18"

12" x 18"

8" x 8"

Smallest Mech Drill Diameter

.0059"

.004"

.004"

Smallest Laser Drill Diameter

.0030" / .0080"

.0025" / .0100"

.0025" / .0100"

Description

1.Professional manufacturer of PCB specialized in single-sided PCB, double-sided PCB, multilayer PCB.

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Advantages:

1) We have professional research team.

2) No MOQ,small order are aslo welcome,From Prototype to Mass production.

3) All products are 100% tested working before sent to you.

4) One stop PCB solution

5) We have professional sales team, so please do not hesitate to contact us if you have any question
