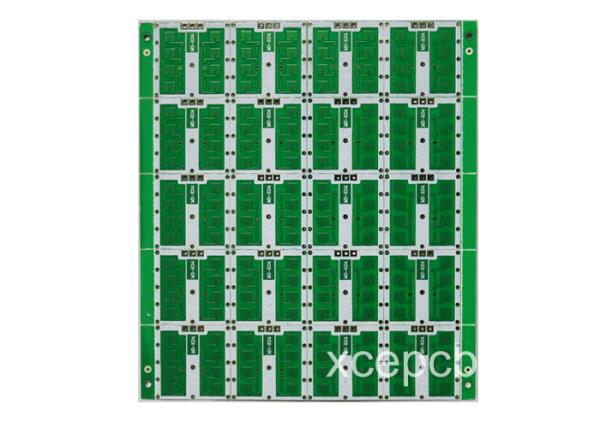

24GHZ Rogers K-band X-band Rigid Custom PCB Boards for Automatic Door Module

Description:

Model: XCER Application; Automatic door
Layer: 2 Name: 24GHZpcb
Size: 3*2 cm Thickness: 0.6mm

Specification

Min bonding pad space

10mil

PTH aperture tolerance

10mil

NPTH aperture tolerance

10mil

Hole site deviation

10mil

Profile tolerance

±0.10mm

Board bend&warp

≤0.7%

Insulation resistance

＞1012Ωnormal

Through-hole resistance

＜300Ωnormal

Electric strength

＞1.3kv/mm

Current breakdown

10A

Peel strength

1.4N/mm

Soldmask regidity

＞6H

Thermal stress

288℃20Sec

Testing voltage

50-300v

Min buried blind via

N/O

Outer cooper thickness

3oz

Inner cooper thickness

3oz

Aspect ratio

8:1

SMT min green oil width

0.08mm

Min green oil open window

0.05mm

Insulation layer thickness

0.075mm-5mm

Aperture

0.2mm-0.6mm

Advantage:

  • Blind and/or buried vias
  • Via-in-pad
  • Through vias from surface to surface
  • 20 um circuit geometries
  • 30 um dielectric layers
  • 50 um laser vias
  • 125 um bump pitch processing

Knowledge:

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2
