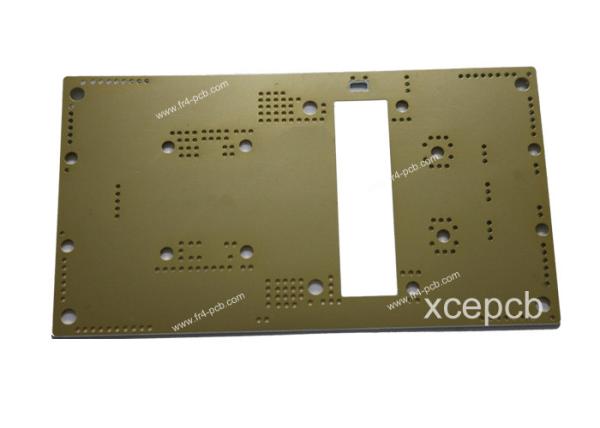

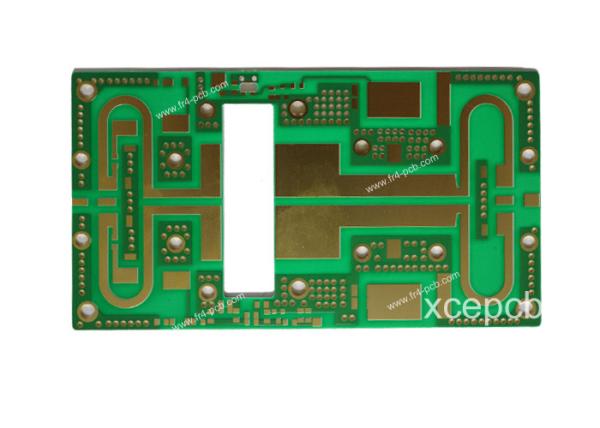

Rogers PCB Professional RF and Broadcasting Equipment Circuit Board for Radio and TV Applications

Specification

  • 2 layer
  • White solder mask,
  • Model:XCER
  • Copper THK: 1OZ
  • Location: Shenzhen

Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital

Advantage

1.Sufficient high frequency material raw

2. PCB Have the comprehensive quality control system

3. PCB good price

4. PCB quick turn delivery time from 48hours.

5. PCB certification(ISO/UL E354810/RoHS)

6. 12 years experience in exporting service

7. PCB is no MOQ/MOV.

8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting

XCE PCB technical specification
Annual stock meterial Rogers,Taconic,Arton,Isola,F4B,TP-2,FR4,High TG,Halogen free
Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance　　 T≥0.8mm±8%,T＜0.8mm±5%
Wall hole copper thickness　　 ＞0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance ＞1012Ωnormal
Through-hole resistance ＜300Ωnormal
Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
Special technology Inpedance,blind buried via,thick gold,aluminumPCB
Surface finish HASL,lead free,Immersion gold,immersion tin,immersion silver,ENIG,Blue glue,gold plating
