Rogers Material Power Amplifiers HF PCB High Speed Digital In 0.79mm
Rogers Material Power Amplifiers HF PCB High Speed Digital In 0.79mm
Rogers Material Power Amplifiers HF PCB High Speed Digital In 0.79mm
Rogers Material Power Amplifiers HF PCB High Speed Digital In 0.79mm
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
Rogers
Layer :
4
Color :
Green
Min line space :
5mil
Min line width :
5mil
Copper thickness :
1OZ
Board size :
120*75mm
Panel :
1
Surface :
ENIG
Description

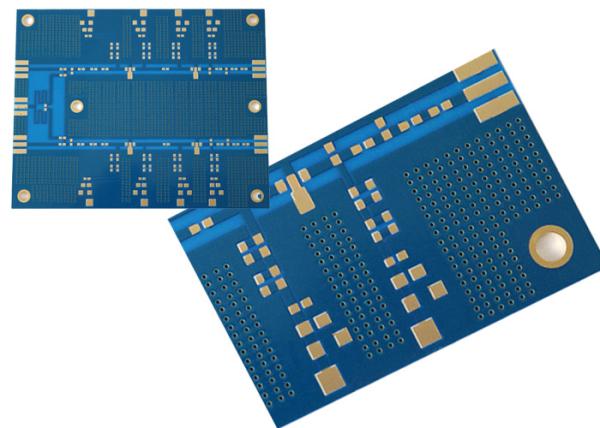

High Frequency Rogers Material For Power Amplifiers High Speed Digital In 0.79mm

Quick detail:

Origin:China Special: High frequency pcb
Layer:4 Thickness:0.79mm
Surface: ENIG Hole:0.8

Specification:

High frequency pcb high-performance insulating material for microwave, radio frequency (RF) and high-speed digital signal processing (DSP) market with PTFE/type woven glass fiber fabric sheet.This material can be applied to LNAs LNBs, PCS/PCN antenna system, global positioning system (GPS) and UMTS antenna system,And the power amplifier, passive components, collision avoidance radar system, aviation help guide remote control technology and system of the phased array radar.

High frequency materials are UL 94V-0 rated for active devices and high power RF designs.

Typical Applications

  • Cellular Base Station Antennas and Power Amplifiers
  • Microwave point to point (P2P) links
  • Automotive Radar and Sensors
  • low dielectric loss
  • RF Identification (RFID) Tags
  • The stability of the dielectric constant
  • An extremely low water imbibition
  • LNB’s for Direct Broadcast Satellites

  • Automotive Antennas / RFID

    Back-up Aids
    Collision Avoidance
    Low-Noise Block Downconverter (LNB)
    Mobile Infrastructure Antennas
    Point to Point Digital Radios
    Power Amplifiers
    High Reliability

    Airborne Antenna Systems
    Broadcast Satellites
    Ground Based Radar Systems
    Millimeter Wave Applications
    Missile Guidance Systems
    High Speed Digital

Rogers high frequency pcb widely used in the area of high technologies like communication device,Electronics,Aerospace,Military industry and so on. we have accumulated abandunt experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena etc.

Parameter:

o Item Data
1 Layer: 1 to 24 layers
2 Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
3 Board thickness: 0.20mm to 3.4mm
4 Copper thickness: 0.5 OZ to 4 OZ
5 Copper thickness in hole: >25.0 um (>1mil)
6 Max. Board Size: (580mm×1200mm)
7 Min. Drilled Hole Size: 4mil(0.1mm)
8 Min. Line Width: 3mil (0.075mm)
9 Min. Line Spacing: 3mil (0.075mm)
10 Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
11 Solder Mask Color: Green/Yellow/Black/White/Red/Blue
12 Shape tolerance: ±0.13
13 Hole tolerance: PTH: ±0.076 NPTH: ±0.05
14 Package: Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing
15 Certificate: UL,SGS,ISO 9001:2008
16 Special requirements: Buried and blind vias+controlled impedance +BGA
17 Profiling: Punching, Routing, V-CUT, Beveling

Features

• High Thermal Performance
 Tg: 180°C (DSC)
 Td: 340°C (TGA @ 5% wt loss)
 Low CTE for reliability
• T260: 60 minutes
• T288: 30 minutes
• RoHS Compliant
• UV Blocking and AOI Fluorescence
 High throughput and accuracy during PCB
fabrication and assembly
• Superior Processing
 Closest to conventional FR-4 processing
• Core Material Standard Availability
 Thickness: 0.002″ (0.05 mm) to 0.125″
(3.2 mm)
 Available in full size sheet or panel form
• Prepreg Standard Availability
 Roll or panel form
 Tooling of prepreg panels available
• Copper Foil Type Availability
 Standard HTE Grade 3
 RTF (Reverse Treat Foil)
• Copper Weights
 ½, 1 and 2 oz (18, 35 and 70 μm) available
 Heavier copper available upon request
 Thinner copper foil available upon request
• Glass Fabric Availability
 Standard E-glass
 Square weave glass fabric available
 Spread glass fabric available
• Industry Approvals
 IPC-4101C /21 /24 /26 /97 /98 /99 /101 /126
 UL - File Number E41625 as PCL-FR-370HR
 Qualified to UL's MCIL Program

Rogers material in stock:

Brand Model Thickness(mm) DK(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO4003 0.254 0.508,0.813,1.524 3.38
RO4350 0.254 0.508,0.762,1.524 3.5
RO5880 0.254.0.508.0.762 2.2
RO3003 0.127,0.508,0.762,1.524 3
RO3010 0.635 10.2
RO3206 0.635MM 10.2
R03035 0.508MM 3.5
RO6010 0.635MM, 1,27MM 10.2
