Specifications
Horsepower :
150-250hp
Engine Capacity :
4-6L
Heat Preservation Type :
Foam Material
Tire Certification :
ISO
Tire Design :
Radial
Condition :
New
Colour :
White or Other Colour
Transport Package :
CKD
Specification :
as per request
Trademark :
SNOWFALL
Origin :
China
HS Code :
8707901000
Supply Ability :
200 sets per month
Emission Standard :
Euro 5
Power :
Diesel
Load Capacity :
1-10t
Drive Wheel :
4×2
Shape :
Single Bridge
Seats :
≤5
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
SNOWFALL
Certification :
ISO , SGS, CE
MOQ :
1set
Price :
Negotiation
Packaging Details :
flat pack
Delivery Time :
10 days
Description
Foam Material Heat Preservation Type Cargo Honeycomb CKD Dry Truck Body Customization
Product Overview
Dry truck body designed for optimal cargo protection and thermal efficiency with customizable CKD (Completely Knocked Down) or assembled configurations.
Foam Material Heat Preservation Dry Truck Body with Lightweight FRP Honeycomb and Customizable Size Foam Material Heat Preservation Dry Truck Body with Lightweight FRP Honeycomb and Customizable Size Foam Material Heat Preservation Dry Truck Body with Lightweight FRP Honeycomb and Customizable Size Foam Material Heat Preservation Dry Truck Body with Lightweight FRP Honeycomb and Customizable Size Foam Material Heat Preservation Dry Truck Body with Lightweight FRP Honeycomb and Customizable Size
Material Construction
Roof, Side Wall, Front & Rear Door: FRP with PP Honeycomb panel
Floor: Steel checkered plate

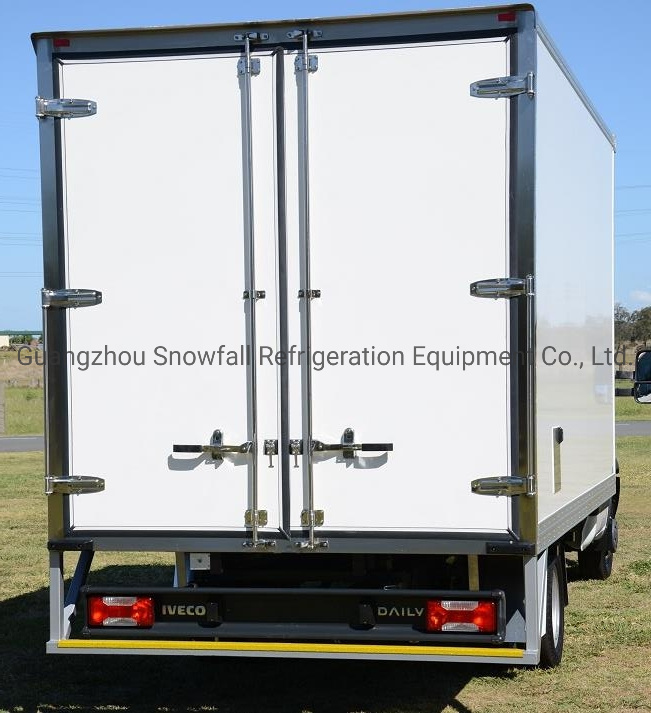

Door: Double rear door with stainless steel door frame and locking system
Assembly Options: Available in CKD or assembled type
Specifications
Panel Structure: Glass reinforced fiber plastic + PP honeycomb cell core + glass reinforced fiber plastic
GFRP Thickness: 1mm to 2.5mm
Surface: Anti-slip pattern and diamond pattern
Dimension Snowfall Dry Cargo Box
L (mm) 3160 | 4380 | 6250
W (mm) 1740 | 2000 | 2450
H (mm) 1650 | 1920 | 2300
Panel Type FRP + Honeycomb + FRP
Roof Panel 1.5mm + 18mm + 1.5mm
Front Panel 1.5mm + 18mm + 1.5mm
Wall Panel 1.5mm + 18mm + 1.5mm
Floor Panel 3mm Steel Checked Plate
Rear Door 1 pair of 20mm thick FRP plywood swing doors
Key Features
  • Light-weight design saves energy and reduces operational costs
  • High structural strength and durability
  • Water-proof and flame-retardant properties
  • Excellent weather resistance, moisture protection, and anti-aging
  • Superior shock absorption capabilities
  • Easy to fabricate and assemble
  • Effective sound insulation
  • Colorful and decorative appearance options
  • Environmentally friendly materials
  • Low electrical and thermal conductivity
Custom sizes available from 2m to 9m. Please specify detailed requirements for custom orders.
