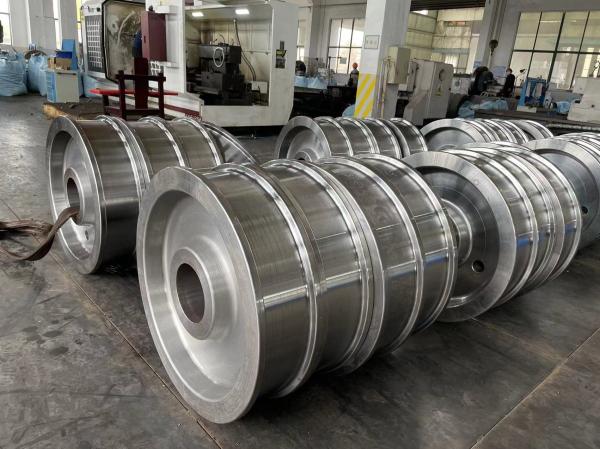

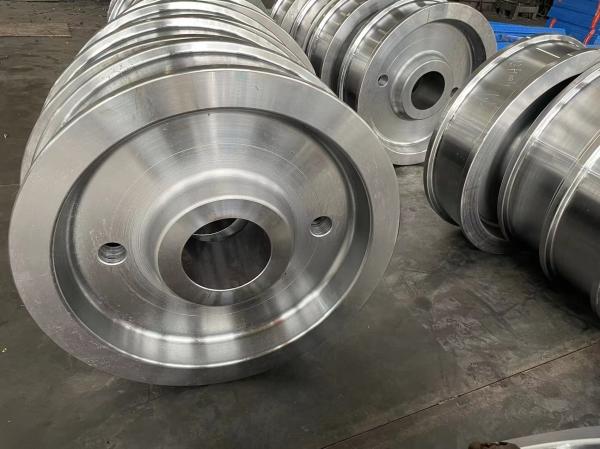

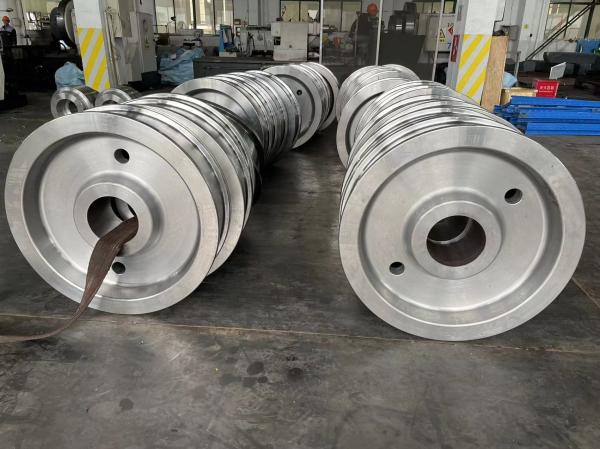

42CrMo Open die forging 500-1100mm Diameter Crane Wheels. Our 42CrMo alloy steel crane wheels, forged using the open die process, are designed for heavy-duty applications in port handling, lifting systems, and industrial cranes. With diameters ranging from 500mm to 1100mm, these wheels offer outstanding load-bearing capacity, wear resistance, and impact strength, making them ideal for continuous operation in demanding environments.

Forged from high-quality 42CrMo, the wheels undergo quenching and tempering to achieve optimal mechanical performance and dimensional stability.

Key Features:

• Material: 42CrMo alloy steel

• Diameter Range: 500mm – 1100mm

• Forging Method: Open die forging + rough machining

• Heat Treatment: Quenched and tempered for high strength and toughness

Applications:

• Port gantry cranes (STS, RTG, RMG)

• Overhead cranes and hoisting systems

• Rail-based transport and transfer systems

• OEM replacements for brands such as ZPMC, Konecranes, etc.

Advantages:

• Uniform grain structure and high load resistance

• Long service life with low maintenance

• Custom bore size, keyway, and hub configurations available

• Ultrasonic tested, dimensionally verified, and fully traceable

Our laboratory testing equipment includes:

Spectral Component Analyzer – for chemical composition analysis

Hydraulic Universal Testing Machine – for tensile and yield strength testing

Impact Strength Testing Machine with Cryogenic Tank – for room temperature and low-temperature impact testing

Brinell & Rockwell Hardness Testers – to assess surface and core hardness

Ultrasonic Flaw Detector – for internal defect detection (UT)

Metallurgical Microscope – for grain structure and heat treatment evaluation

Program-Controlled Box Furnace – for heat treatment simulations and metallurgical testing

Forging process flow quality control:

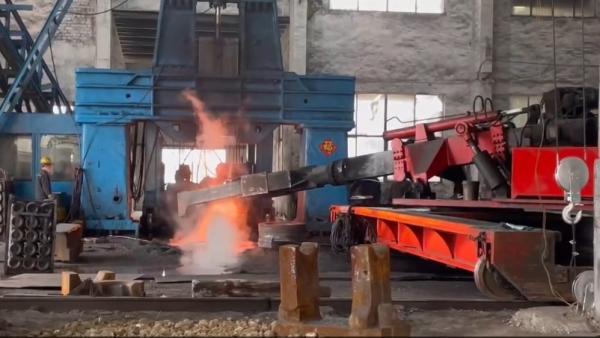

Raw material steel ingot into warehouse(test the chemical composition) → Cutting→ Heating(Furnace temperature test) → Heat treatment after forging(Furnace temperature test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal dimension, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment.

Frequently Asked Questions (FAQs)
1. What is your forging weight range?
We produce forged parts ranging from 100 kg to 7000 kg.

2. Do you provide heat treatment and machining?
Yes, we offer full in-house heat treatment, rough, and finish machining services.

3. Which industries do you supply to?
We serve wind energy, heavy equipment, port machinery, transmission systems, and more.

4. What is your production lead time?

With stock: Around 30 days

Without stock: 40–45 days

5. Where is your factory located?
In Changzhou City, near Shanghai, with shipping via Shanghai Port.

Request a Quote
Please send your technical drawings and requirements to us. Our engineers will review and provide you with a professional quotation and solution shortly.
