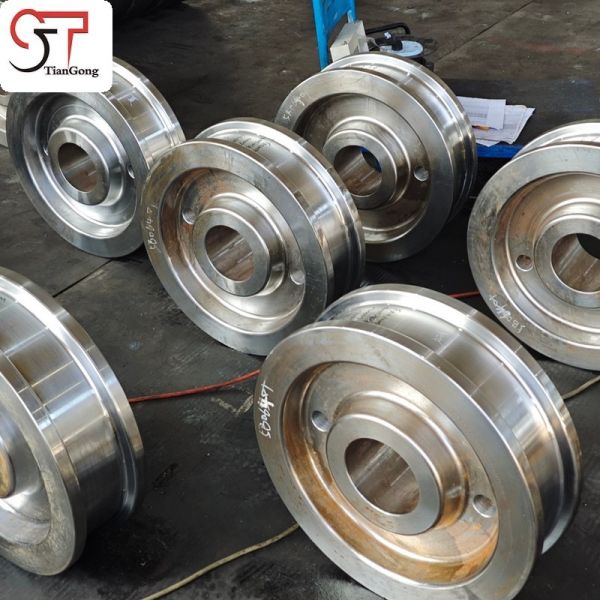

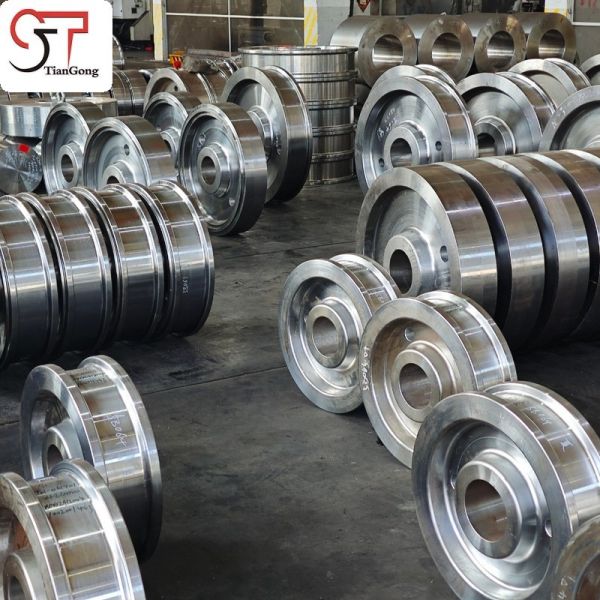

Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment
Specifications
Brand Name :
Tiangong
Model Number :
TG-227
Certification :
ISO9001, ISO14001,ISO45001
Place of Origin :
Changzhou, China
MOQ :
1
Price :
USD1000-USD3000/piece
Payment Terms :
,T/T
Supply Ability :
56000 Tons per year
Delivery Time :
30 days
Packaging Details :
Pallet
Material :
Medium-high carbon steel
High Light :
Mature technology,High-quality raw materials
Heat Treatment :
QT，N+T
Forging Tolerance :
±0.5mm
Testing :
UT
Oil Protecting :
Yes
Hardness :
Customizable
Apply :
Port machinery related crane wheels
Description

Large-Diameter Crane Guide Wheels for Container Stacker Vertical Alignment

Large-Diameter Crane Guide Wheels are specialized components designed to ensure precise vertical alignment and stable guidance in container stacker systems. These wheels play a critical role in maintaining the vertical posture and operational accuracy of container handling equipment during lifting, stacking, and positioning operations.

Product Features:

  • Large-diameter design ensures enhanced stability and reduced deflection during vertical guidance

  • Precision-machined rolling surfaces for smooth operation and minimized vibration

  • High-strength steel construction with reinforced flange structure for long-term durability

  • Corrosion-resistant surface treatment suitable for port and outdoor environments

  • Customizable mounting configurations for different guide rail systems

Application Fields:

  • Container stacker cranes in port terminals and intermodal yards

  • Rail-mounted gantry cranes (RMG) for container handling

  • Automated container storage and retrieval systems (ASRS)

  • Ship-to-shore (STS) crane vertical guidance systems

  • Port logistics equipment requiring precise vertical alignment control

Item
Details
Material
Medium-high carbon steel (e.g., 1045, 1055) – Chosen for an optimal balance of strength, toughness, and wear resistance to withstand the high vertical loads and guide rail contact stresses during container stacker operations.
Design Feature
Large-diameter profile with deep flange – The increased diameter provides superior stability and resistance to tipping, while the deep, precisely-contoured flange ensures secure engagement with the vertical guide rail, maintaining perfect stacker alignment.
Main Application
Exclusively engineered for the vertical alignment systems of container stackers and Rail-Mounted Gantry Cranes (RMGs) – Critical for ensuring straight, precise vertical travel in port terminals, intermodal yards, and automated storage facilities.
Production Process
Forging (for core strength) → Precision machining → Heat treatment (flange hardening) – Forging ensures a defect-free core, while subsequent processes achieve the exact geometry and localized hardness needed for reliable guide rail contact.
Inspection Focus
Flange profile accuracy, surface hardness mapping, and non-destructive testing (MT/PT) – Rigorous checks ensure the flange geometry perfectly matches the guide rail, hardness is consistent, and no surface cracks exist to compromise safety.
Service Package
Tiangong provides application-specific design consultation, batch production with strict traceability, and comprehensive technical documentation – Ensures seamless integration into container stacker alignment systems and compliance with port equipment standards.
