Specifications
Brand Name :
FRD
Model Number :
FD3051ST
Certification :
CE/ SIL/ ATEX/ IP68/ IP66
Place of Origin :
China
Range :
0-0.1kPa～40MPa
Accuracy :
±0.05%FS, ±0.075%FS, 0.1%FS, 0.2(0.25)%FS, 0.5%FS (at 25℃, full scale)
Output signal :
Two-wire system (4～20)mA with superimposed digital protocol (HART), RS485 protocol
Process Medium :
Liquids, gases, or steam
Power Supply :
(12～32)VDC (24VDC recommended)
Warranty Period :
12 months
Description

Intelligent Monocrystalline Silicon Pressure Transmitter High-Precision High Stable Industrial Pressure Measurement

Product Description

Monocrystalline silicon pressure transmitters: high-precision, stable, multi-parameter, HART-compliant. With latest sensor digital tech and advanced silicon core, they offer digital temperature compensation and nonlinear correction. 5-digit LCD, standard signal output for on-site/control room use. Explosion-proof, wide range, ideal for precise fluid pressure measurement. Compatible with HART375/475; EMI meets IEC801.

Features
  • Wide range coverage: measures gauge/absolute/negative pressure
  • Complies with GB3836; explosion-proof certified
  • Sensor with digital compensation & nonlinear correction
  • Digital circuit design; on-site button zeroing
  • IP65 protection for harsh field/outdoor environments
  • High adjustable range ratio 100:1
  • Fiber laser marking; sleek, precise appearance
  • High accuracy 0.075%F.S
Products Parameters
Range 0-0.1kPa～40MPa
Accuracy ±0.05%FS, ±0.075%FS, 0.1%FS, 0.2(0.25)%FS, 0.5%FS (at 25℃, full scale)
Output Signal Two-wire system (4～20)mA with superimposed digital protocol (HART), RS485 protocol
Process Medium Liquids, gases, or steam
Power Supply (12～32)VDC (24VDC recommended)
Ambient Temperature (-40～80)℃
Stability 0.1%URL/3 years
Applications
  1. Precision Pressure Measurement of Fluids (Liquids, Gases, Steam)
  2. Liquid Flow Rate Measurement (Used with Side Pressure Taps on Pipelines)
  3. Gas Process Pressure Measurement (Used with Top/Side Pressure Taps on Pipelines)
  4. Tank Liquid Level Monitoring (Lowest Level ≥50mm Above High-Pressure Flange Diaphragm Center)
  5. On-Site Pressure Monitoring in Harsh Environments (Fields/Open Air, IP65 Protection)
  6. Pressure Measurement of Corrosive, Viscous or Precipitating Media (With Specialized Diaphragm Materials & Structures)
  7. Pressure Monitoring in Strong Electromagnetic Interference Environments (Isolator Optional)

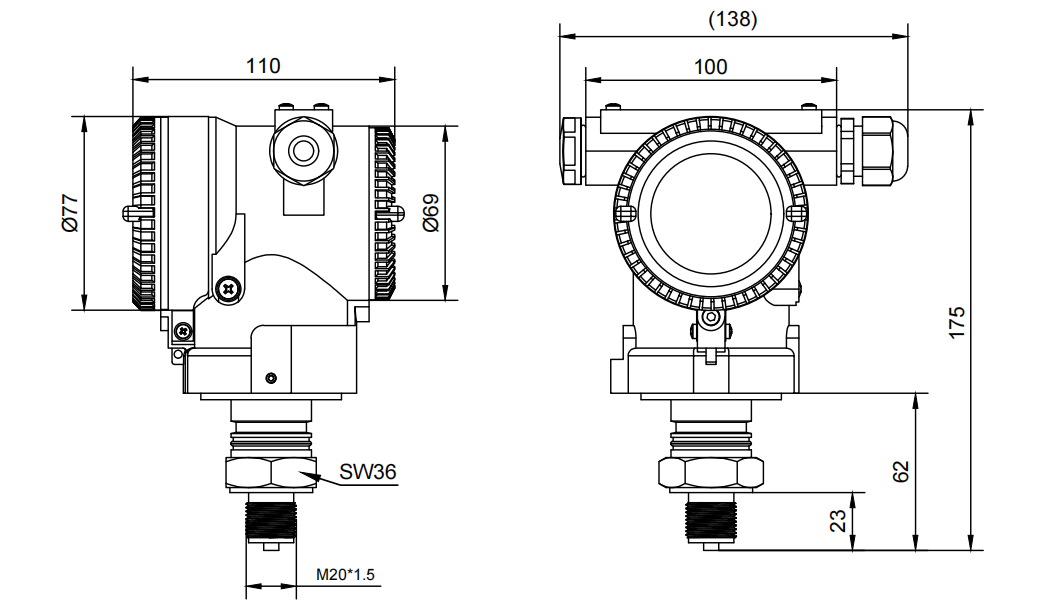

Product Drawing
High Stable Industrial Pressure Transmitter Intelligent Explosion Proof GB3836

Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.

Packing and Shipping
High Stable Industrial Pressure Transmitter Intelligent Explosion Proof GB3836
High Stable Industrial Pressure Transmitter Intelligent Explosion Proof GB3836
FAQ
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 5 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide ODM/OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
