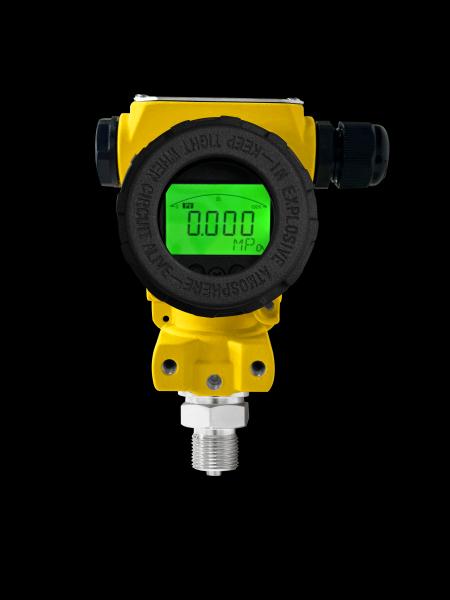

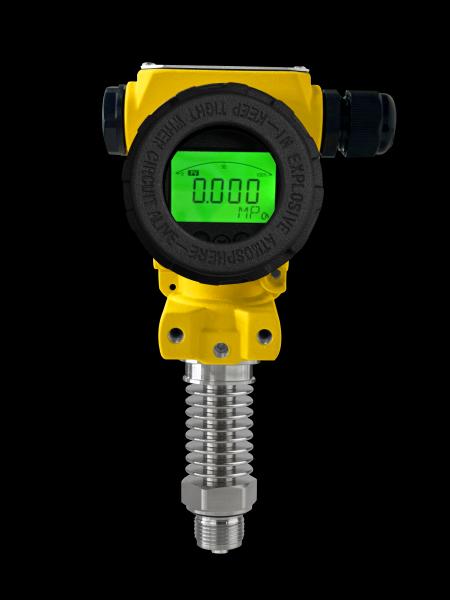

FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
Specifications
Brand Name :
FRD
Model Number :
FD80B
Certification :
IP65
Place of Origin :
China
Description

FD80B universal explosion-proof pressure transmitter adopts advanced piezoresistive sensing technology and digital circuit to accurately measure fluid pressure. It features explosion-proof, waterproof and anti-interference performance, supports HART communication, adapts to harsh industrial environments, and is the preferred equipment for industrial automatic pressure monitoring.

Features
  • Accurate digital measurement: Built-in professional circuit, laser resistance adjustment and temperature compensation.
  • Diversified signal output: Support 4-20mA two-wire system, HART and RS485 communication.
  • High safety explosion-proof grade: Ex ia IIB T4 Gb certification, suitable for explosive gas environment.
  • Strong environmental adaptability: Working temperature -20℃~70℃, shockproof, moisture-proof and corrosion-resistant.
  • Low maintenance: Small size, lightweight, maintenance-free design, save operation cost.
  • Strong anti-interference and high long-term stability.
Products Parameters
Range 0-5kPa~260MPa
Accuracy 0.1%F.S, 0.25%F.S, 0.5%F.S (optional)
Pressure Type Gauge Pressure
Power Supply 10V~30V DC (24V DC recommended)
Output Signal 4mA~20mA DC, 1V~5V DC, RS485, etc. (optional)
Communication Protocols MODBUS RTU Protocol, HART Protocol
Long-term Stability 0.2%F.S/year
Operating Temperature -20℃~70℃
Electrical Connection M20*1.5(F) standard, custom options available
Protection Rating IP65
Warranty Period 12 months
Applications
  • Industrial process control: Pressure closed-loop control for metallurgy, building materials and light industry.
  • Oil & gas exploitation: Real-time pressure monitoring of drilling platforms and oil transmission pipelines.
  • Food & medical industry: Pressure detection of food processing and medical equipment.
Product Drawing
FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
Packing and Shipping
FD80B Universal Explosion-proof Pressure Transmitter Multi-scene Pressure Sensor
FAQ

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: How long is the delivery time for the product?

A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 7 working days.

Q: How do you control your quality ?

A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q: Can you provide ODM/OEM & Customized service?

A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
