High Accuracy Industrial Tank Level Measurement Transmitter
High Accuracy Industrial Tank Level Measurement Transmitter
High Accuracy Industrial Tank Level Measurement Transmitter
High Accuracy Industrial Tank Level Measurement Transmitter
High Accuracy Industrial Tank Level Measurement Transmitter
High Accuracy Industrial Tank Level Measurement Transmitter
Specifications
Brand Name :
FRD
Model Number :
FD3051LT
Certification :
SIL/ IP66/ IP68
Place of Origin :
China
MOQ :
1piece
Price :
USD 50-200/piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Production output can be flexibly adjusted according to order quantity.
Delivery Time :
5-8 work days
Packaging Details :
Carton Package/Wooden Crate Package
Range :
0-0.5m ~ 50mH₂O
Accuracy :
0.1%F.S; 0.25%F.S; 0.5%F.S (Optional)
Output Signal :
4mA ~ 20mA DC, 1V ~ 5V DC, RS485, etc. (optional)
Quantity ratio :
40:1
Long-term Stability :
0.1% F.S per year
Warranty Period :
12 months
Description

High-Precision Industrial Level Measurement Transmitter

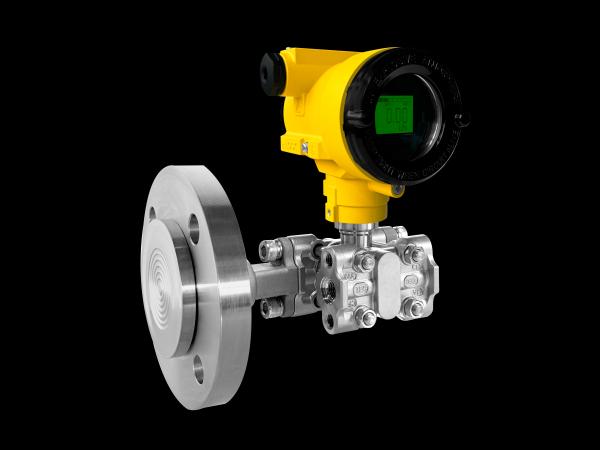

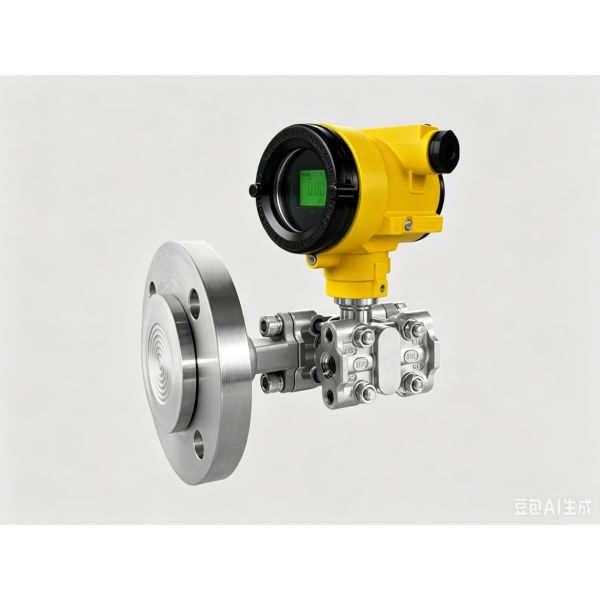

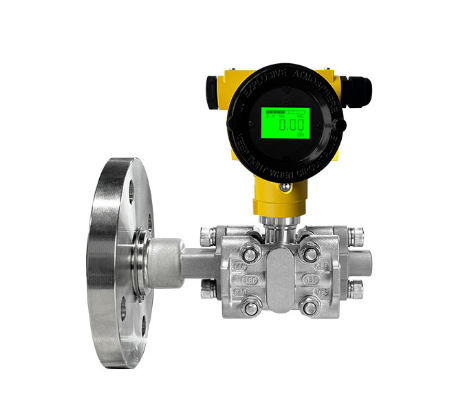

The 3051LT Single Flanged Transmitter is a high-precision intelligent measurement and control device designed for industrial liquid level measurement. Adopting monocrystalline silicon sensor core and 316L stainless steel wetted parts, with integrated single flange structure, it can accurately measure liquid level, differential pressure and density in tanks, storage tanks and reactors, featuring stable performance and long-term durability, suitable for various harsh and complex working conditions.

Features
  • High measurement accuracy: overall accuracy up to ±0.075%FS, low temperature drift and zero long-term drift
  • Robust durable structure: 316L stainless steel diaphragm and housing, corrosion and impact resistance
  • Excellent protection performance: IP68 high protection rating, waterproof and dustproof, suitable for long-term outdoor installation
  • Intelligent communication support: compatible with HART protocol, convenient remote debugging, calibration and parameter reading
  • Reliable supply capacity: flexibly adjustable production capacity, stable delivery for bulk orders with controllable lead time
  • Explosion-proof certification: compliant with industrial explosion-proof standards, safe for hazardous flammable and explosive areas
  • The sealing surface is fully covered by a diaphragm, making it suitable for level measurement of media such as high-temperature and strong-corrosion substances.
Products Parameters
Range 0-0.5m ~ 50mH₂O
Accuracy 0.25% F.S, 0.5% F.S (optional)
Long-term Stability 0.1% F.S per year
Output Signal 4mA ~ 20mA DC, 1V ~ 5V DC, RS485, etc. (optional)
Communication Protocols MODBUS RTU Protocol, HART Protocol
Power Supply 12V ~ 32V DC (24V DC power supply recommended)
Ambient Temperature -20℃ ~ 80℃
Medium Temperature -40℃ ~ 200℃, 30℃ ~ 300℃ (optional)
Range Ratio 40:1
Long-term Stability 0.1% F.S per year
Electrical Interface Standard type M20*1.5(F), special types customizable
Explosion-proof Class Ex ia II C T6 Ga; Ex d II C T6 Gb; Ex tD A21 IP66 T80℃
Warranty Period 12 months
Applications
  • Petroleum & chemical industry: continuous liquid level monitoring of oil tanks and acid-base storage tanks
  • Water treatment & environmental protection: liquid level measurement and control of sewage tanks, water plants and chemical tanks
  • Power & metallurgy: liquid level measurement of boiler drums, condensate tanks and metallurgical silos
  • Food & pharmaceutical industry: precise liquid level control for sanitary working conditions and liquid raw material tanks
  • Marine & port industry: long-term liquid level monitoring of large liquid cargo tanks and shore-based storage tanks
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
FAQ

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: How long is the delivery time for the product?

A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 10 pcs, the delivery time is approximately 2 to 7 working days.

Q: How do you control your quality ?

A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q: Can you provide ODM/OEM & Customized service?

A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
