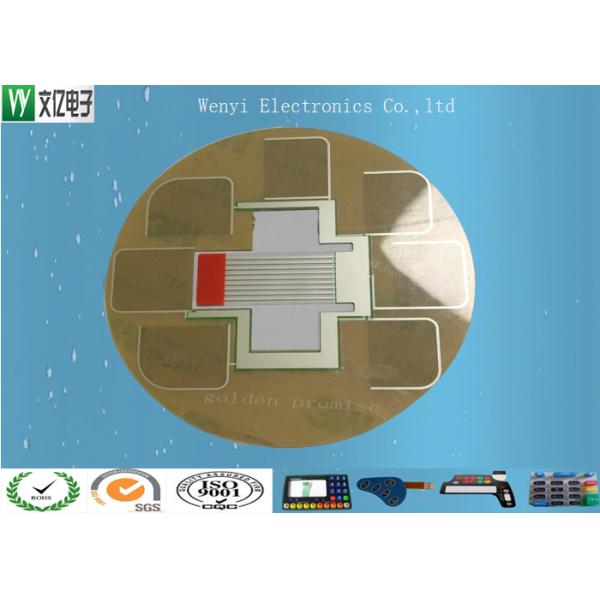

Round PET Circuit Embossing Membrane Switch 0.5mm Pitch ZIF Wirelead Multi - Keys
Round PET Circuit Embossing Membrane Switch 0.5mm Pitch ZIF Wirelead Multi - Keys
Round PET Circuit Embossing Membrane Switch 0.5mm Pitch ZIF Wirelead Multi - Keys
Round PET Circuit Embossing Membrane Switch 0.5mm Pitch ZIF Wirelead Multi - Keys
Specifications
Brand Name :
Wenyi Electronics
Model Number :
GPI-FMS-035
Certification :
RoHs, SGS, ISO9001
Place of Origin :
Made in China
MOQ :
10 pcs / lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5,000,000 pcs / Months
Delivery Time :
10-12 working days
Packaging Details :
ploybag for each, then in carton box
Circuit type :
PET flexible Cirucit
Embossing :
embossing
Back adhesive :
3M 300 LSE
Life Span :
no less than 1 Million operation Times
Dome Type :
Metal Dome
Pitch :
0.5mm Pitch
Description

Emboss Type Membrane Switch Pad Touch Screen Switch Panel 0.175mm PC Overlay

Item description:

0.175mm PC Overlay 6 SMT LED Metal Dome Embossing Membrane Switch

Circuit type: 0.1mm Flexible PET Silver Ink

Special Point: Metal Dome

Touch force: 300g

Backadhesive: 3M 300 LSE

Connetor: ZIF Connector

Pitch: 0.5 mm

Defect rate: less than 0.5%

Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time

Product Characters:

  1. PC0.175mm Overlay.
  2. PC/PET Textured surface or Glossy
  3. Waterproof Available.
  4. Color keys screen print or Digital Print are available
  5. Withstand millions of cycles
  6. Perfect exterior, with various treatment
  7. Stable in quality: defect rate less then 5 pcs out of 1000 pcs
  8. 100% true brand material

Our Advantage:

  1. Strong R&D capability for various industrial use membrane switch
  2. Low cost and competitive price
  3. Short Lead time for samples and Mass production 8-14 working days.
  4. Advanced Equipment and Technolodgy.
  5. Over 13 years experience in the industry.
  6. Professional manufacturer.

Technical Specification:

Mechnical Data:
⒈ Reliable Life Span: 　　>1 million operation times
⒉ Closed displacement: 　0.1~0.4mm(Notactile type)
　　0.4~1.0mm ( tactile type)
⒊ Touch Force: 　　15~750g
⒋ Silver Paste Resistance Change Rate: 　　 at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC
5. Exterior for Circuit 　No oxidation , no impurity
6.Circuit width and Technical request 　　Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.
⒎Wire lead Pitch: 　0.3,0.5,0.8,1.0, 1.25, 2.0, 2.54, 2.50, 1.27, 1.25, 5.08 mm
⒏ wire lead anti-curve rate 　test with d=10mm steel Roller with 80times, no breakage

Keyp Content None tactile Tactile
Contact Rating: 30 DVC maximum,100mA maximum, 1 watt maximum 30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance Less than 100 OHMS typical Less than 100 OHMS typical
Life Cycles >2,000,000 >1,000,000
Storage Tem -40°C to 65°C -40°C to 65°C

Round PET Circuit Embossing Membrane Switch 0.5mm Pitch ZIF Wirelead Multi - Keys
