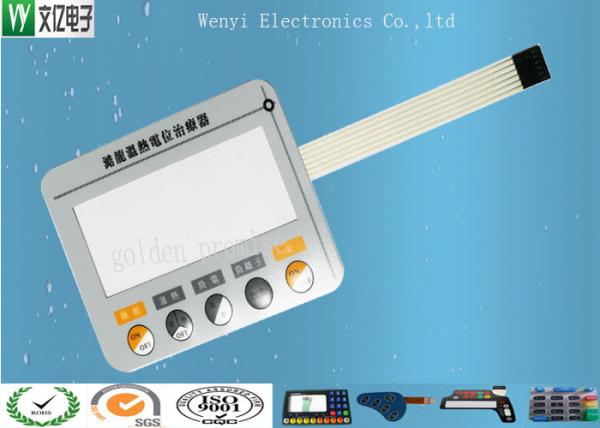

Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Specifications
Brand Name :
Wenyi Electronics
Model Number :
GPI-FMS-033
Certification :
RoHs, SGS, ISO9001
Place of Origin :
Made in China
MOQ :
10 pcs / lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5,000,000 pcs / Months
Delivery Time :
10-12 working days
Packaging Details :
ploybag for each, then in carton box
Circuit type :
PET flexible Cirucit
Embossing :
embossing

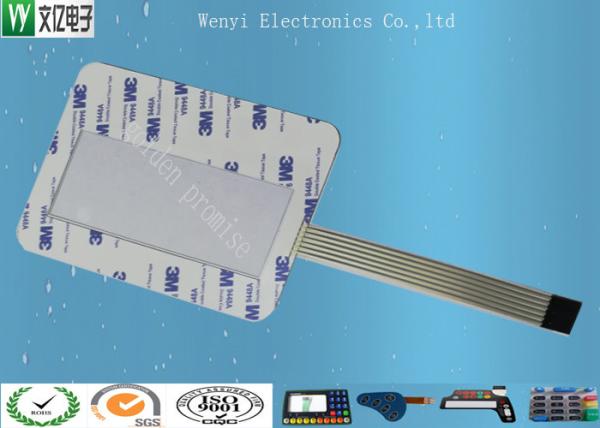

Back adhesive :
3M 9448 A
Life Span :
no less than 1 Million operation Times
Overlay :
PET 0.175mm
Dome Type :
Metal Dome
Description

Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof

Item description:

0.175mm PET Overlay Poly Dome Multi- Keys Embossing Membrane Switch

Circuit type: 0.1mm Flexible PET Silver Ink

Special Point: Poly Dome

Touch force: 300g

Backadhesive: 3M 300 LSE

Connetor: ZIF Connector 8Pin

Defect rate: less than 0.5%

Guarantee: 1 year quality Guarantee for all customers

Product Characters:

  1. PET 0.175mm Overlay.
  2. PC/PET :High Glossy , Glossy
  3. Waterproof Available. IP54,IP67
  4. Color keys screen print or Digital Print are available
  5. Withstand millions of cycles
  6. Perfect exterior, with various treatment
  7. Stable in quality: defect rate less then 5 pcs out of 1000 pcs

Our Advantage:

  1. Strong R&D capability for various industrial use membrane switch
  2. Low cost and competitive price
  3. Short Lead time for samples and Mass production 8-14 working days.
  4. Advanced Equipment and Technolodgy.
  5. Over 13 years experience in the industry.
  6. Professional manufacturer with experienced employee

Technical Specification:

⒈ Voltage: 　　≤50VDC
2.Currency 　　≤100mA
⒊contact Resistance: 　　0.5~10Ω
⒋Insulution resistance: 　　≥100MΩ(100VDC)
⒌ Base Material withstand Voltage : 　　2kDVC
⒍ Snap back time: 　　≤6ms
⒎Loop resistance: 　50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage : 　100VDC
Mechnical Data:
⒈ Reliable Life Span: 　　>1 million operation times
⒉ Closed displacement: 　0.1~0.4mm(Notactile type)
　　0.4~1.0mm ( tactile type)
⒊ Touch Force: 　　15~750g
⒋ Silver Paste Resistance Change Rate: 　　 at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC
6.Circuit width and Technical request 　　Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.
⒎Wire lead Pitch: 　0.3,0.5,0.8,1.0, 1.25, 2.0, 2.54, 2.50, 1.27, 1.25, 5.08 mm
⒏ wire lead anti-curve rate 　test with d=10mm steel Roller with 80times, no breakage
Environment:
⒈Working Temperature: 　　－20℃～+70℃
　　⒉Stock Temperature:－40℃～+85℃ , Humidity within: 95%±5%
　　⒊Large air pressure:86～106KPa

Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
