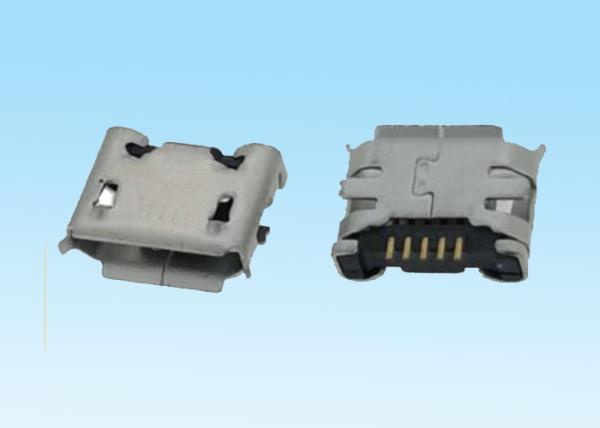

UL94 V-0 Material Micro USB Type C Connector Full SMT Type In Mobile Power Supply
UL94 V-0 Material Micro USB Type C Connector Full SMT Type In Mobile Power Supply
Specifications
Brand Name :
DALEE
Model Number :
DL50010317
Certification :
ROHS ,SGS, ISO9001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000KK/month
Delivery Time :
5-15 days
Packaging Details :
PE bag, Tube, Volume
Gender :
Female
type :
full SMT
Operating Temprature :
-30℃ - +80 ℃
Shield :
50mΩ /MAX
Durability :
10000 cycles
colour :
silver
Description

UL94 V-0 material micro 5 pin usb connector full SMT type in mobile power supply


Product Details:

Product name: DALEE USB Type-C Connector
Secification: 5 P
Type : Micro USB 5.65mm Curling edge column
Certification: ISO9001,UL,ROHS and the latest REACH
Total mating force: 3.57kgf Max
Total unmating force: 1.0 kgf Min
Durability: 10000 cycles
Current Rating: 1.0 A Max
Dielectric withstanding Voltage : 100 V for 1 min
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -30℃ - +80 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0



Material Specification:

1) Mid Plate: stainless steel
2) Housing: Hig Temperature resistant plastic,UL94 V-0.
3) Solder area: Au : G/F
4) Front shell : stainless steel

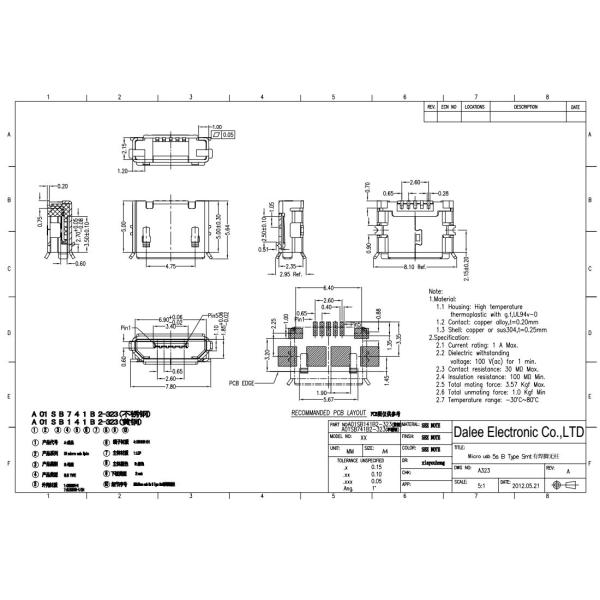

Drawing:

UL94 V-0 Material Micro USB Type C Connector Full SMT Type In Mobile Power Supply


Product Application:

1) Smart Lock.
2) Charging wires / charger.
3) Mobile power supply.
4) Camera module.
5) Computer Peripheral Products.
6) action camera manual Mini Sport DV


Payment term and delivery:

1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.


Frequently Asked Question:

Q: How to place an Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q: How about samples ?
A:Samples is free,but you need to pay the freight charge.Please contact us for details.
