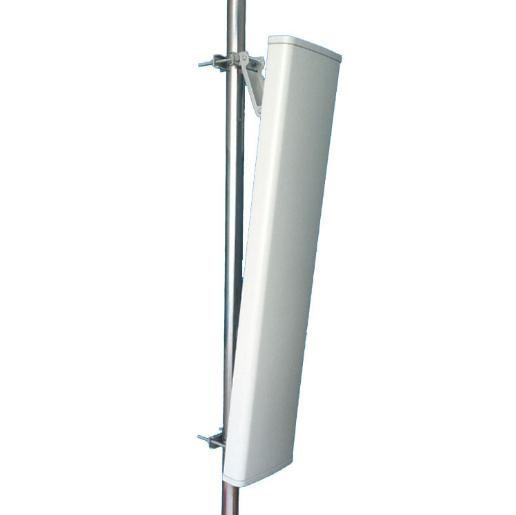

698-2700MHz 11~14dbi X Pol Base Station Directional Panel MIMO Antenna for CDMA/GSM/PCS/3G/WLAN/4G LTE system
698-2700MHz 11~14dbi X Pol Base Station Directional Panel MIMO Antenna for CDMA/GSM/PCS/3G/WLAN/4G LTE system
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-7027S-D1114L90
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
20
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag or EPE/inner box/master carton(safe export packaging) or others
Frequency range（MHz） :
698-2700MHz
Polarization :
±45º
Gain（dBi） :
11/14
VSWR :
≤2.0/1.5
Lightning protection :
DC Ground
Input connector type :
2*N Female
Mounting hardware（mm） :
￠35～￠90
Description

698-2700MHz 11~14dbi X Pol Base Station Directional Panel MIMO Antenna for CDMA/GSM/PCS/3G/WLAN/4G LTE system

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

CDMA/GSM/PCS/3G/WLAN/LTE system

Wireless communication and data transmission system

AMXP-7027S-D1114L90

Electrical Specifications
Frequency range 698～960 1710～2690
Polarization ±45º
Gain(dBi) 11 14
Half-power beam width(0°) H:90 V:30 H:90 V:15
Front-to-back ratio(dB) ≥25 ≥25
Input Impedance(Ω) 50
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
VSWR ≤2.0 ≤1.5
Maximum input power(W) 400 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2*N Female
Dimensions-mm (Height/Width/Depth) 1200*280*125
Packing size(mm) 1250*330*210
Antenna weight (kg) 9
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠90
