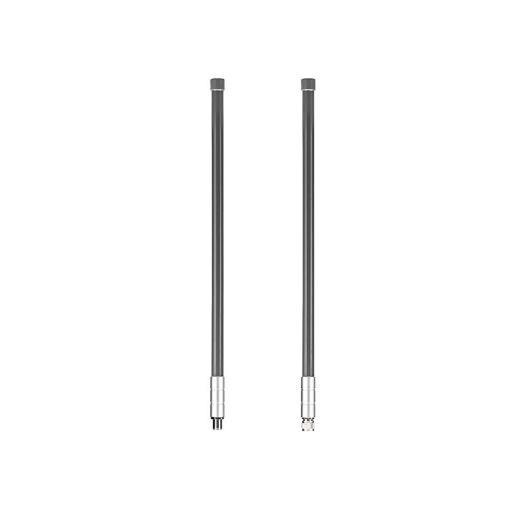

700-2700MHz 3dbi All band 4G LTE Omnidirectional Fiberglass antenna
700-2700MHz 3dbi All band 4G LTE Omnidirectional Fiberglass antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-7027-4
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product Name :
4G LTE omni antenna
Frequency range（MHz） :
700～2700
Polarization :
Vertical
Gain（dBi） :
3~4
V.S.W.R. :
≤1.5
Input connector type :
N type
Dimensions-mm (Height/Width/Depth) :
Φ20*325
Description

700-2700MHz 3dbi 4G LTE Omnidirectional Fiberglass antenna

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2G,3G,DCS,PCS,LTE system

Point-to-multipoint system

AMXF-7027-4

Electrical Specifications
Frequency range(MHz) 698-960 1710-2700
Gain(dBi) 3 4
VSWR ≤3.0 ≤2.5
Half-power beam width(°) H:360 V:35
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*325
Antenna weight(kg) 0.20
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
