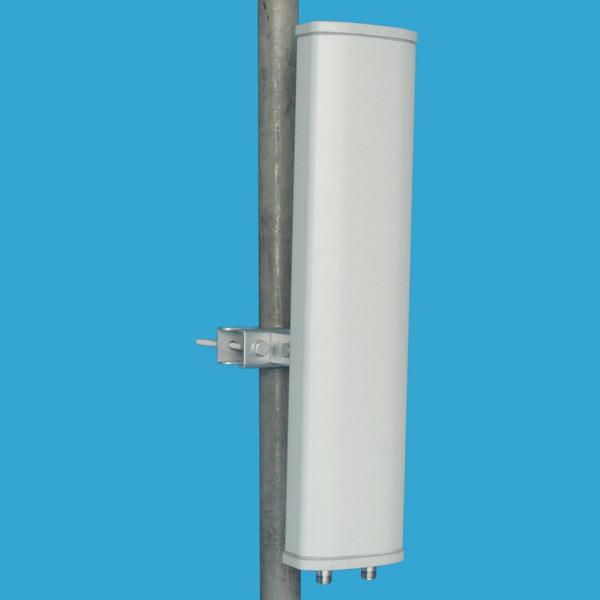

AMEISON 3.5GHz 15dBi Vertical Polarity Wimax Base Station Antenna Directional Panel Antenna 120 Degree
AMEISON 3.5GHz 15dBi Vertical Polarity Wimax Base Station Antenna Directional Panel Antenna 120 Degree
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-3500V-D15L120
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
3400～3600
Polarization :
Vertical
Gain（dBi） :
15
VSWR :
≤1.5
Lightning protection :
DC Ground
Input connector type :
N Female
Description

AMEISON 3.5GHz 15dBi Vertical Polarity Wimax Base Station Antenna Directional Panel Antenna 120 Degree​

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

3.5 GHz wireless access coverage

AMXP-3500V-D15L120

Electrical Specifications
Frequency range(MHz) 3400～3600
Polarization Vertical
Gain(dBi) 15
half-power beam width(°) H:120 V:7
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type N Female
Dimensions-mm (Height/Width/Depth) 760*114*54
Packing size(mm) 800*155*145
Antenna weight (kg) 3.6
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67
Mounting way pole-holding
Mounting hardware(mm) ￠35～￠75
