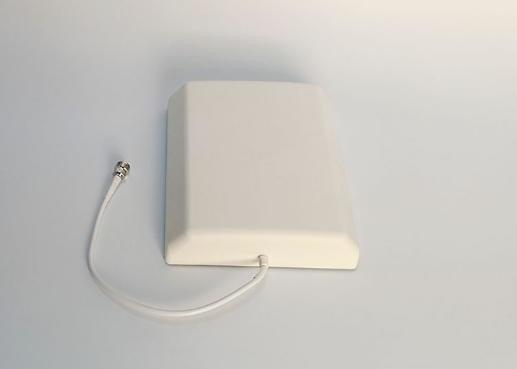

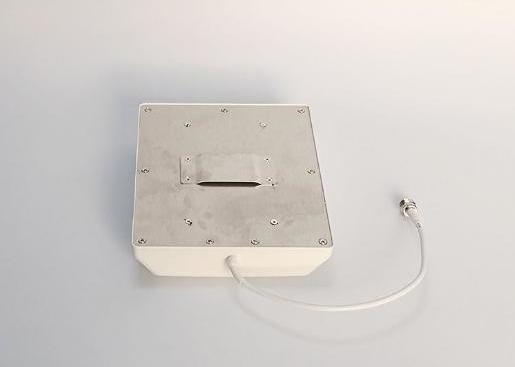

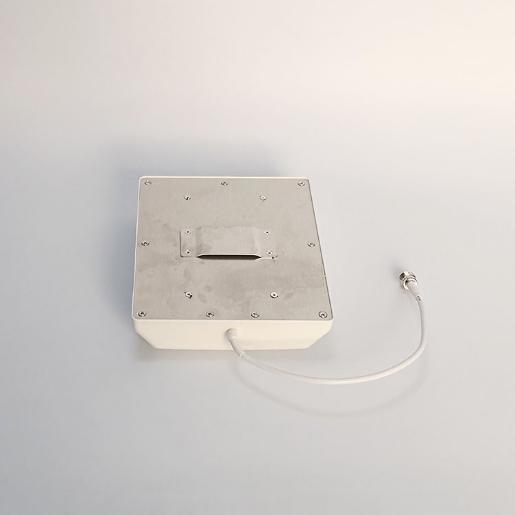

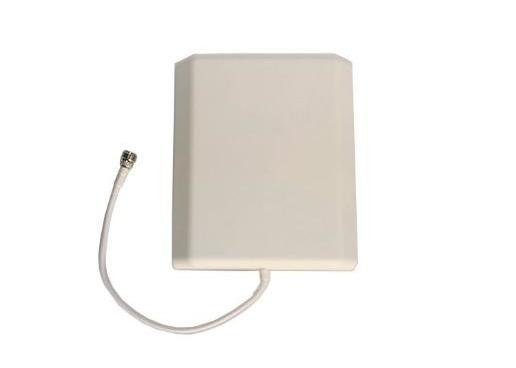

806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-8090-7
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range(MHz) :
806~960
Polarization :
Vertical
Gain(dBi) :
7
VSWR :
≤1.5
Input connector type :
N Female or request
Dimensions-mm (Height/Width/Depth) :
210*180*45
Description

806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna

This antenna is a vertical polarized panel antenna that provides reception and transmission of signals in 806-960 MHz frequency UHF GSM RFID band. With high efficiency and performance and good VSWR. Used for indoor envirement and the mount way is wall mounting.

806-960 MHz 7dBi Vertical Polarized Directional Indoor Panel Antenna GSM UHF RFID Wall Mount Panel Antenna

Feature:

Vertical polarized

Good performance

High gain and Low VSWR

806-960Mhz UHF GSM System

Cost effective

Application:

Warehouse

Distribution Center

Airport and Hospitals

Subway

Product Details

AMXW-8090-7

Electrical Specifications
Frequency range(MHz) 806~960
Bandwidth(MHz) 154
Gain(dBi) 7
Half-power beam width(°) H:70 V:55
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type N Female or others
Connector position Bottom cable 300MM
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 210*180*45
Antenna weight(kg) 0.57
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Mounting way Wall-mounted
