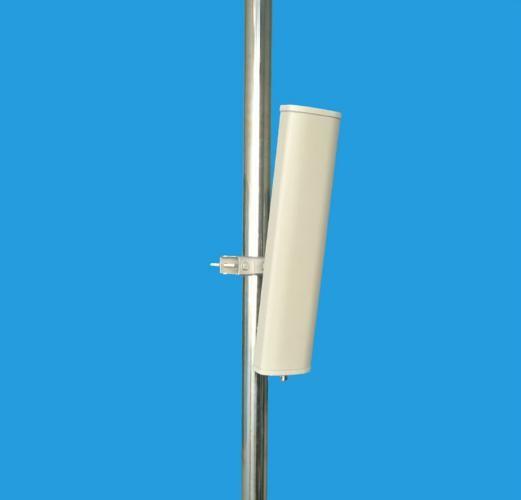

AMEISON 5100-5850MHz 18dBi Directional Sector Panel 5Ghz WIFI Antenna Vertical Polarization
AMEISON 5100-5850MHz 18dBi Directional Sector Panel 5Ghz WIFI Antenna Vertical Polarization
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-5158V-D18L65
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
5100～5850
Polarization :
Vertical
Gain（dBi） :
18
VSWR :
≤1.7
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
N Female
Description

AMEISON 5100-5850MHz 18dBi Directional Sector Panel 5Ghz WIFI Antenna Vertical Polarization

Feature:

High gain

Full day working

Optimized dimension

Polarization:Vertical or horizontal

Application:

5.1 GHz～5.8 GHz WLAN system

5.1 GHz～5.8 GHz ISM frequency band

Public wireless hot spot coverage

AMXP-5158V-D18L65

Electrical Specifications
Frequency range(MHz) 5150～5850
Polarization Vertical
Gain(dBi) 18
half-power beam width(°) H:65 V:7
Front-to-back ratio(dB) ≥23
Input Impedance(Ω) 50
VSWR ≤1.7
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type N Female
Dimensions-mm (Height/Width/Depth) 580*114*54
Packing size(mm) 620*155*145
Antenna weight (kg) 3.0
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠90
