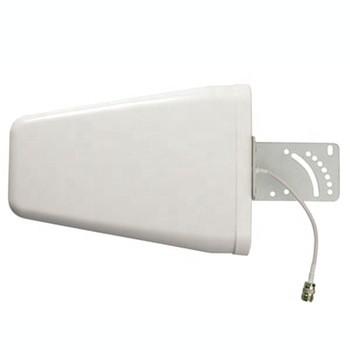

698-2700mhz 9dbi 3G 4G LTE Outdoor Directional Logarithmic Periodic Antenna
698-2700mhz 9dbi 3G 4G LTE Outdoor Directional Logarithmic Periodic Antenna
698-2700mhz 9dbi 3G 4G LTE Outdoor Directional Logarithmic Periodic Antenna
698-2700mhz 9dbi 3G 4G LTE Outdoor Directional Logarithmic Periodic Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXL-7027-9
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product name :
Logarithmic Periodic Antenna
Frequency :
698-2700mhz
Gain :
9dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N female
Dimensions :
295*205*65
color :
White
Description

698-2700mhz 9dbi 3G 4G LTE Outdoor Directional Logarithmic Periodic Antenna

Feature:

Sealed with radome,good defense ability

Standard bundled pole installation accessories

Optimized dimension

Designed with broadband technology

Medium gain,low standing wave ratio

Application:

GSM/CDMA/PCS/3G/WLAN/LTE system

AMXL-7027-9

Electrical Specifications
Frequency range(MHz) 698～960/1710～2500
Bandwidth(MHz) 252/790
Gain(dBi) 8/9
Half-power beam width(°) H:90/70 V:60/55
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type N Female
Mechanical Specifications
Dimensions (mm) 295*205*65
Antenna weight(kg) 0.75
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Mounting hardware(mm)

￠35-￠50
