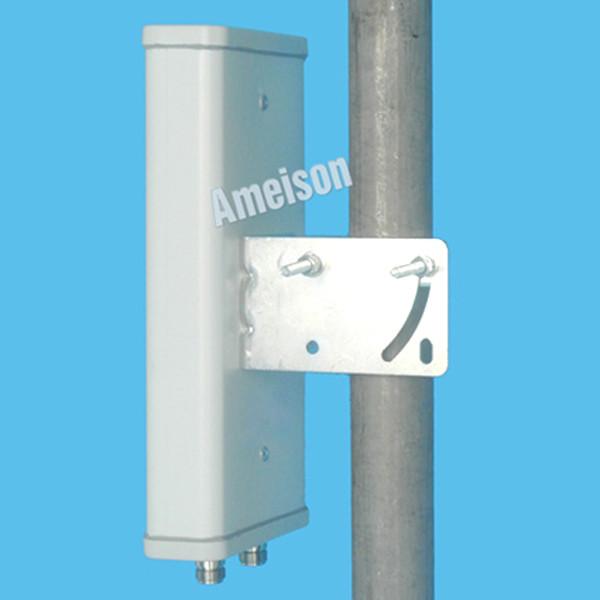

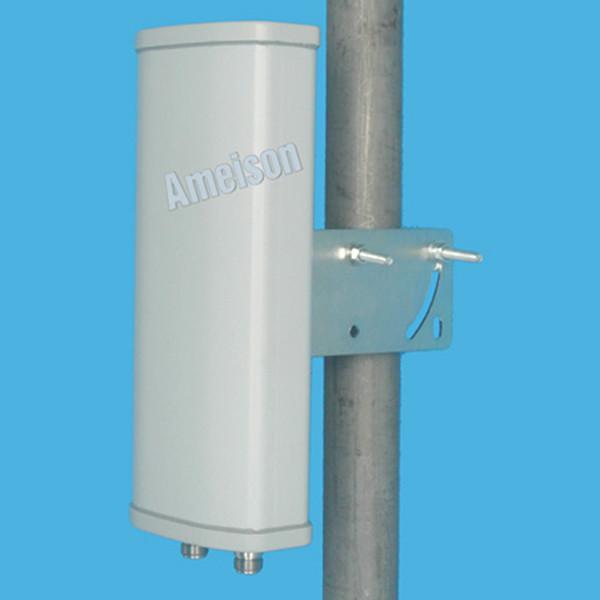

5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
5.1-5.8GHz 2x15dBi Dual Polarized Sector Panel Antenna with 2-N Female Connectors
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-5158VH-D15L65
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
5100～5850
Polarization :
Vertical and Horizontal
Gain（dBi） :
2×15
VSWR :
≤1.7
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
2-N Female
Mounting hardware（mm） :
￠35～￠50
Description

5.1-5.8 Ghz dual polarized sector panel antenna
Factory price
All weather operation
Included mounting kits

5100-5850MHz Directional Panel Antenna

AMXP-5158VH-D15L65

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

5.1 GHz～5.8 GHz WLAN system

5.1 GHz～5.8 GHz ISM frequency band

Public wireless hot spot coverage

AMXP-5158VH-D15L65

Electrical Specifications

Frequency range(MHz)

5100～5850

Polarization

Vertical and Horizontal

Gain(dBi)

2×15

half-power beam width(°)

H:65 V:14

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.7

Isolation between ports

≥28dB

Cross-polar ratio

≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon

15 dB

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

260*114*54

Packing size(mm)

300*130*110

Antenna weight (kg)

2.2

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

￠35～￠50
